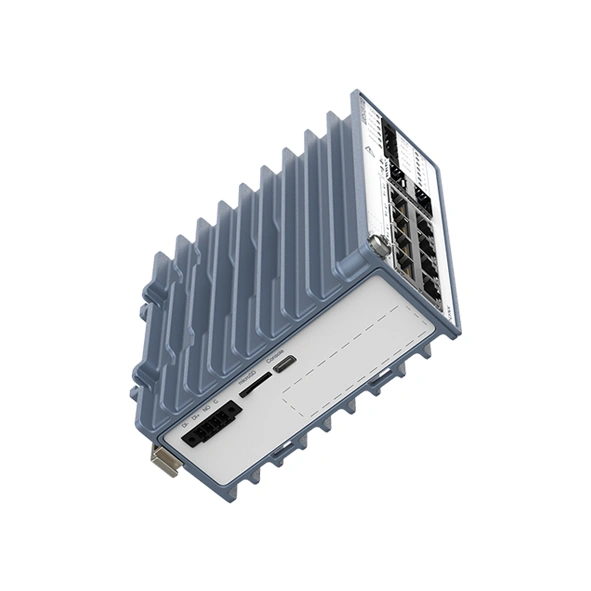

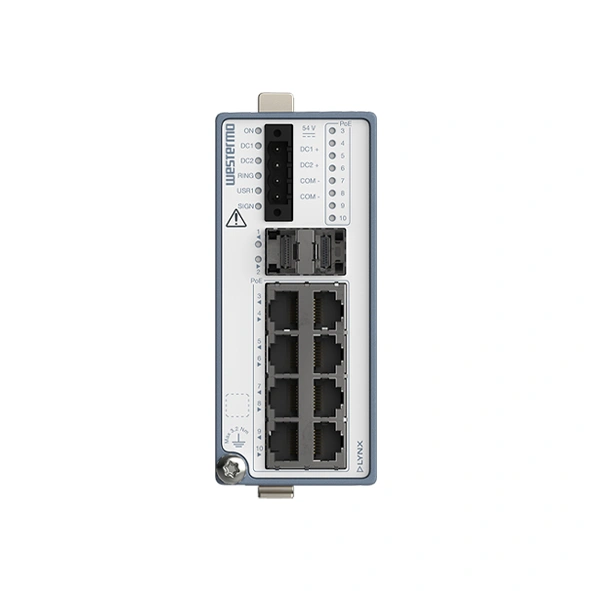

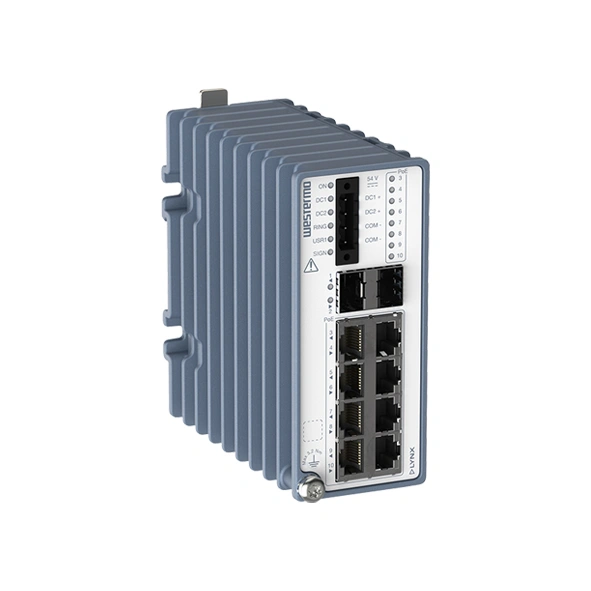

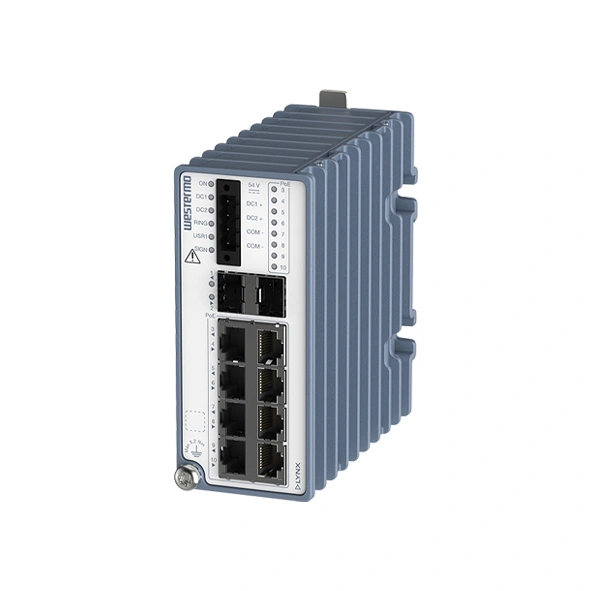

Name: Westermo Lynx-3510-E-F2G-P8G-LV-CC Managed Ethernet Switch
Brand: WESTERMO
SKU: 3627-1511

Westermo Lynx-3510-E-F2G-P8G-LV-CC Managed Ethernet Switch

Key Features:

Layer 3 functionality switching and routing
Conformal-coated for harsh environments
8 x 10/100/1000 Mbps PoE ports (RJ45 connector)
2 x 1 Gbit/s SFP fiber ports
Supports 802.3at/af (PoE+/PoE)
Ultra-robust IP40 metal housing
54 VDC Redundant power input
DIN-rail mount installation design
-40 to +70°C operating temperature range

Brand: WESTERMO
Model: 3627-1511

0 reviews • Write a review

ENQUIRE NOW

Add to Wish List Compare this Product

Datasheet

Operating Temperature (-40 to 70°C)
Relative Humidity (5% to 95% RH)
IP protection (IP40)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6, IEC 60068-2-64)

Marine
Railway Transportation
Factory Automation

$0.00

Ex Tax: $0.00

From Same Category
Same Brand

Quickview

Westermo Lynx 3510-E-F2G-P8G-LV Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo Lynx 3510-E-F2G2.5-P8G-LV Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo Lynx 3510-F2G-P8G-LV Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo Lynx 3510-F2G2.5-P8G-LV Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo Lynx-3510-E-F2G-P8G-LV-CT Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo Lynx-3510-F2G-P8G-LV-CC Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo Lynx-3510-F2G-P8G-LV-CT Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo PII-2G PoE Injector

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Lynx-3510-E-F2G-P8G-LV is a compact, high-performance managed industrial Ethernet switch and router for mission-critical OT networks. It includes 8 x 1 Gbit/s RJ-45 ports and 2 x 1 Gbit/s SFP ports.

Engineered for demanding environments, the device features a rugged, fanless IP40 full-metal housing and operates from -40 to +70 °C. Industrial-grade components and extensive environmental testing support high availability and a long service life. A conformal-coated variant is also available for added protection against moisture, dust, and corrosive contaminants in harsh environments.

Powered by WeOS, the device combines resilient Layer 2 switching with advanced Layer 3 routing and network segmentation. FRNT, RSTP and MRP support resilient topologies, while VLANs, QoS, multicast control and link aggregation help manage critical OT traffic. Static and dynamic routing enable communication between network segments and sites, while VRRP, VPN and stateful firewall capabilities support resilient, secure and controlled network architectures.

The 8 PoE-capable RJ-45 ports, including 8 PoE+ ports, deliver power and data over one cable. The total PoE power budget is up to 240 W. Advanced PoE management supports remote monitoring and control of connected devices.

Cybersecurity is built into the platform. Secure Boot verifies software integrity during startup, while the Trusted Platform Module (TPM) provides a hardware root of trust for cryptographic keys and sensitive data. VPN, stateful firewall, and IEEE 802.1X help protect routed communications and network access. Lynx-3510-E-F2G-P8G-LV is certified to IEC 62443-4-2 Security Level 2.

The compact DIN-rail design is suited to transportation, manufacturing, energy, smart cities, and other critical infrastructure applications requiring secure connectivity, high availability, and long-term reliability.

You can also find the Lynx-3510-F2G-P8G-LV-CC, Lynx-3310-E-F2G-T8-LV, and Lynx-3310-E-F2G-T8-LV-CC models in the Managed Ethernet Switches.

Experience the convenient way to purchase the Westermo Lynx-3510-E-F2G-P8G-LV-CC Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sales conditions for a wonderful buying experience.

switch and hub : Interface
Number of ports	10 Ports
10/100Mb RJ45 (Megabit) Ports	No
10/100/1000Mb RJ45 (Gigabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	Yes : 2 Ports
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	Yes : 8 Ports (RJ45 connector), 802.3at/af (PoE+/PoE)
Other ports	Yes : 1 x Console Port (USB-C, Emulates UART, 115200 bps), 1 x Micro SD slot (Secure Digital 2.0), 1 x Digital input channel, and 1 x Digital output channel (screw terminal connector)
switch and hub : Features and capabilities
Backup	No
switch and hub : LED Indicators
LED Per Port	No
switch and hub : Power Requirements
Input Current	max 4.8 A
Power Input Plugin ( Redundant )	Yes
Input Voltage	54 VDC
Operating Voltage	802.3at (PoE+): 53 to 57 VDC, 802.3af: 48 to 57 VDC
Power Consumption	-
switch and hub : General
Fan / Fanless	Fanless
MTBF	Telcordia: 638,000 hours, MIL-HBDK-217F: 583,000 hours
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	Layer 3
Switch type	Managed
Port Aggregation	Yes
switch and hub : Physical Characteristics
Dimensions	52 x 135 x 130 mm (2.05 x 5.31 x 5.12 inches)
Housing	Full metal
Installation	DIN-rail mounting
Operating Temperature	-40 to +70°C (-40 to +158°F)
Operation Humidity	5-95% relative humidity
Standards and Certifications	EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments; Trackside: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Marine: DNV rules for classification - Ships and offshore units; Security: IEC 62443-4-2, Security Level 2; Safety: EN/IEC/UL 61010-1, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements, EN/IEC/UL 61010-2-201, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-201: Particular requirements; Ingress protection: IP40; Corrosive gases: IEC 60068-2-60; Telcordia; MIL-HBDK-217F; Vibration: IEC 60068-2-6 (sine), IEC 60068-2-64 (random); Shock: IEC 60068-2-27
Storage Temperature	-40 to +85°C (-40 to +185°F)
Weight	1100 gr
switch and hub : Standards and protocols
Protocols and work standards	-
Protocols and management standards	Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Load/save files from/to external memory., Configuration and Deployment using external memory, Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote Syslog server), Port monitoring
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No

Datasheet

Westermo Lynx-3510-E-F2G-P8G-LV-CC Managed Ethernet Switch
