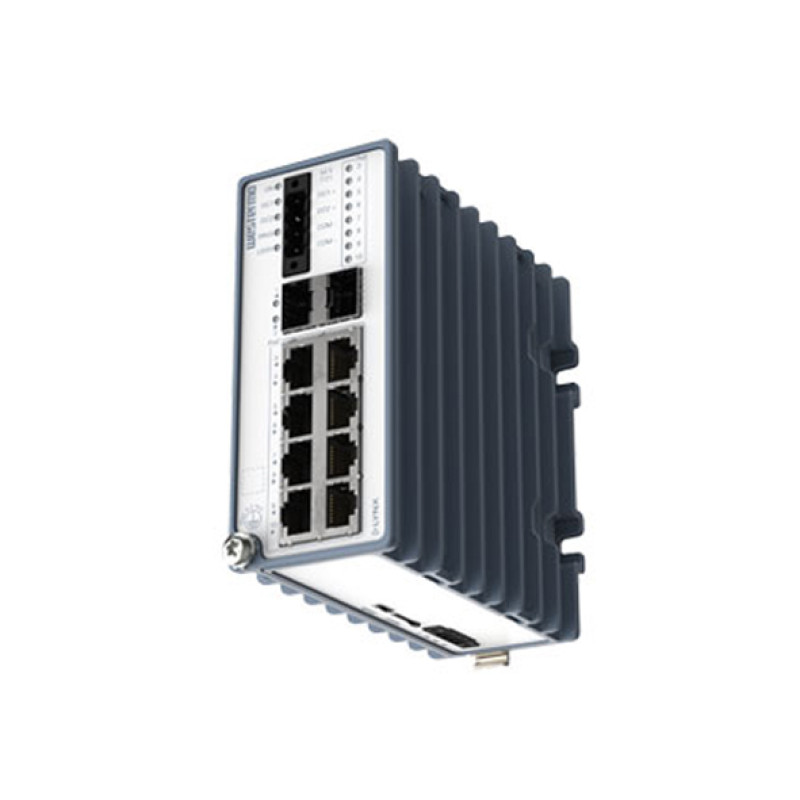

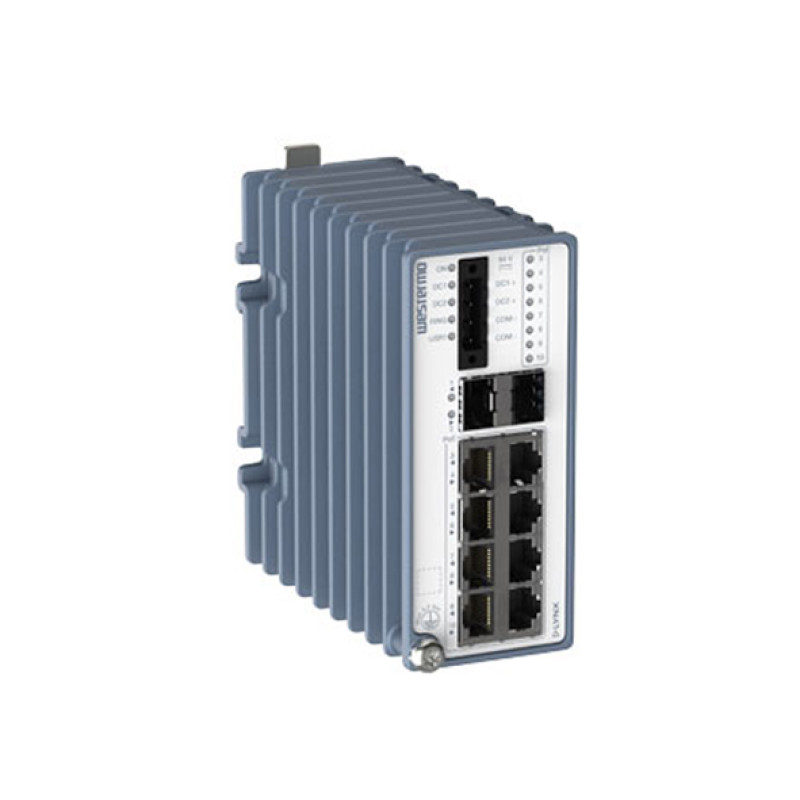

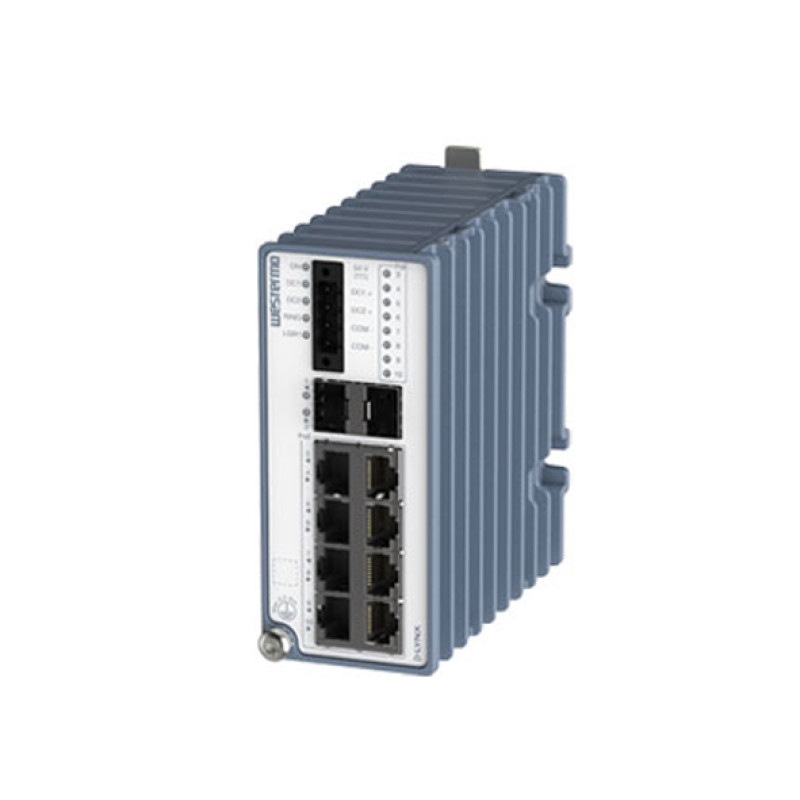

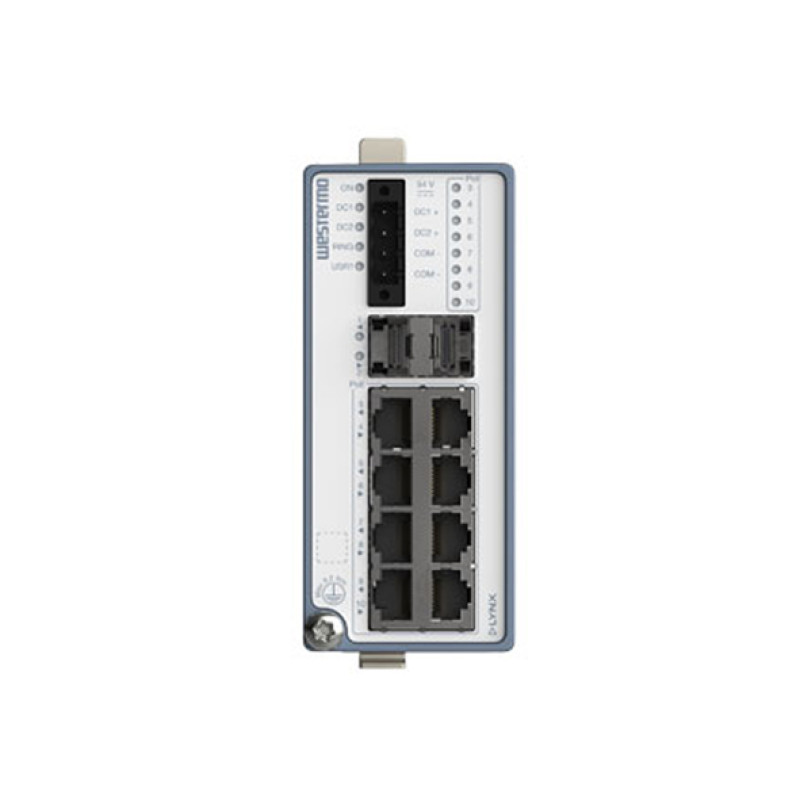

Westermo Lynx-3510-E-F2G2.5-P8G-LV Managed Ethernet Switch
- Industrial Layer 3 PoE+ Switch
- 802.3at/af (PoE+/PoE) 8 x RJ45, 10/100/1000BaseT(X)
- 2 x 2.5 Gbit/s, SFP
- Max. 240W total PD consumption
- Max. 30W per PoE port
- -40 to +70°C
- Brand: WESTERMO
- Product Code: Lynx-3510-E-F2G2.5-P8G-LV
Description
Lynx 3510 PoE is a compact high-performance industrial Power
over Ethernet switch with a 2.5 Gigabit uplink. It combines outstanding
performance with the capability to supply power to high-power devices over long
distances. With all 8 copper ports providing up to 30W output per port and a
total budget of 240W, the possibilities for lean and simple installations are
ideal, only one cable is needed for both connectivity and power. In addition,
the flexibility is further increased by the advanced PoE management functions.
The switch is designed with the harshest industrial
environments in mind and is capable to withstand extreme temperatures,
vibrations, humidity, and electrical environments. Using only industrial-grade components contributes to ensuring market-leading mean time between failure
(MTBF), maximized service life, and reduced operational and life cycle costs.
The device is thoroughly tested both by Westermo and external
test institutes to meet a rich selection of EMC, isolation, vibration, and shock
standards, all to the highest levels suitable for heavy industrial environments
and rail trackside applications.
Powered by the next-generation WeOS operating system, ensuring
robust operation and support for an expanding range of protocols and features.
The Lynx 3510 PoE features intuitive setup and configuration, removing the need
for specialized IT support or training, and enabling easy and cost-efficient
installation. In addition, recognizing the growing sophistication of
cyberattacks, an extensive suite of cybersecurity tools is available including
hardware support for secure boot. These tools can be used to build networks in
compliance with the IEC 62443 standard, which defines technical security
requirements for data communication network components.
Lynx 3510 PoE is the ideal choice for handling big data and high bandwidth requirements typically found within transportation, manufacturing, energy, smart cities, and other applications.
You can place an order for the Westermo Lynx-3510-E-F2G2.5-P8G-LV Managed Ethernet Switch, which is applicable in the Railway Automation, Marine and Factory Automation industries, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
Interface | |
---|---|
Number of ports | 10 Ports |
10/100Mb RJ45 (Megabit) Ports | |
10/100/1000Mb RJ45 (Gigabit) Ports | : 8 Ports |
100Mb Fiber optic multi mode (Megabit) Ports | |
100Mb Fiber optic single mode (Megabit) Ports | |
1000Mb SFP Fiber optic (Gigabit) Ports | : 2 Ports |
10/100Mb (Megabit) POE Prots | |
100Mb SFP Fiber optic (Megabit) Ports | |
10/100/1000Mb (Gigabit) POE Ports | |
M12 port | |
Serial port | |
USB | : USB-C (emulate serial port, 115200 bps) |
Other ports | Micro SD: Secure Digital 2.0 Digital input: 1 pcs, screw terminal Digital output: 1 pcs, screw terminal |
Power Requirements | |
Maximum power consumption | Max. 240 W total PD consumption Max. 30 W per PoE port |
Power Consumption (Output Adapter) | - |
Power Input Plugin ( Redundant ) | |
Switch specifications | |
Most forwarding speed | - |
Network working layers | Layer 3 |
Switch type | Managed |
Port Aggregation | IEEE 802.1AX/802.3ad Link Aggregation (LACP and Static) |
Physical Characteristics | |
Dimensions | 52 x 134 x 130 mm (2.05 x 5.28 x 5.19 inches) |
Housing | Full metal |
Operating Temperature | -40 to +70°C (-40 to +158°F) |
Operation Humidity | 5-95% relative humidity |
Storage Temperature | -40 to +85°C (-40 to +185°F) |
Weight | 1100 gr |
Standards and protocols | |
Protocols and work standards | EN/IEC 61000-6-2, Immunity industrial environments EN/IEC 61000-6-4, Emission industrial environments Trackside: EN 50121-4/IEC 62236-4, Railway signaling and telecommunications apparatus Environmental: NEMA TS2, Traffic Controller Assemblies with NTCIP Requirements Marine: DNV rules for classification - Ships and offshore units Safety: EN/IEC/UL 61010-1, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements EN/IEC/UL 61010-2-201, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-201: Particular requirements |
