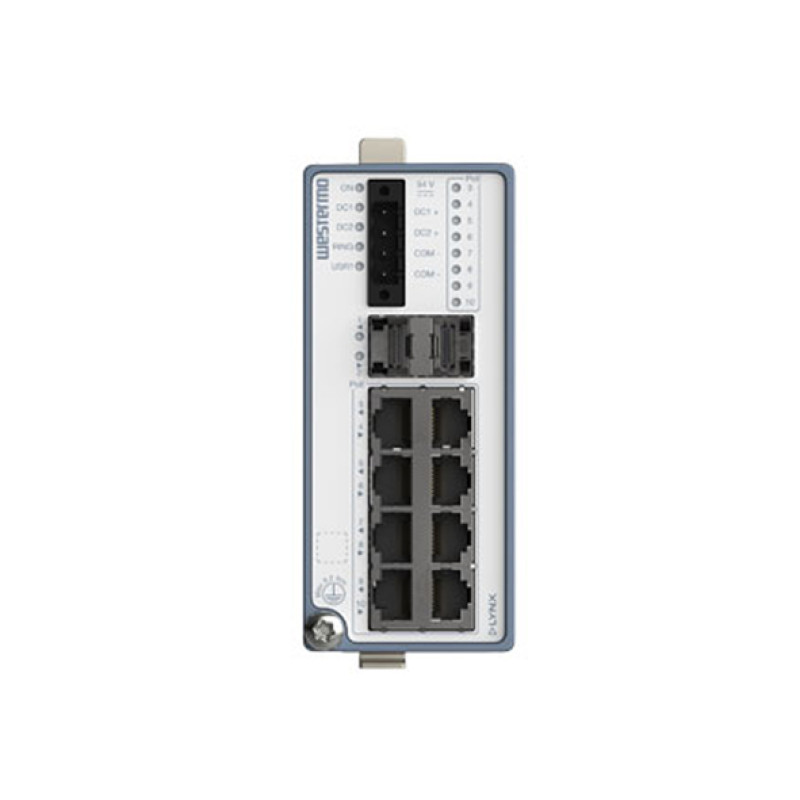

Westermo Lynx 3510-F2G2.5-P8G-LV Managed Ethernet Switch
- Layer 2 functionality switching
- 8 x 10/100/1000 Mbps PoE ports (RJ45 connector)
- 2 x 2.5 Gbit/s SFP fiber ports
- Supports 802.3at/af (PoE+/PoE)
- Ultra-robust IP40 metal housing
- 54 VDC input power range
- -40 to +70°C operating temperature
.png)
Description
Lynx 3510 PoE is a compact high-performance industrial Power
over Ethernet switch with a 2.5 Gigabit uplink. It combines outstanding
performance with the capability to supply power to high-power devices over long
distances. With all 8 copper ports providing up to 30W output per port and a
total budget of 240W, the possibilities for lean and simple installations are
ideal, only one cable is needed for both connectivity and power. In addition,
the flexibility is further increased by the advanced PoE management functions.
The switch is designed with the harshest industrial
environments in mind and is capable of withstanding extreme temperatures,
vibrations, humidity, and electrical environments. Using only industrial-grade components contributes to ensuring market-leading mean time between failure
(MTBF), maximized service life, and reduced operational and life cycle costs.
The device is thoroughly tested both by Westermo and
external test institutes to meet a rich selection of EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial
environments and rail trackside applications.
Powered by the next-generation WeOS operating system,
ensuring robust operation and support for an expanding range of protocols and
features. The Lynx 3510 PoE features intuitive setup and configuration,
removing the need for specialized IT support or training, and enabling easy and
cost-efficient installation. In addition, recognizing the growing
sophistication of cyberattacks, an extensive suite of cybersecurity tools is
available, including hardware support for secure boot. These tools can be used
to build networks in compliance with the IEC 62443 standard, which defines
technical security requirements for data communication network components.
Lynx 3510 PoE is the ideal choice for handling big data and high bandwidth requirements typically found within transportation, manufacturing, energy, smart cities, and other applications.
You can also find the Lynx 3306-E-F2G-T4-LV, Lynx 3510-F2G2.5-T8G-LV, Lynx 3310-E-F2G-T8-LV, and Lynx 3510-E-F2G2.5-T8G-LV models in the Managed Ethernet Switches.
Easy World Automation offers the
easiest way to buy the Westermo Lynx 3510-F2G2.5-P8G-LV Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | : 8 Ports (RJ45 connector), 802.3at/af (PoE+/PoE) |
| Other ports | : 2 x 2.5 Gbit/s SFP fiber ports, 1 x Console Port (USB-C, emulate serial port, 115200 bps), 1 x Micro SD slot (Secure Digital 2.0), 1 x Digital input channel and 1 x Digital output channel (screw terminal connector) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.1 to 4.8 A |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 54 VDC |
| Operating Voltage | 802.3at (PoE+): 53 to 57 VDC, 802.3af: 48 to 57 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | Telcordia: 638,000 hours, MIL-HBDK-217F : 583,000 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 52 x 134 x 130 mm (2.05 x 5.28 x 5.19 inches) |
| Housing | Full metal |
| Installation | - |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments; Trackside: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Marine: DNV rules for classification - Ships and offshore units; Safety: EN/IEC/UL 61010-1, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements, EN/IEC/UL 61010-2-201, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 2-201: Particular requirements; Ingress protection: IP40; Corrosive gases: IEC 60068-2-60; Telcordia; MIL-HBDK-217F |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Weight | 1100 gr |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Load/save files from/to external memory., Configuration and Deployment using external memory, Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote Syslog server), Port monitoring |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
