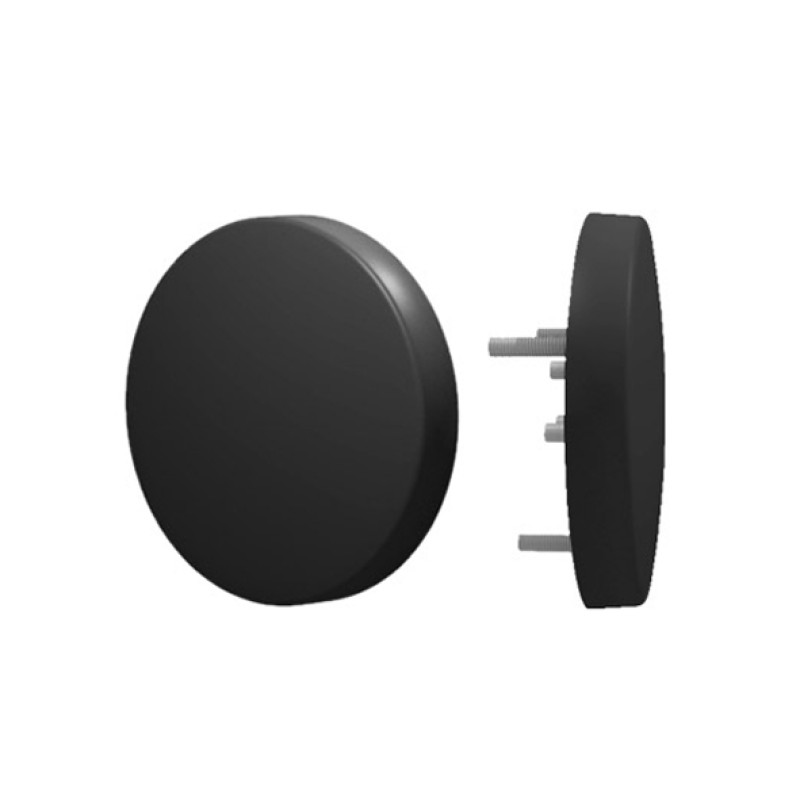

Westermo ICL-5 Inter-Consist Link Antenna
- Together with Westermo WLAN radios provide the ultimate ICL solution omni-directional
- Easy cable replacement for inter-consist networks
- 3x3 MIMO
- Clever algorithms for the optimal use of radio channels and redundant links
- ICL-optimized beam shape
- Designed for short-range application
- Up to 450 Mbps
- EN 50155 compliant
- IP67 and IP69K for outside mounting e.g. near train coupler
Description
The Westermo ICL-5 short-range inter-consist antenna is tailor-made for high throughput short-range communication for inter-consist coupling in combination with Westermo radios. Unlike normal antennas, ICL antenna works without limitations
in short range.
The ICL-5 antenna is designed to withstand the tough environment on-board trains exposing equipment to constant vibration, extreme temperatures, humidity, etc. Ingress protection of IP67 and IP69K enables mounting outside the train body, e.g., near the train coupler. Thorough type testing at independent labs certifies compliance with standards such as EN 50155.
You can Buy the Westermo ICL-5 Inter-Consist Link Antenna via inquiring
online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific
time in your location.
Specification
| Antenna Characteristics | |
|---|---|
| Frequency | 5.150 to 5.950 GHz |
| Antenna Type | Patch antenna |
| Antenna Gain | Max: 4 dBi / Avg: 2 dBi |
| Connector | 3 x QMA (f) |
| Impedance | 50 Ω |
| Polarization | 3 x linear |
| Physical Characteristics | |
| Weight | 185 g |
| Operating Temperature | -40 to +85 °C (-40 to +185 °F) |
| Storage Temperature | -55 to +85 °C (-40 to +185 °F) |
| Ambient Relative Humidity | - |
