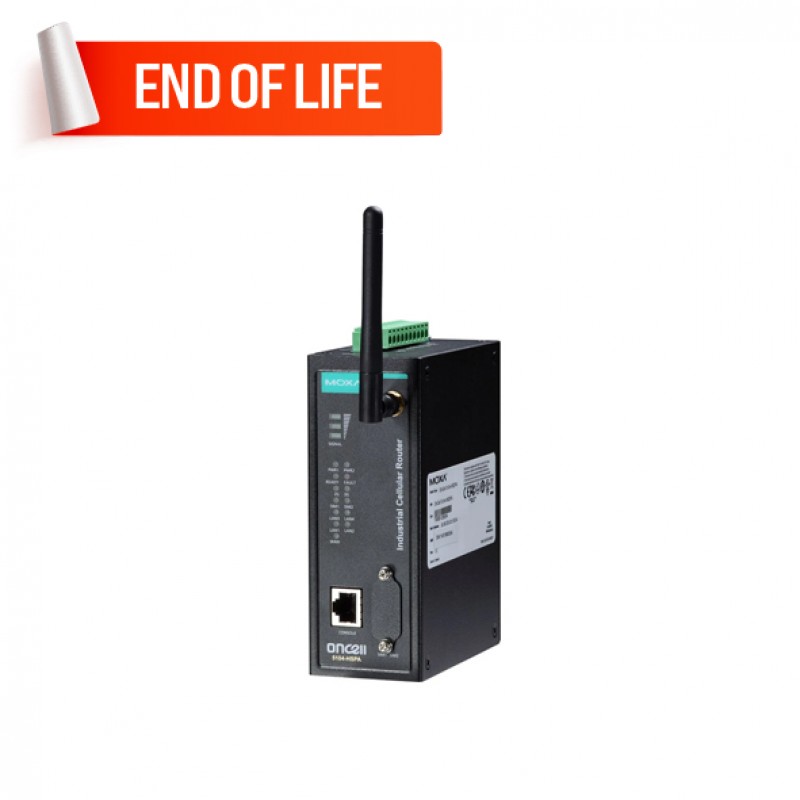

MOXA OnCell 5104-HSPA Dual SIM Industrial Cellular Router
- Supports GSM/GPRS/EDGE/UMTS/HSPA Standards
- 5 x 10/100 Mbps ports (RJ45 connector)
- IP30-rated Aluminum body design
- 12 to 48 VDC Redundant dual power inputs
- DIN rail and wall-mountable
- -30 to 55°C operating temperature
- Brand: MOXA
- Product Code: OnCell 5104-HSPA
.png)
Description
The OnCell 5104-HSPA high-performance industrial-grade cellular routers allow up to 4 Ethernet-based devices to simultaneously use a single cellular data account for primary or backup network connectivity to remote sites and devices. It provides the functionality of a cellular router, firewall, and switch in one device and is integrated with Moxa’s GuaranLink function to ensure zero data loss and on-demand cellular communication.
The OnCell 5104-HSPA comes with a built-in relay output that can be configured to indicate the priority of events when notifying or warning engineers in the field, and the two digital inputs allow you to connect basic I/O devices, such as sensors, to the cellular network. The OnCell 5104HSPA uses 12 to 48 VDC power inputs with a screw-on design for greater reliability, and the Ethernet ports come with 1.5 kV magnetic isolation protection to keep your system safe from unexpected electrical discharges.
End of Life Product - Replacement Available
Please note that the OnCell 5004/5104-HSPA Series has been phased out and replaced by the OnCell G4302-LTE4 Series.
Explore our extensive range of
industrial automation products such as MOXA OnCell 5104-HSPA Dual SIM Industrial Cellular Router in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| SIM card slot | : 2 slots (3 V) |
| Ethernet Ports | : 5 x 10/100 Mbps ports (RJ45 connector) |
| USB | |
| Digital Input and Output | : 2 electrically isolated inputs (+13 to +30 V for state “1” (On), +3 to -30 V for state “0” (Off)) |
| Serial port | : 1 x Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
| Alert Output | : 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Band Options | UMTS/HSPA 800 MHz / 850 MHz / AWS MHz / 1900 MHz / 2100 MHz, Universal quad-band GSM/GPRS/EDGE 850 MHz / 900 MHz / 1800 MHz / 1900 MHz |
| Cellular Standards | GSM, GPRS, EDGE, UMTS, HSPA |
| Cellular Antenna Connectors | 1 x SMA female |
| WLAN Standards | |
| WLAN Antenna Connector | |
| GPS Antenna Connector | |
| Radio specifications | |
| Radio Connection type | GuaranLink |
| Maximum data transfer speed of 2G | EDGE : 237Kbps download speed, 237Kbps upload speed, and GPRS: download speed of 85.6Kbps, upload speed of 85.6 kbps |
| Maximum data transfer speed of 3G | 14.4 Mbps download speed, 5.76 Mbps upload speed |
| Maximum data transfer speed of 4G | - |
| WiFi Radio Frequency | |
| Software Specifications | |
| Routing Redundancy | |
| VPN | IPsec VPN |
| Firewall | Filter: ICMP, WAN IP Filtering |
| Time Management | SNTP |
| Management | ARP, BOOTP, DDNS, DHCP Server/Client, DNS, PPPOE, PPP, HTTP, IPv4, SMTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, Web Console, Serial Console, Telnet Console, Remote SMS Control, Wireless Search Utility, Auto IP Report, OnCell Central Manager |
| General | |
| LED Indicators | - |
| MTBF | 483,175 hrs |
| Operating mode | Router, 3G Modem |
| Standards and protocols | |
| Protocols | - |
| Features and capabilities | |
| Send and receive SMS | |
| Security | |
| Security and Encryption | HTTPS/SSL, IPsec, SSH |
| Authentication | |
| Power Requirements | |
| Power Connector | Terminal block |
| Power Consumption (Output Adapter) | - |
| Input Voltage | 12 to 48 VDC (Redundant dual power inputs) |
| POE Support | |
| Input Current | 0.95 A @ 12 VDC, 0.25 A @ 48 VDC |
| Reverse Polarity Protection | Supported |
| Buttons | |
| Power button | |
| Reset | |
| Physical Characteristics | |
| Installation | DIN rail and wall mouniting |
| Dimensions | 51 x 135 x 103 mm (2 x 5.32 x 4.16 in) |
| Housing | Aluminum |
| Weight | 650 g (1.43 lb) |
| Operating Temperature | -30 to 55°C (-22 to 131°F) |
| Storage Humidity | 5 to 95% (non-condensing) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Type of Use | Industrial environment |
| Standards and Certifications | Safety: UL 60950-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Radio Frequency: FCC Part 22H, FCC Part 24E, EN 301 489-1, EN 301 489-7, EN 301 489-24, EN 301 511, EN 301 908; IP30; Telcordia SR332 |
