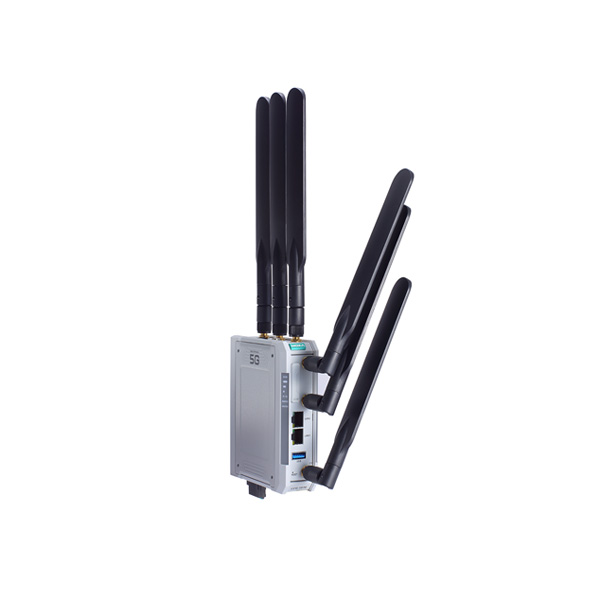

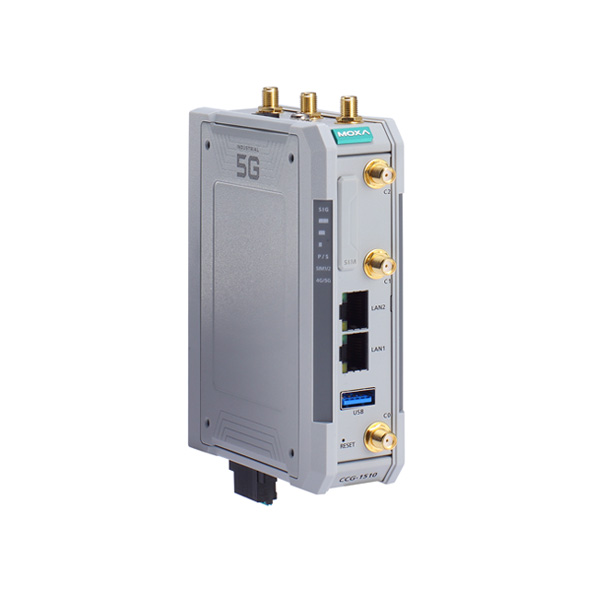

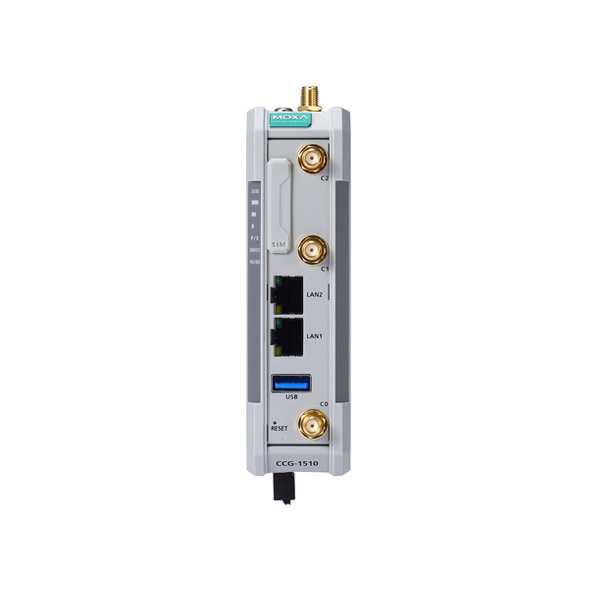

MOXA CCG-1510-T Industrial Cellular Gateway

MOXA CCG-1510-T Industrial Cellular Gateway
MOXA CCG-1510-T Industrial Cellular Gateway
MOXA CCG-1510-T Industrial Cellular Gateway
MOXA CCG-1510-T Industrial Cellular Gateway
MOXA CCG-1510-T Industrial Cellular Gateway
MOXA CCG-1510-T Industrial Cellular Gateway
MOXA CCG-1510-T Industrial Cellular Gateway

  • Supports 5G R15 Standard
  • 2 x 10/100/1000 Mbps ports (RJ45 connector)
  • 1 x RS-232/422/485 port (5-pin TB connector)
  • IP30-rated Metal and SECC body design
  • DIN-rail and Wall mounting
  • 9 to 24 VDC input power range
  • -40 to 70°C operating temperature

  • Brand: MOXA
  • Model: CCG-1510-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP30)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
SATEL GW120 Cellular Router
Quickview
SATEL GW120 Cellular Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL GW600 Cellular Router
Quickview
SATEL GW600 Cellular Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL SATELLAR XT 5RC IP Radio Router
Quickview
SATEL SATELLAR XT 5RC IP Radio Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL SATELLINE-1870E Serial Radio Modem
Quickview
SATEL SATELLINE-1870E Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL SATELLINE-4PRO Serial Radio Modem
Quickview
SATEL SATELLINE-4PRO Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL SATELLINE-EASY 869 Serial Radio Modem
Quickview
SATEL SATELLINE-EASY 869 Serial Radio Modem
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL SATELLINE-M3-R4 Serial Radio Module
Quickview
SATEL SATELLINE-M3-R4 Serial Radio Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL SATELLINE-M3-TR3 Serial Radio Module
Quickview
SATEL SATELLINE-M3-TR3 Serial Radio Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Cellular Gateways/ Routers/ Modems , Cellular Gateways , Industrial Cellular Routers and Gateways , Industrial Cellular Gateways , Industrial Data Communications , Industrial Cellular , Industrial Cellular Solutions , Gateways , MOXA CCG-1500 Series

The CCG-1500 Series is designed both as a media converter and a protocol converter. The media converter includes 5G-to-ethernet and 5G-to-serial ports, which can be used for public as well as private networks. The protocol converter is mainly for Modbus TCP/RTU conversion. The 5G interface can use Modbus TCP while the serial interface can process Modbus RTU.

The CCG-1500 is built around a Qualcomm® Snapdragon™ X55 Cortex-A7 processor that has been optimized for use in media-conversion scenarios and is also widely applicable to a variety of industrial solutions. With flexible interfacing options, this tiny, embedded converter is a reliable and secure gateway for data processing at field sites as well as a useful communications platform for large-scale deployments.

Wide temperature 5G-enabled models are available for extended temperature applications. All units are thoroughly tested in a testing chamber, guaranteeing that the 5G-enabled computing platforms are suitable for wide-temperature applications.



You can also find the CCG-1510-US-T, CCG-1520-T, and CCG-1510-TW-T models in the Industrial Cellular Routers And Gateways.



Easy World Automation offers the easiest way to buy the MOXA CCG-1510-T Industrial Cellular Gateway in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

3g modem : Interface
SIM card slot Yes : 2 SIM card slots (Nano SIM)
Ethernet Ports Yes : 2 x 10/100/1000BaseT(X) Ports (RJ45 connector)
USB No
Digital Input and Output No
Serial port Yes : 1 x RS-232/422/485 port (5-pin terminal block)
Alert Output No
Band Options NR: N1 / N3 / N28 / N41 / N48 / N77 / N78, LTE: B1 / B3 / B7 / B8 / B28 / B38
Cellular Standards 5G R15
Cellular Antenna Connectors 6 x SMA
WLAN Standards No
WLAN Antenna Connector No
GPS Antenna Connector No
3g modem : Radio specifications
Radio Connection type -
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G -
WiFi Radio Frequency No
3g modem : Software Specifications
Routing Redundancy No
VPN No
Firewall No
Time Management No
Management No
3g modem : General
LED Indicators System: Power x 1, SIM card indicator x 1, 5G / LTE indicator x 1; Wireless Signal Strength: Cellular x 3
MTBF 1,036,724 hrs
Operating mode 5G gateway
3g modem : Standards and protocols
Protocols -
3g modem : Features and capabilities
Send and receive SMS No
3g modem : Security
Security and Encryption No
Authentication No
3g modem : Power Requirements
Power Connector Terminal block
Power Consumption (Output Adapter) Average: 8 W, Peak: 11 W
Input Voltage 9 to 24 VDC
POE Support No
Input Current 9 to 24 VDC @ 1.33 to 0.5 A min
Reverse Polarity Protection No
3g modem : Buttons
Power button No
Reset No
3g modem : Physical Characteristics
Installation DIN-rail mounting, Wall mounting (with optional kit)
Dimensions 100 x 125 x 35.2 mm (3.93 x 4.92 x 1.38 in)
Housing Metal
Weight 750 g (1.65 lb)
Operating Temperature -40 to 70°C (-40 to 158°F)
Storage Humidity 5 to 95% (non-condensing)
Storage Temperature -20 to 70°C (-4 to 158°F)
Type of Use Industrial environment
Standards and Certifications IP30, Telcordia SR332
