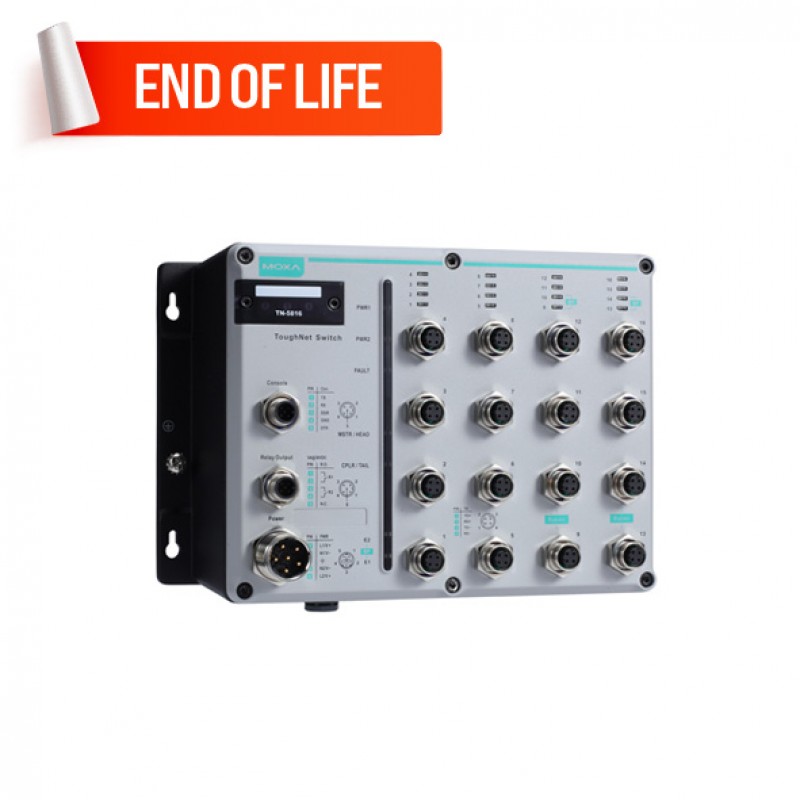

MOXA TN-5816ABP-WV-CT-T Managed Ethernet Switches
- 12 x 10/100BaseT(X) Ports (M12 connector)
- 4 x 10/100BaseT(X) Ports (M12 connector with Bypass Relay)
- 24 to 110 VDC Redundant dual power inputs
- IP54-rated Metal body design
- DIN-rail and Wall mounting
- -40 to 75°C operating temperature
- Brand: MOXA
- Product Code: TN-5816ABP-WV-CT-T
-01.png)
Description
The ToughNet TN-5800A Series switches are high-performance M12 Layer 3 Ethernet switches that support Layer 3 routing to facilitate the deployment of applications across networks. Using M12 and other circular connectors, the TN-5800A Series ensures tight, robust connections and reliability against environmental disturbances, such as vibration and shock. TN-5800A Series switches provide isolated power with a 24 to 110 VDC power input range, which allows you to use the same model at different sites around the globe.
In addition, TN-5800A Series switches provide up to 16 Fast Ethernet M12 ports with 4 bypass relay ports, and 2 Gigabit Ethernet ports with bypass relay function. Furthermore, the -40 to 75°C operating temperature and IP54-rated water and dust-resistant enclosure allow deployment in harsh environments. The TN-5800A Series Ethernet switches are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.
End of Life Product - Replacement Available
Please note that the TN-5800A Series has been phased out and replaced by the TN-4916 Series.
Easy World Automation offers the
easiest way to buy the MOXA TN-5816ABP-WV-CT-T Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 16 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 12 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector), 4 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector with bypass relay), 2 x Alarm Contact Channels (M12 connector), 1 x Console Port (M12 connector) |
| Features and capabilities | |
| Backup | : ABC-01-M12 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 1.1 A @ 24 VDC, 0.23 A @ 110 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24/36/48/72/96/110 VDC |
| Operating Voltage | 16.8 to 137.5 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 577,026 hour |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 250 x 181.4 x 115 mm (9.84 x 7.14 x 4.53 in) |
| Housing | Metal |
| Installation | DIN-rail mounting (optional), Wall mounting (standard) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Freefall: IEC 60068-2-31; Radio Frequency: FCC; Railway: EN 50121-4, EN 50155, IEC 60571; Railway Fire Protection: EN 45545-2; Safety: EN 60950-1, UL 508; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; Green Product: RoHS, CRoHS, WEEE; IP54; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 2,290 g (5.62 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP Adapter (Slave), Modbus TCP Server (Slave), Link Aggregation, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | Back Pressure Flow Control, DHCP Option 66/67/82, Flow control, HTTP, IPv4, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, 802.1Q, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN, QinQ VLAN, Static Multicast |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
