Description

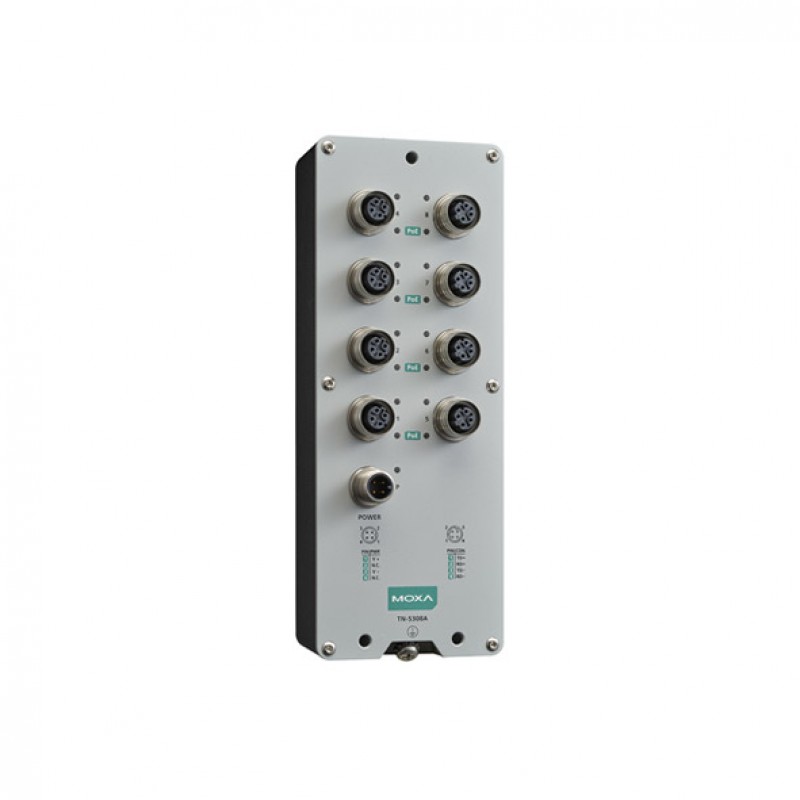

The ToughNet TN-5300A Series M12 unmanaged Ethernet switches
are designed for industrial applications in harsh environments. The TN-5300A
Series switches use M12 connectors to ensure tight, robust connections, and
guarantee reliable resistance against environmental disturbances, such as
vibration and shock. The TN-5300A Series Ethernet switches provide 5 or 8 Fast
Ethernet M12 ports, support IEEE 802.3/802.3u/802.3x with 10/100M,
full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for
your industrial Ethernet network.
All TN-5300A Series models support an extended operating
temperature range of -40 to 70°C. The TN-5300A Series also complies with all
mandatory requirements of the EN 50155 standard including operating
temperature, power input voltage, surge, ESD, and vibration, making these
switches suitable for rolling stock and a variety of other industrial
applications.
The TN-5300A Series features a single power input with
overload, reverse polarity, and inrush current protection. Additionally, the
TN-5308A PoE models provide 8 IEEE 802.3af/at compliant PoE ports. These
switches are classified as power source equipment (PSE) provide up to 30 watts
of power per port and have a total power PoE budget of 50.2 Watts.
You can also find the TN-5305A-WV-CT-T and TN-5308A-WV-T models in the EN50155 Ethernet Switches.
Easy World Automation offers the easiest way to buy the MOXA TN-5308A-WV-CT-T Unmanaged Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 8 x 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | max. 0.1 A @ 24 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24/36/48/72/96/110 VDC |
| Operating Voltage | 16.8 to 137.5 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 5,260,454 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Unmanaged |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 62.4 x 190.4 x 37.5 mm (2.46 x 7.50 x 1.48 in) |
| Housing | Metal |
| Installation | Wall mounting, DIN-rail mounting (with optional kit) |
| Operating Temperature | -40 to 70°C (-40 to 158°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Radio Frequency: FCC; Environmental Testing: IEC 60068-2-1, EN 50155, IEC 60068-2-14, EN 50155, IEC 60068-2-2, EN 50155, IEC 60068-2-30, EN 50155, IEC 60068-2-78; Railway: EN 50121-4, EN 50155, IEC 60571; Railway Fire Protection: EN 45545-2; Safety: IEC 62368-1, UL 62368-1, EN 62368-1; Salt Spray Test: EN 50155; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; Package Vibration Test: ISTA 1A; Package Drop Test: ISTA 1A; Green Product: RoHS, CRoHS, WEEE; IP54; Telcordia SR332 Issue 4 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 455 g (1.00 lb) |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3/802.3u/802.3x |
| Protocols and management standards | - |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
