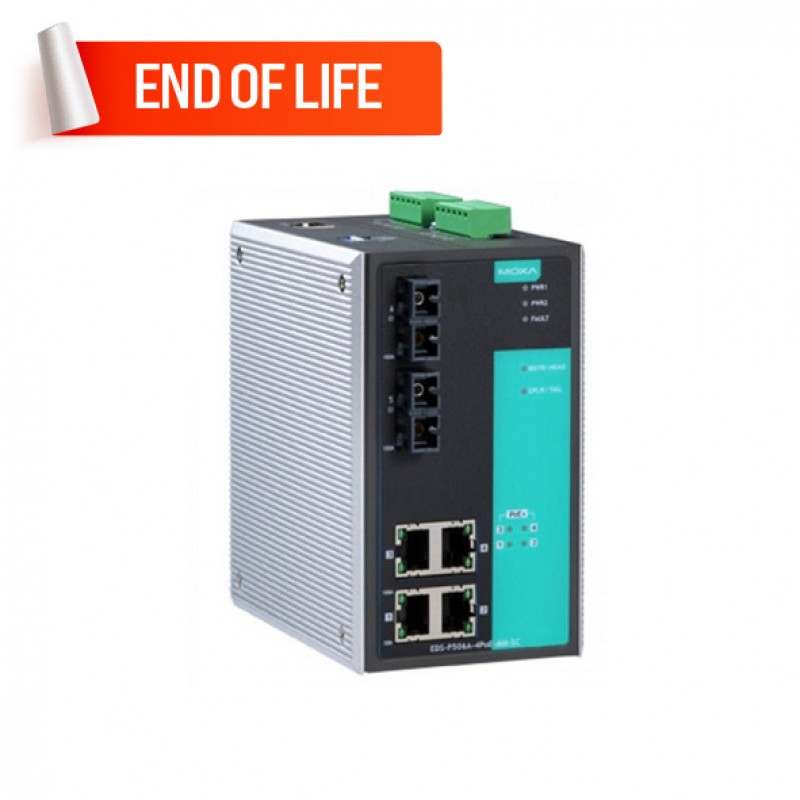

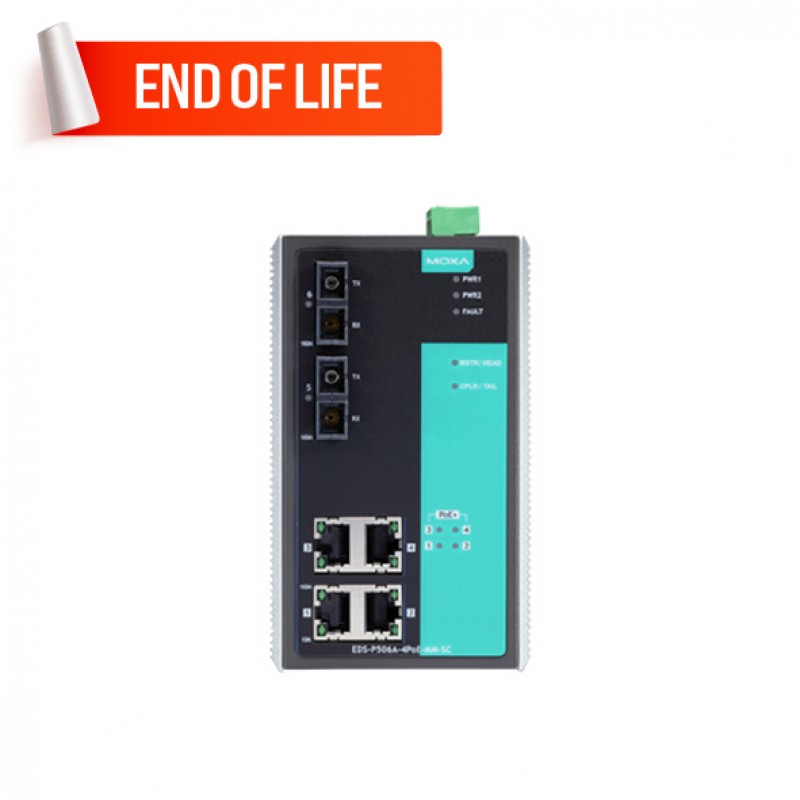

MOXA EDS-P506A-4PoE-SS-SC Managed Ethernet Switches
- 4 100Mbps PoE ports and 2 100Mb single-mode fiber-optic ports
- Din-rail
- Metal body
- Brand: MOXA
- Product Code: EDS-P506A-4PoE-SS-SC
.png)
Description
The EDS-P506A-4PoE series managed redundant Ethernet switches come standard with 4 10/100BaseT(X) 802.3at (PoE+) and 802.3af (PoE) compliant Ethernet ports and 2 10/100BaseT(X) or 2 10/100BaseFX Ethernet ports. The EDS-P506A-4PoE switches provide up to 30 watts of power per PoE port, and allow power to be supplied to connected high-power devices (such as high-end PTZ cameras and WiMAX devices) when AC power is not readily available or is cost-prohibitive to provide locally. The EDS-P506A-4PoE series switches are highly versatile, and their fiber port can transmit data up to 80 km from the device to the control center with high EMI immunity. The Ethernet switches support advanced management and security features. The EDS-P506A-4PoE series is designed especially for security automation applications such as IP surveillance, and the gate of entry systems, which can benefit from a scalable backbone construction and Power-over-Ethernet support.
You can also find the EDS-P506A-4PoE, EDS-P506A-4PoE-MM-ST-T, and EDS-P506A-4PoE-T models in the DIN-Rail Ethernet Switches.
Easy World Automation offers the
easiest way to buy the MOXA EDS-P506A-4PoE-SS-SC Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 6 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 2 SC Ports |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Prots | : 4 Ports |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Power Requirements | |
| Maximum power consumption | 17.28W |
| Power Consumption (Output Adapter) | 24V DC, 5.72A |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | |
| MTBF | 433,000 hour |
| Switch specifications | |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | - |
| Physical Characteristics | |
| Dimensions | 80x135x131.5mm |
| Housing | Metal |
| Installation | Din-rail |
| Operating Temperature | 0 to 60 ° C |
| Operation Humidity | 5% to %95 non-condensing |
| Standards and Certifications | Safety: UL 508, EMC: EN 55022/24, EMI: CISPR 22; FCC Part 15B Class A, EMS: IEC 61000-4-2 ESD: Contact:6kV ;Air:8kV, IEC 61000-4-3 RS: 80MHz to 1GHz: 20V/m , IEC 61000-4-4 EFT:Power: 2kV; Signal:1kV, IEC 61000-4-5 Surge: Power :2kV; Signal: 1kV , IEC 61000-4-6 CS: Signal: 10V , IEC 61000-4-8, Rail Traffic: EN 50121-4, Shock: IEC 60068-2-27 , Freefall: IEC 60068-2-32, Vibration: IEC 60068-2-6, IP30 protection |
| Storage Humidity | - |
| Storage Temperature | -40 to 85 ° C |
| Weight | 1.27Kg |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP |
| Protocols and management standards | IPv4/IPv6, SNMP v1/v2c/v3, LLDP, Port Mirror, DDM, RMON, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SMTP, RARP, Telnet, Syslog, SNMP Inform, Flow Control, Back Pressure Flow Control |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
