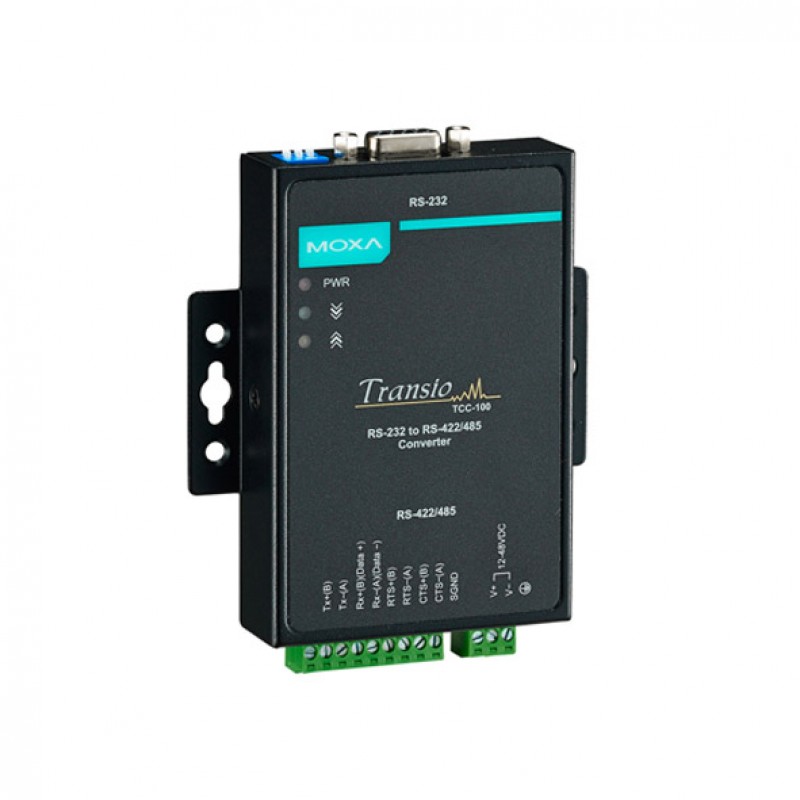

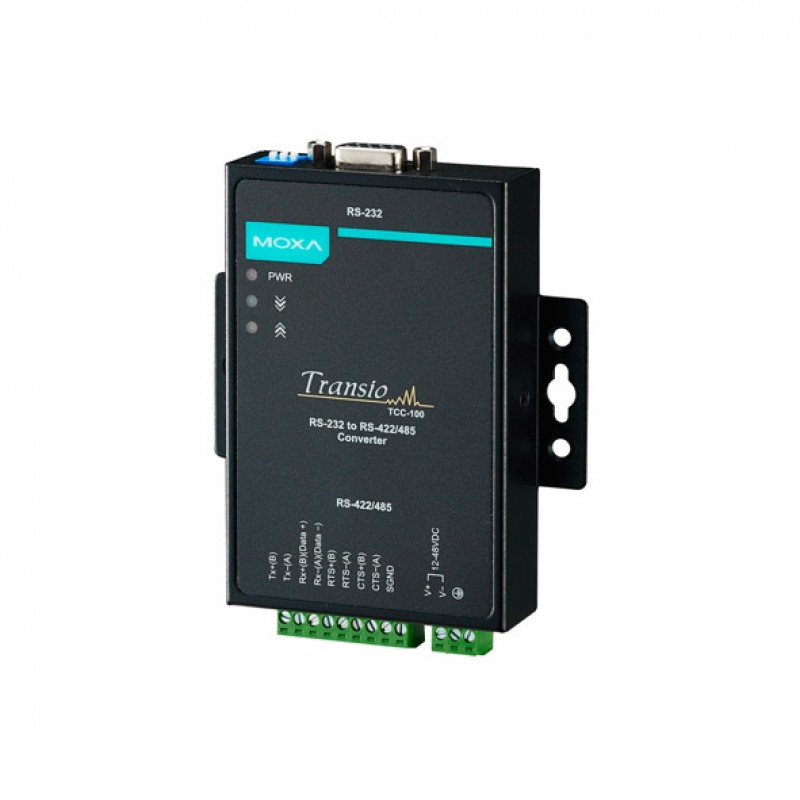

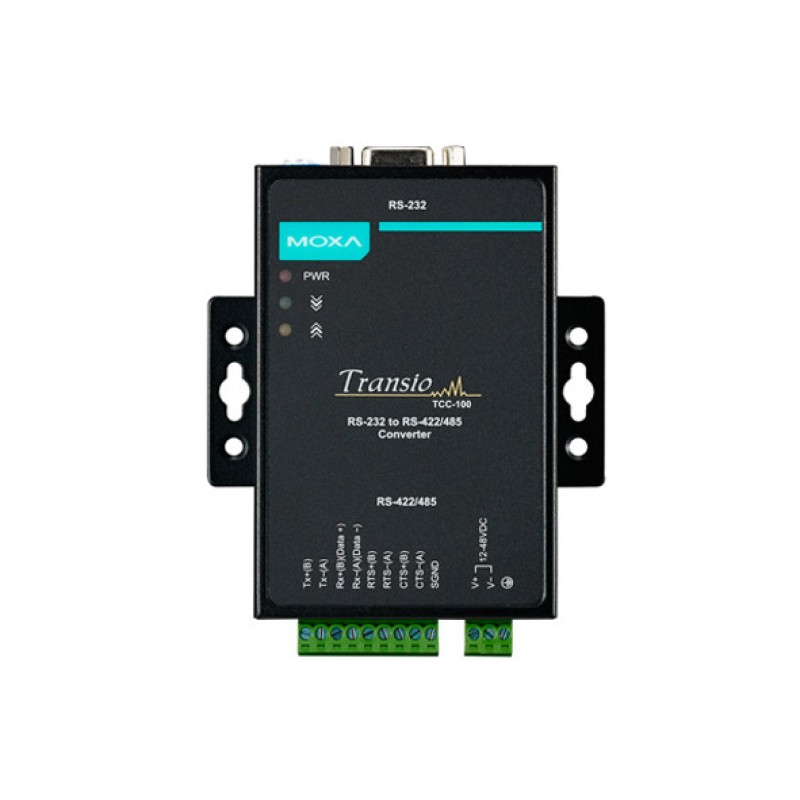

MOXA TCC-100I RS-232 to RS-422/485 Converter
- 2 x RS-232/422/485 Serial Ports (Terminal block connector)
- 2 KV Isolation protection for serial ports
- 12 to 48 VDC input power range
- IP30-rated Metal body design
- DIN-rail and Wall mounting
- -20 to 60°C operating temperature
- Brand: MOXA
- Product Code: TCC-100I
.png)
Description
The TCC-100/100I Series of RS-232 to RS-422/485 converters increases networking capability by extending the RS-232 transmission distance. Both converters have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, an external terminal block for power, and optical isolation (TCC-100I and TCC-100I-T only). The TCC-100/100I Series converters are ideal solutions for converting RS-232 signals to RS422/485 in critical industrial environments.
You can also find the TCC-100, TCC-100-T, and TCC-100I-T models in the Industrial Media Converters.
Easy World Automation offers the
easiest way to buy the MOXA TCC-100I RS-232 to RS-422/485 Converter in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Interface | |
|---|---|
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| Serial port | : 2 x RS-232/422/485 Ports (Terminal block connector) |
| USB | |
| Other ports | |
| Isolation | : 2 KV |
| Converter specifications | |
| Data transfer speed ( Baudrate ) | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Maximum data transmission distance | - |
| Minimum output power converter | - |
| Sensitivity to receiving information | - |
| Wavelength | - |
| Require cable diameter | - |
| Flow Control | - |
| Protocols | - |
| Serial Signals | |
| RS-232 Signals | TxD, RxD, RTS, CTS, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| Power Requirements | |
| Power Consumption (Output Adapter) | - |
| Power Input Plugin ( Redundant ) | |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 150 mA @ 12 to 48 VDC |
| Connector | Terminal block |
| General | |
| Fan / Fanless | - |
| MTBF | 3,017,857 hrs |
| Physical Characteristics | |
| Dimensions | 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in) |
| Housing | Metal |
| Installation | DIN-rail mounting (with optional kit), Wall mounting |
| Operating Temperature | -20 to 60°C (-4 to 140°F) |
| Operation Humidity | 5% to %95 non-condensing |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: UL 60950-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 148 g (0.33 lb) |
| LED Indicators | |
| LED Per Port | |
| Power | |
