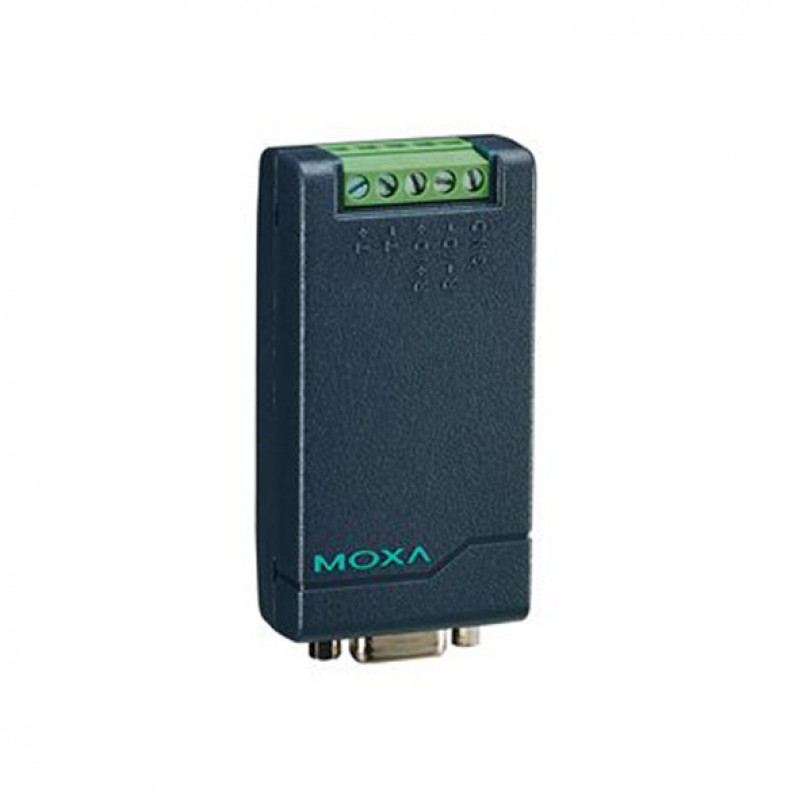

MOXA TCC-80I RS-232 to RS-422/485 Converter
- 2 x RS-232/422/485 Serial Ports (Terminal block connector)
- 2 KV Isolation protection for serial ports
- 5 to 12 VDC input power range
- IP30-rated Plastic and Metal body design
- Desktop installation
- 0 to 60°C operating temperature
.png)
Description
The TCC-80/80I media converters provide complete signal
conversion between RS-232 and RS-422/485, without requiring an external power
source. The converters support both half-duplex 2-wire RS-485 and full-duplex
4-wire RS-422/485, either of which can be converted between RS-232’s TxD and
RxD lines.
Automatic data direction control is provided for RS-485. In
this case, the RS-485 driver is enabled automatically when the circuitry senses
the TxD output from the RS-232 signal. This means that no programming effort is
required to control the transmission direction of the RS-485 signal.
You can also find the TCC-80 model in the Industrial Media Converters.
Inquire about the MOXA TCC-80I RS-232 to RS-422/485 Converter, designed for industrial automation
solutions. Feel free to get in touch with our sales team to give you the best
solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| Serial port | : 2 x RS-232/422/485 Ports (Terminal block connector) |
| USB | |
| Other ports | |
| Isolation | : 2 KV |
| Converter specifications | |
| Data transfer speed ( Baudrate ) | 300 bps to 115.2 kbps |
| Maximum data transmission distance | - |
| Minimum output power converter | - |
| Sensitivity to receiving information | - |
| Wavelength | - |
| Require cable diameter | - |
| Flow Control | - |
| Protocols | - |
| Serial Signals | |
| RS-232 Signals | TxD, RxD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| Power Requirements | |
| Power Consumption (Output Adapter) | - |
| Power Input Plugin ( Redundant ) | |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | |
| Input Voltage | 5 to 12 VDC |
| Input Current | 20 mA @ 5 to 12 VDC |
| Connector | Power input jack |
| General | |
| Fan / Fanless | - |
| MTBF | 2,781,161 hrs |
| Physical Characteristics | |
| Dimensions | 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in) |
| Housing | Plastic top cover, metal bottom plate |
| Installation | Desktop |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Operation Humidity | 5% to %95 non-condensing |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: UL 60950-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Weight | 50 g (0.11 lb) |
| LED Indicators | |
| LED Per Port | |
| Power | |
