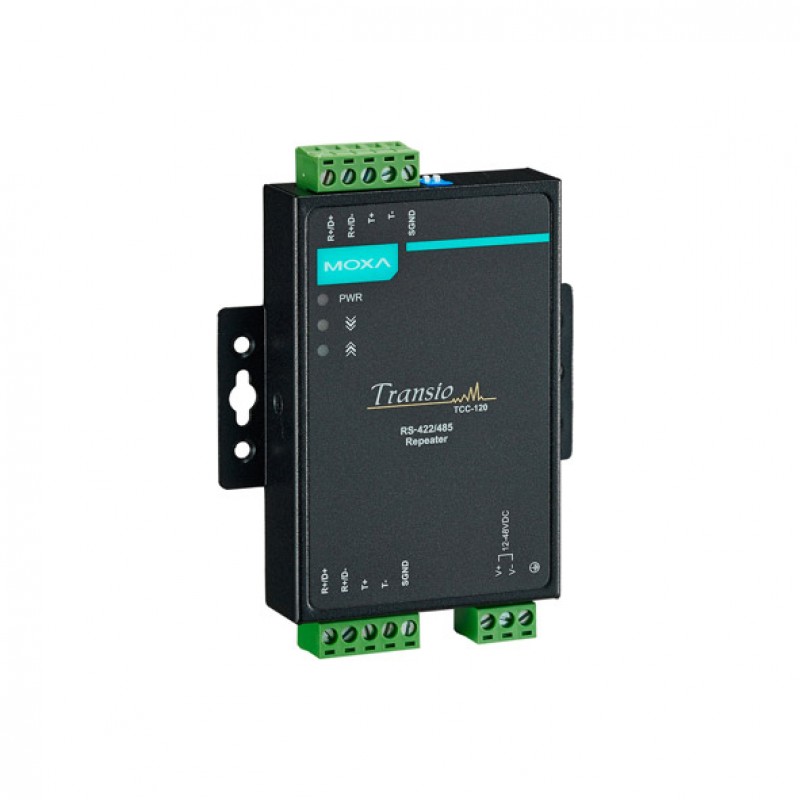

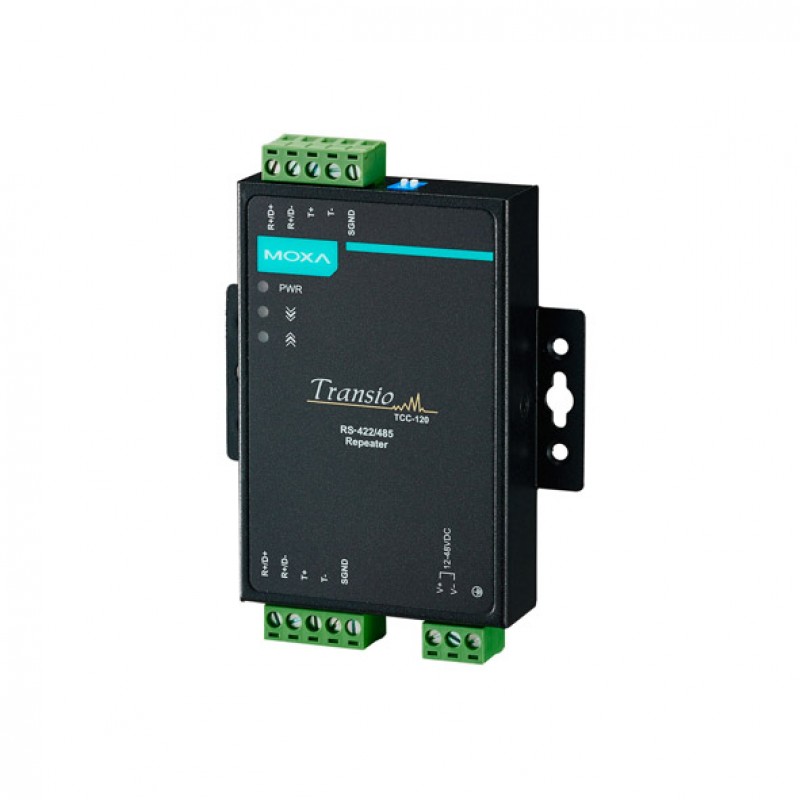

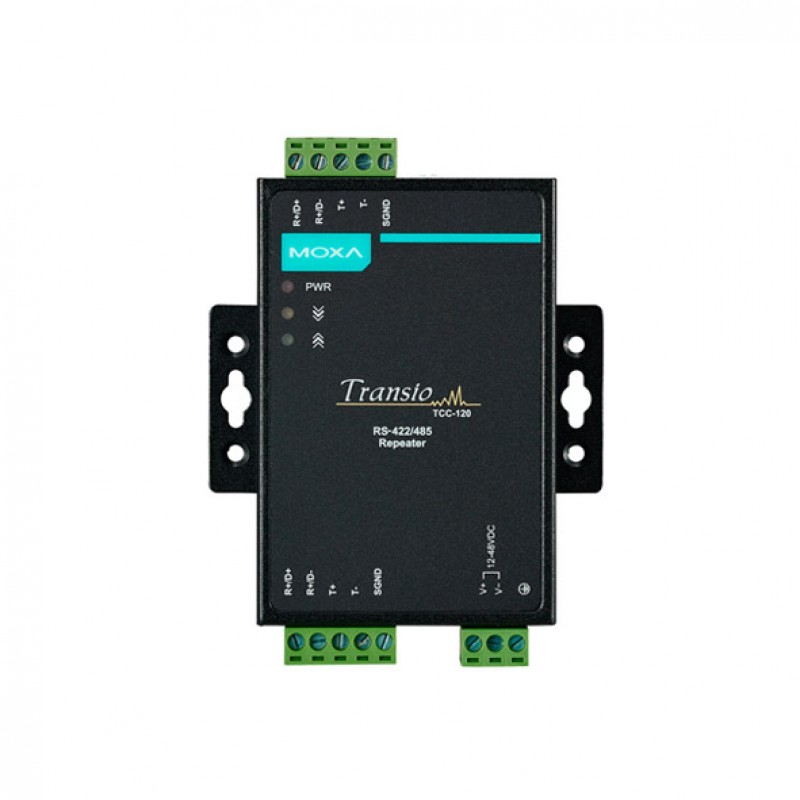

MOXA TCC-120I RS-422/485 Converter/Repeater
- 2 x RS-422/485 Serial Ports (Terminal block connector)
- 2 KV Isolation protection for serial ports
- 12 to 48 VDC input power range
- IP30-rated Metal body design
- DIN-rail and Wall mounting
- -20 to 60°C operating temperature
- Brand: MOXA
- Product Code: TCC-120I
.png)
Description
The TCC-120 and TCC-120I are RS-422/485 converters/repeaters designed to extend RS-422/485 transmission distance. Both products have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, and an external terminal block for power. In addition, the TCC-120I supports optical isolation for system protection. The TCC-120 and TCC-120I are ideal RS-422/485 converters/repeaters for critical industrial environments.
You can also find the TCC-120 model in the Industrial Media Converters.
Easy World Automation offers the
easiest way to buy the MOXA TCC-120I RS-422/485 Converter/Repeater in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| Serial port | : 2 x RS422/485 Ports (Terminal block connector) |
| USB | |
| Other ports | |
| Isolation | : 2 KV |
| Converter specifications | |
| Data transfer speed ( Baudrate ) | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Maximum data transmission distance | - |
| Minimum output power converter | - |
| Sensitivity to receiving information | - |
| Wavelength | - |
| Require cable diameter | - |
| Flow Control | - |
| Protocols | - |
| Serial Signals | |
| RS-232 Signals | - |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| Power Requirements | |
| Power Consumption (Output Adapter) | 180 mA @ 12 VDC |
| Power Input Plugin ( Redundant ) | |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 180 mA @ 12 VDC |
| Connector | Terminal block |
| General | |
| Fan / Fanless | - |
| MTBF | 1,949,025 hrs |
| Physical Characteristics | |
| Dimensions | 67 x 100.4 x 22 mm (2.64 x 3.93 x 0.87 in) |
| Housing | Metal |
| Installation | DIN-rail mounting (with optional kit), Wall mounting |
| Operating Temperature | -20 to 60°C (-4 to 140°F) |
| Operation Humidity | 5% to %95 non-condensing |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: UL 60950-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 148 g (0.33 lb) |
| LED Indicators | |
| LED Per Port | |
| Power | |
