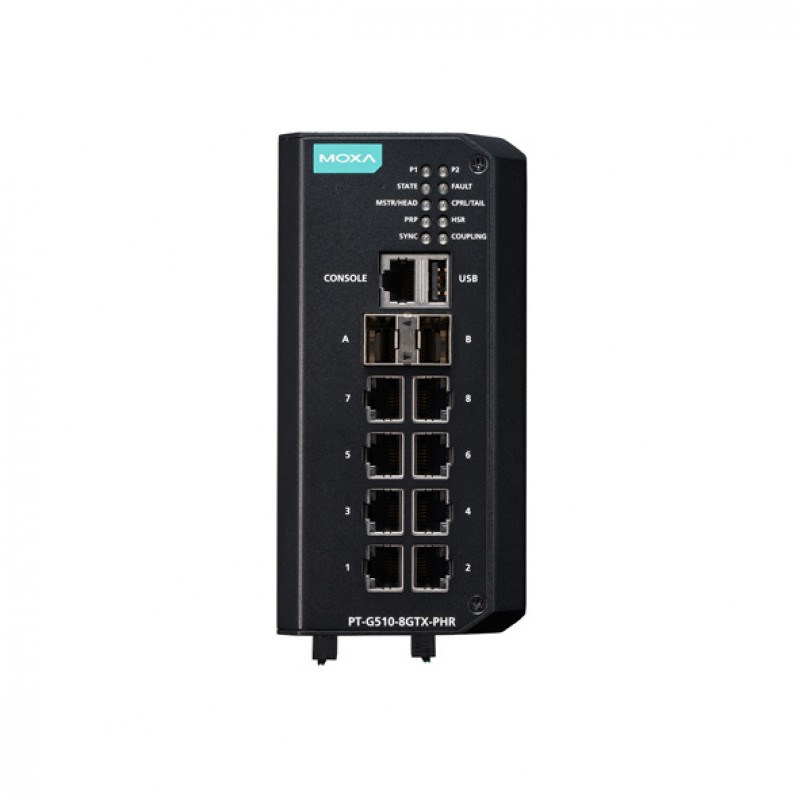

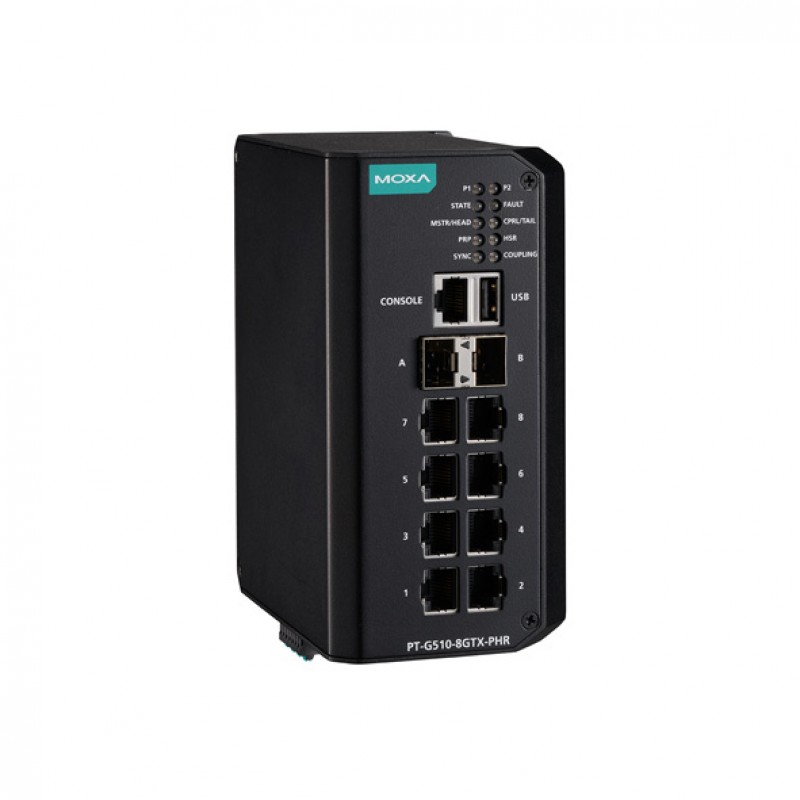

MOXA PT-G510-8GTX-PHR-HV Managed Ethernet Switch

  • 8 x 100/1000BaseT(X) Ports (RJ45 connector)
  • 2 x 100/1000BaseSFP Ports
  • 110-220 VAC/VDC dual power inputs
  • DIN-rail mounting
  • -40 to 75°C operating temperature range

Description

The PT-G510 Series is designed to deliver the highest level of system availability and data integrity for mission-critical applications in digital substations that demand zero-recovery-time redundancy. The PT-G510 Series supports PRP/HSR to achieve seamless redundancy for substations and process automation systems. Hardware-based IEEE 1588v2 PTP is also supported for time-critical applications. Featuring a highly durable design, the PT-G510 Series is certified for IEC 61850-3 Edition 2 Class 2 to fulfill demanding requirements in substation applications.

The PT-G510 Series comes with eight 100/1000BaseT(X) Ethernet ports or 100/1000BaseSFP slots with two dedicated 100/1000BaseSFP PRP/HSR ports combined with support for a complete redundancy protocol suite including PRP, HSR, MRP, STP, MSTP, and RSTP for maximum network reliability. The PT-G510 Series further supports GOOSE Check to efficiently monitor GOOSE packets and features a built-in MMS server based on IEC 61850-90-4 switch data modeling for power SCADA systems.



You can also find the PT-G510-8GTX-PHR-HV-CT, PT-G510-8GTX-PHR-WV, and PT-G510-8GTX-PHR-WV-CT models in the DIN-Rail Ethernet Switches.



Easy World Automation offers the easiest way to buy the MOXA PT-G510-8GTX-PHR-HV Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports
10/100/1000Mb RJ45 (Gigabit) Ports : 8 Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports : 2 Ports
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
Other ports : 1 x RS-232 Console Port (RJ45 connector), 1 x USB Port (Type A connector)
Features and capabilities
Backup : ABC-02
LED Indicators
LED Per Port
Power Requirements
Input Current 0.5 A @ 110-220 VAC, 0.3 A @ 110-220 VDC
Power Input Plugin ( Redundant )
Input Voltage 110-220 VAC, 110-220 VDC (88 to 300 VDC, 85 to 264 VAC), Dual power inputs
Operating Voltage 110-220 VDC/VAC
Power Consumption -
General
Fan / Fanless Fanless
MTBF 688,584 hrs
Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation
Physical Characteristics
Dimensions 74 x 148 x 120 mm (2.91 x 5.83 x 4.72 in)
Housing -
Installation DIN-rail mounting
Operating Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, EN 61000-4-11; Power Substation: IEC 61850-3 Edition 2.0 Class 2, IEEE 1613; Railway: EN 50121-4; Safety: IEC 62368-1, UL 62368-1; IP30; Telcordia (Bellcore) Standard TR/SR
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 1476 g (3.25 lb)
Standards and protocols
Protocols and work standards Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring, MRP, HSR, PRP, Coupling, RSTP grouping
Protocols and management standards HTTPS, Dying Gasp, Back Pressure, Flow Control, DHCP Option 66/67/82, Fiber check, Flow control, LLDP, Port Mirror, SNMP, Inform, BOOTP, DHCP Server/Client, HTTP, IPv4/IPv6, RARP, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, IGMP v1/v2/v3, GMRP, GVRP, 802.1Q, QinQ VLAN
Package Checklist
Hardware installation guide
Power adapter
Power cable
