Description

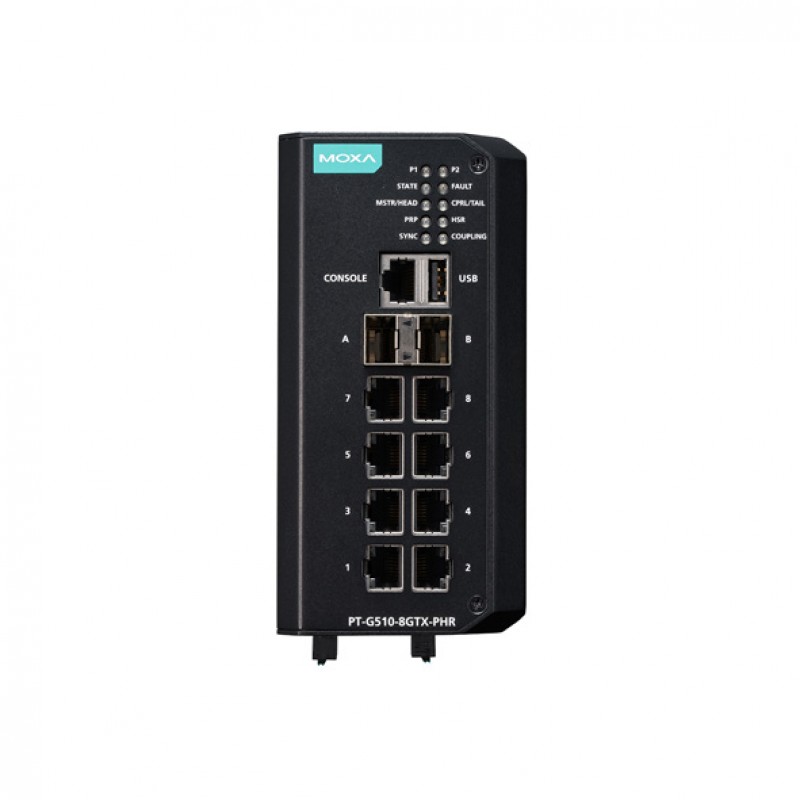

The PT-G510 Series is designed to deliver the highest level
of system availability and data integrity for mission-critical applications in
digital substations that demand zero-recovery-time redundancy. The PT-G510
Series supports PRP/HSR to achieve seamless redundancy for substations and
process automation systems. Hardware-based IEEE 1588v2 PTP is also supported
for time-critical applications. Featuring a highly durable design, the PT-G510
Series is certified for IEC 61850-3 Edition 2 Class 2 to fulfill demanding
requirements in substation applications.
The PT-G510 Series comes with eight 100/1000BaseT(X)
Ethernet ports or 100/1000BaseSFP slots with two dedicated 100/1000BaseSFP
PRP/HSR ports combined with support for a complete redundancy protocol suite
including PRP, HSR, MRP, STP, MSTP, and RSTP for maximum network reliability.
The PT-G510 Series further supports GOOSE Check to efficiently monitor GOOSE
packets and features a built-in MMS server based on IEC 61850-90-4 switch data
modeling for power SCADA systems.
You can also find the PT-G510-8GTX-PHR-HV-CT, PT-G510-8GTX-PHR-HV, and PT-G510-8GTX-PHR-WV models in the DIN-Rail Ethernet Switches.
You can explore our wide range of products and enquire about
the MOXA PT-G510-8GTX-PHR-WV-CT Managed Ethernet Switch for your industrial automation needs. Our sales experts will pave the
way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the
Middle East.
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 8 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 2 Ports |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x RS-232 Console Port (RJ45 connector), 1 x USB Port (Type A connector) |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 1.1 A @ 24-48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 24-48 VDC (18 to 72 VDC), Dual power inputs |
| Operating Voltage | 24-48 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 688,584 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 74 x 148 x 120 mm (2.91 x 5.83 x 4.72 in) |
| Housing | - |
| Installation | DIN-rail mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, EN 61000-4-11; Power Substation: IEC 61850-3 Edition 2.0 Class 2, IEEE 1613; Railway: EN 50121-4; Maritime: DNV, IEC 60945; Safety: IEC 62368-1, UL 62368-1; IP30; Telcordia (Bellcore) Standard TR/SR |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 1476 g (3.25 lb) |
| Standards and protocols | |
| Protocols and work standards | Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring, MRP, HSR, PRP, Coupling, RSTP grouping |
| Protocols and management standards | HTTPS, Dying Gasp, Back Pressure, Flow Control, DHCP Option 66/67/82, Fiber check, Flow control, LLDP, Port Mirror, SNMP, Inform, BOOTP, DHCP Server/Client, HTTP, IPv4/IPv6, RARP, SMTP, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, IGMP v1/v2/v3, GMRP, GVRP, 802.1Q, QinQ VLAN |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
