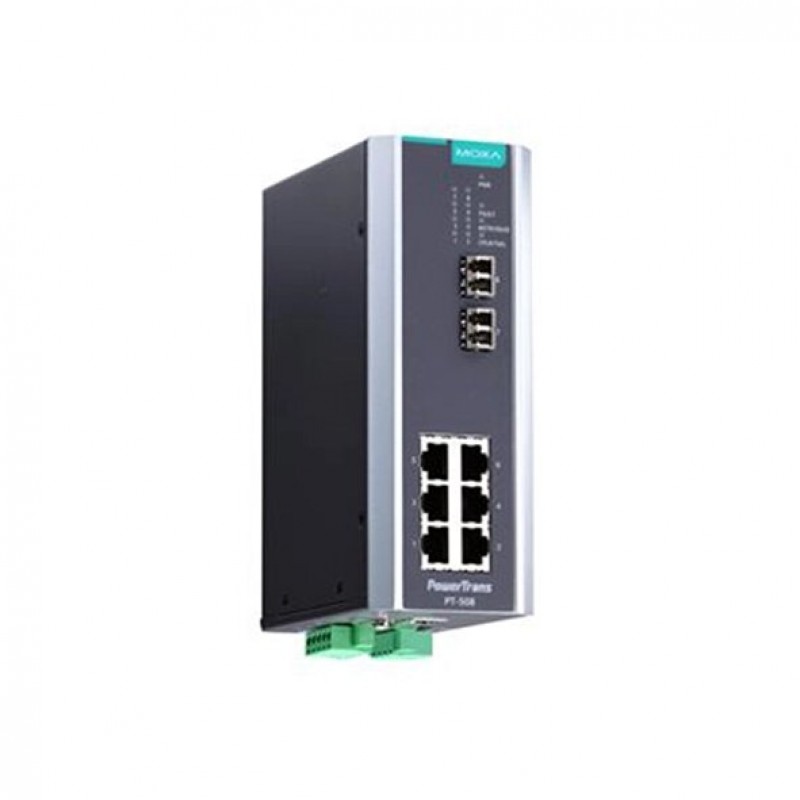

MOXA PT-508-MM-LC-48 Managed Ethernet Switches
- 6 x 10/100BaseT(X) Ports (RJ45 connector)
- 2 x 100BaseFX Ports (multi-mode LC connector)
- 5 KM Typical data transmission distance on fiber
- DIN-rail mounting
- 48 VDC Redundant dual power inputs
- IP40-rated Aluminum body design
- -40 to 85°C operating temperature range
.png)
Description
The PowerTrans PT-508 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall mounting design of the PT-508 switches simplify network planning and allow greater flexibility by letting you install up to 8 Fast Ethernet ports for power distribution applications.
You can also find the PT-508-SS-LC-48, PT-508-SS-LC-24, and PT-508-MM-ST-HV models in the IEC 61850-3 Ethernet Switches.
Inquire about the MOXA PT-508-MM-LC-48 Managed Ethernet Switches, designed
for industrial automation solutions. Feel free to get in touch with our sales
team to give you the best solutions at the best global price in the Middle East
(UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 6 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 2 LC Port |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x RS-232 Consoles Port (RJ45 connector), 1 x Alarm Contact Channel |
| Features and capabilities | |
| Backup | : ABC-01 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.12 A @ 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 48 VDC (36 to 72 VDC) |
| Operating Voltage | - |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 394,238 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 60 x 160 x 110 mm (2.36 x 6.30 x 4.33 in) |
| Housing | Aluminum |
| Installation | DIN-rail mounting, DIN-rail mounting (with optional kit) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; Safety: UL 508; IP40; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 995 g (2.21 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
