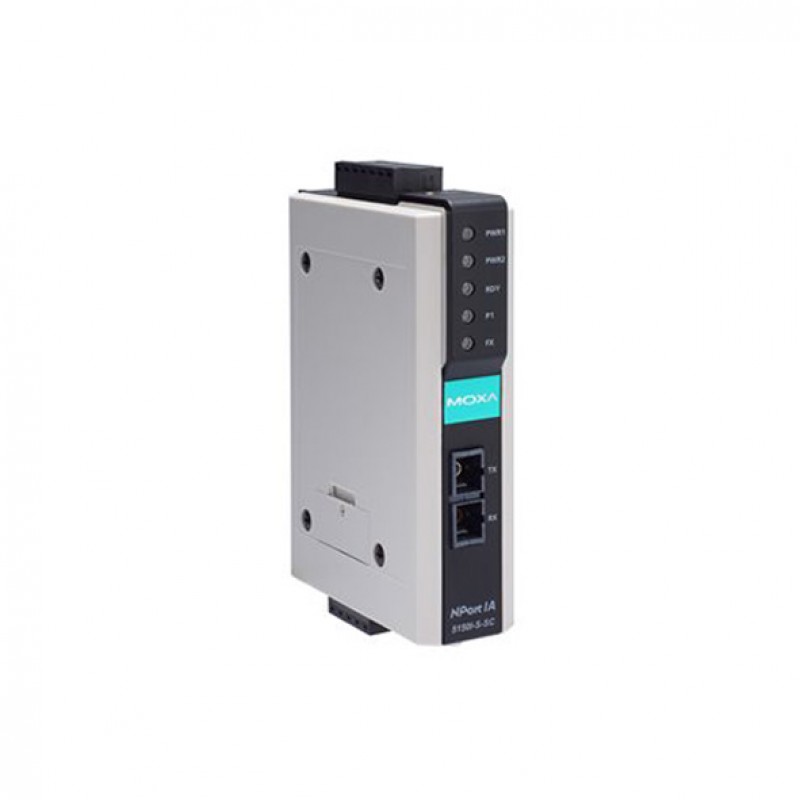

MOXA NPort IA-5150-M-SC Serial to Ethernet Device Server

  • 2 x 100BaseFX Ports (multi-mode SC connector)
  • 1 x RS-232/422/485 Serial port (DB9-M and TB connectors)
  • 5 KM Typical data transmission distance on fiber
  • 12 to 48 VDC Redundant dual power inputs
  • IP30-rated plastic body design
  • DIN-rail mounting installation
  • 0 to 55°C operating temperature

Description

NPort® IA device servers provide easy and reliable serial-to-Ethernet connectivity for industrial automation applications. The device servers can connect any serial device to an Ethernet network, and to ensure compatibility with network software, they support a variety of port operation modes, including TCP Server, TCP Client, and UDP. The rock-solid reliability of the NPort® IA device servers makes them an ideal choice for establishing network access to RS-232/422/485 serial devices such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. All models are housed in a compact, rugged housing that is DIN-rail mountable.

Cascading Ethernet Ports Make Wiring Easy (10/100BaseTX models)

The NPort® IA5150 and IA5250 device servers each have two Ethernet ports that can be used as Ethernet switch ports. One port connects directly to the network or server, and the other port can be connected to either another NPort® IA device server or an Ethernet device. The dual Ethernet ports help reduce wiring costs by eliminating the need to connect each device to a separate Ethernet switch.


You can also find the NPort IA-5150I, NPort IA-5150-T, and NPort IA-5150I-M-SC models in the Serial-to-Ethernet Converters.


Easy World Automation offers the easiest way to buy the MOXA NPort IA-5150-M-SC Serial to Ethernet Device Server in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
10/100Mb RJ45 (Megabit) Ports
100BaseFX Ports : 2 x Multi-Mode with SC connector
Digital Input Channels
Digital Output Channels
Alarm Contact Channels
Magnetic Isolation Protection 1.5 kV (built-in)
Protocols -
Serial Interface
Number of Ports 1 Port
Serial Standards RS-232/422/485
Connector DB9 male for RS-232 and terminal block for RS-422/485
Console Port
Serial Communication Parameters
Baudrate Supports standard baudrates (unit=bps): 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230400
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Isolation
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
Communication details
Wireless Standards
Maximum data transfer speed
Maximum direct range
General
Management DHCP Client, IPv4, SMTP, SNMPv1, Telnet, ARP, BOOTP, DNS, HTTP, TCP/IP, UDP, ICMP, Rtelnet
Compatible operating systems Windows 11, 10, 8.1, 8, 7, Vista, XP, ME, 98 and 95, Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000 and NT, Windows Embedded CE 5.0 and 6.0, Windows XP Embedded
Fixed TTY Drivers macOS versions: 14, 13, 12, 11, and 10.1x, SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5. x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers Kernel versions: 6.x, 5.x, 4.x, 3.x, 2.6.x, and 2.4.x
MTBF 1,175,887 hrs
Automatic Reboot Trigger -
Power Requirements
Connection Terminal block
Input Voltage 12V DC, 0.238A to 48V DC (Dual power inputs)
Input Current 510 mA @ 12 VDC
Security
Security -
Encryption -
Authentication Local database (password only)
Features and capabilities
Display
Physical Characteristics
Dimensions 29 x 89.2 x 118.5 mm (0.82 x 3.51 x 4.57 in)
Installation DIN-rail mounting
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: IEC 60950-1, EN 60950-1, EN 62368-1, UL 508; Maritime: DNV; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia (Bellcore) Standard TR/SR
Housing Plastic
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -40 to 75°C (-40 to 167°F)
Operation Humidity 5 to 95% (non-condensing)
Weight 360 g (0.79 lb)
