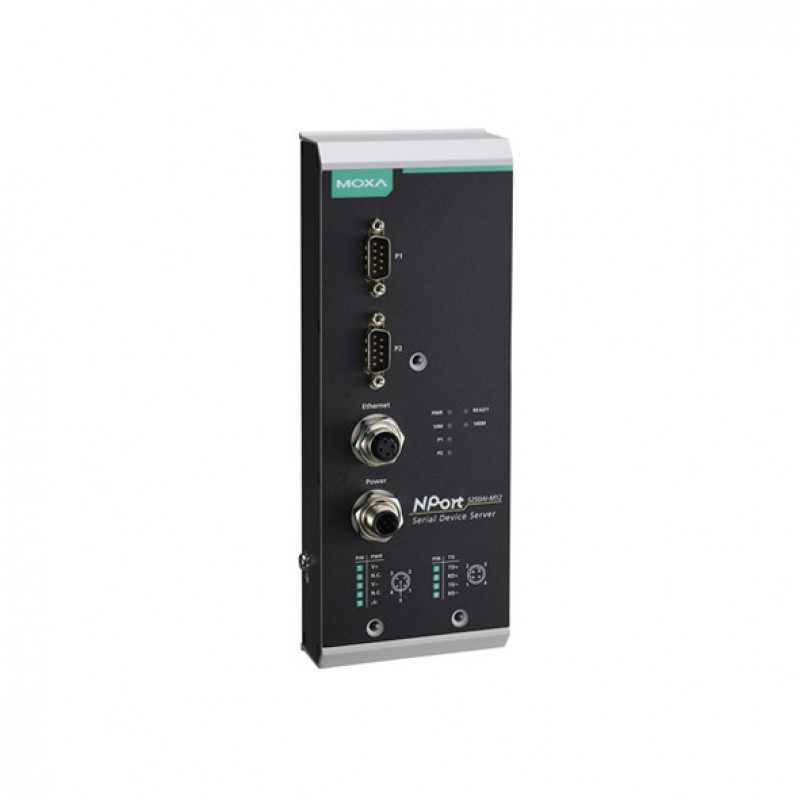

MOXA NPort 5250AI-M12-T Serial to Ethernet Device Server
- 1 x 10/100BaseT(X) Ports (M12 Connector)
- 2 x RS-232/422/485 Serial Ports (DB9-M connector)
- 2 KV Isolation protection for serial ports
- 12 to 48 VDC input power range
- IP40-rated Metal body design
- -40 to 75°C operating temperature
- Brand: MOXA
- Product Code: NPort 5250AI-M12-T
.png)
Description
The NPort 5000AI-M12 serial device servers are designed to make serial devices network-ready in an instant and provide direct access to serial devices from anywhere on the network. Moreover, the NPort 5000AI-M12 is compliant with EN 50121-4 and all mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for rolling stock and wayside applications where high levels of vibration exist in the operating environment.
NPort 5000AI-M12 device servers support SNMP, which can be used to monitor all units over Ethernet. Each unit can be configured to send trap messages automatically to the SNMP manager when user-defined errors are encountered. For users who do not use SNMP Manager, an email alert can be sent instead. Users can define the trigger for the alerts using Moxa’s Windows utility, or the web console. For example, alerts can be triggered by a warm start, a cold start, or a password change.
You can also find the NPort 5150AI-M12, NPort 5250AI-M12, and NPort 5150AI-M12-T models in the Serial-to-Ethernet Converters.
You can Buy the MOXA NPort 5250AI-M12-T Serial to Ethernet Device Server via
inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a
specific time in your location.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 100BaseFX Ports | |
| Digital Input Channels | |
| Digital Output Channels | |
| Alarm Contact Channels | |
| Magnetic Isolation Protection | |
| Protocols | - |
| Serial Interface | |
| Number of Ports | 2 Ports |
| Serial Standards | RS-232, RS-422, RS-485 |
| Connector | DB9 male |
| Console Port | |
| Serial Communication Parameters | |
| Baudrate | Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF |
| Isolation | : 2 KV |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| Communication details | |
| Wireless Standards | |
| Maximum data transfer speed | |
| Maximum direct range | |
| General | |
| Management | ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP |
| Compatible operating systems | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers | SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| MTBF | 639,622 hrs |
| Automatic Reboot Trigger | Built-in WDT |
| Power Requirements | |
| Connection | M12 A-coded 5-pin male connector |
| Input Voltage | 12 to 48 VDC |
| Input Current | 360 mA @ 12 VDC |
| Security | |
| Security | Protocols: SNMPv3, HTTPS (TLS 1.2) |
| Encryption | HTTPS, AES-128, RSA-1024, SHA-1, SHA-256 |
| Authentication | Local database |
| Features and capabilities | |
| Display | |
| Physical Characteristics | |
| Dimensions | 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in) |
| Installation | - |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Safety: UL 60950-1; Vibration: IEC 60068-2-; Green Product: RoHS, CRoHS, WEEE; IP40; Telcordia (Bellcore) Standard TR/SR |
| Housing | Metal |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Weight | 686 g (1.51 lb) |
