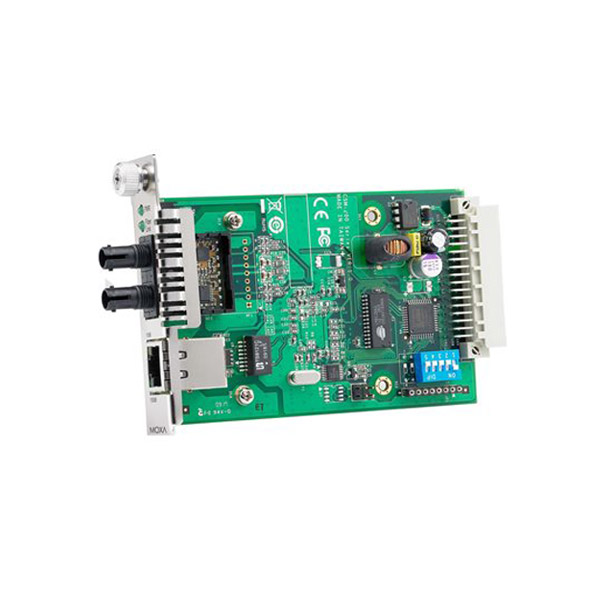

MOXA CSM-200-1213 slide-in Ethernet-to-Fiber Media Converters

MOXA CSM-200-1213 slide-in Ethernet-to-Fiber Media Converters
MOXA CSM-200-1213 slide-in Ethernet-to-Fiber Media Converters
MOXA CSM-200-1213 slide-in Ethernet-to-Fiber Media Converters
MOXA CSM-200-1213 slide-in Ethernet-to-Fiber Media Converters
MOXA CSM-200-1213 slide-in Ethernet-to-Fiber Media Converters

  • 1 x 10/100BaseT(X) Ports (RJ45 connector)
  • 1 x 100BaseFX Ports (multi-mode ST connector)
  • 5 KM Typical data transmission distance on fiber
  • 12 VDC input power range
  • LFP (Link Fault Pass-Through) and FEF (Far End Fault)
  • 0 to 55°C operating temperature range

  • Brand: MOXA
  • Model: CSM-200-1213
0 reviews • Write a review
Datasheet
  • Operating Temperature (0 to 55°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Vibration (IEC 60068-2-6)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter
Quickview
MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Industrial Data Communications , Ethernet Media Converters , Converters , Ethernet-to-Fiber Converters , Industrial Media Converters , Industrial Converters , MOXA CSM-200 Series

The CSM-200 slide-in Ethernet-to-fiber media converters are designed for the NRack System™. The modules provide media conversion from 10/ 100BaseT(X) to 100BaseFX (SC/ST connectors), and can be installed in any NRack System™ chassis.


You can also find the CSM-200-1214 and CSM-200-1218 models in the Industrial Media Converters.


Experience the convenient way to purchase the MOXA CSM-200-1213 slide-in Ethernet-to-Fiber Media Converters in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

eth to fiber : Interface
10/100Mb RJ45 (Megabit) Ports Yes : 1 Port
10/100/1000Mb RJ45 (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
100Mb Fiber optic multi mode (Megabit) Ports Yes : 1 Port (ST connector)
1000Mb Fiber optic multi mode (Gigabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
1000Mb Fiber optic single mode (Gigabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
M12 port No
Alert Output No
Magnetic Isolation Protection 1.5 kV (built-in)
eth to fiber : Standards and protocols
Protocols and work standards IEEE 802.3u for 100BaseT(X) and 100BaseFX
eth to fiber : General
Maximum cable length for data transfer 5 KM
MTBF 1,454,560 hrs
eth to fiber : Power Requirements
Input Voltage 12 VDC
Input Current 180 mA @ 12 VDC
Overload Current Protection Supported
Type of power input -
Power Consumption 180 mA @ 12 VDC
eth to fiber : Physical Characteristics
Standards and Certifications EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Environmental Testing: IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; Telcordia (Bellcore), GB
Housing -
Dimensions 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)
Weight 0.115Kg
Operating Temperature 0 to 55°C (32 to 131°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Installation Can be installed in any NRack System™ chassis
