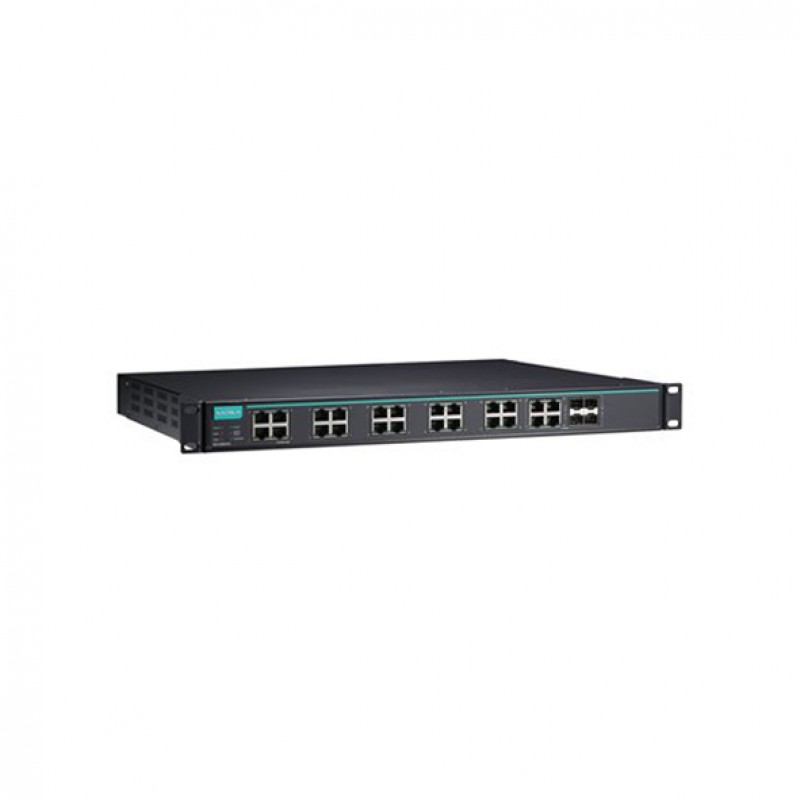

MOXA IKS-G6824A-4GTXSFP-HV-HV Rackmount Ethernet Switches
- 20 x 10/100/1000BaseT(X) Ports (RJ45 connector)
- 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- 110 to 240 VAC Redundant dual power inputs
- Rackmount installation design
- -10 to 60°C operating temperature
Description
Process automation and transportation automation
applications combine data, voice, and video, and consequently require high
performance and high reliability. The IKS-G6824A Series is equipped with 24
Gigabit Ethernet ports and supports Layer 3 routing functionality to facilitate
the deployment of applications across networks, making them ideal for
large-scale industrial networks.
The IKS-G6824A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, are fanless, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
You can also find the IKS-G6824A-20GSFP-4GTXSFP-HV-HV-T, IKS-G6824A-4GTXSFP-HV-HV-T, and IKS-G6824A-8GSFP-4GTXSFP-HV-HV models in the Rackmount Ethernet Switches.
Easy World Automation offers the easiest way to buy the MOXA IKS-G6824A-4GTXSFP-HV-HV Rackmount Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
Interface | |
---|---|
Number of ports | 24 Ports |
10/100Mb RJ45 (Megabit) Ports | |
10/100/1000Mb RJ45 (Gigabit) Ports | : 20 Ports |
100Mb Fiber optic multi mode (Megabit) Ports | |
100Mb Fiber optic single mode (Megabit) Ports | |
100Mb SFP Fiber optic (Megabit) Ports | |
1000Mb SFP Fiber optic (Gigabit) Ports | |
10/100Mb (Megabit) POE Ports | |
10/100/1000Mb (Gigabit) POE Ports | |
Other ports | : 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP), 1 x Alarm Contact Channel, 1 x Digital Input, 1 x USB Port (Type A connector), 1 x Console Port (Type B connector) |
Features and capabilities | |
Backup | : ABC-02 |
LED Indicators | |
LED Per Port | |
Power Requirements | |
Input Current | Max. 0.66 A @ 110 VAC, Max. 0.39 A @ 220 VAC |
Power Input Plugin ( Redundant ) | |
Input Voltage | 110 to 220 VAC |
Operating Voltage | 85 to 264 VAC |
Power Consumption | Max. 37.83 W @ 110 VAC, Max. 40.15 W @ 220 VAC |
General | |
Fan / Fanless | Fanless |
MTBF | 471,418 hrs |
Switch specifications | |
Most forwarding speed | - |
Network working layers | Layer 3 |
Switch type | Managed |
Port Aggregation | |
Physical Characteristics | |
Dimensions | 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in) |
Housing | - |
Installation | Rack mounting |
Operating Temperature | -10 to 60°C (14 to 140°F) |
Operation Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | Safety: UL 62368-1, IEC 62368-1, UL 61010-2-201, EN 61010-2-201; EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Traffic Control: NEMA TS2; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
Storage Temperature | -40 to 85°C (-40 to 185°F) |
Weight | 5.1 kg (11.25 lb) |
Standards and protocols | |
Protocols and work standards | Link Aggregation, MRP, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON, EtherNet/IP, Modbus TCP, PROFINET |
Protocols and management standards | ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4, LLDP, Port, Mirror, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
Package Checklist | |
Hardware installation guide | |
Power adapter | |
Power cable |
