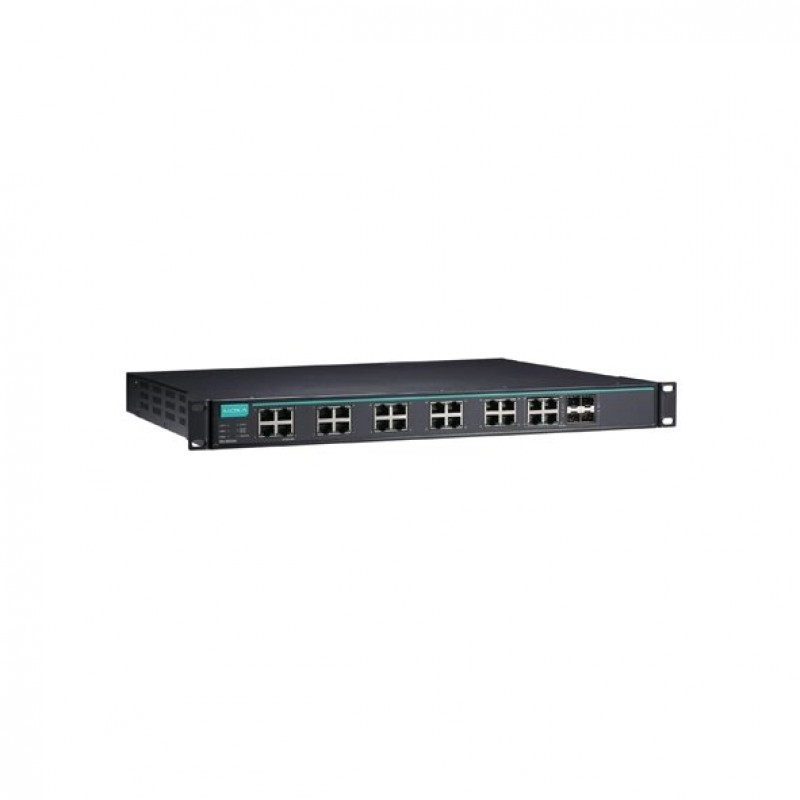

MOXA IKS-G6524A-20GSFP-4GTXSFP-HV-HV Rackmount Ethernet Switch

  • 20 x 100/1000BaseSFP Ports
  • 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
  • Rackmount installation design
  • 110 to 220 VAC Redundant dual power inputs
  • -10 to 60°C operating temperature

  • Brand: MOXA
  • Product Code: IKS-G6524A-20GSFP-4GTXSFP-HV-HV

Description

Process automation and transportation automation applications combine data, voice, and video, and consequently require high performance and high reliability. The IKS-G6524A Series is equipped with 24 Gigabit Ethernet ports.

The IKS-G6524A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, are fanless, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.


You can also find the IKS-G6524A-20GSFP-4GTXSFP-HV-HV-T, IKS-G6524A-4GTXSFP-HV-HV-T, and IKS-G6524A-8GSFP-4GTXSFP-HV-HV-T models in the Rackmount Ethernet Switches.


Easy World Automation offers the easiest way to buy the MOXA IKS-G6524A-20GSFP-4GTXSFP-HV-HV Rackmount Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Interface
Number of ports 24 Ports
10/100Mb RJ45 (Megabit) Ports
10/100/1000Mb RJ45 (Gigabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports : 20 Ports
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
Other ports : 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 1 x Alarm Contact Channel, 1 x Digital Input (+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA), 1 x USB Port (Type A connector), 1 x Console Port (Type B connector)
Features and capabilities
Backup : ABC-02
LED Indicators
LED Per Port
Power Requirements
Input Current Max. 0.66 A @ 110 VAC, Max. 0.39 A @ 220 VAC
Power Input Plugin ( Redundant )
Input Voltage 110 to 220 VAC
Operating Voltage 85 to 264 VAC
Power Consumption Max. 37.83 W @ 110 VAC, Max. 40.15 W @ 220 VAC
General
Fan / Fanless Fanless
MTBF 460,854 hrs
Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation
Physical Characteristics
Dimensions 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)
Housing -
Installation Rack Mounting
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 62368-1, IEC 62368-1, UL 61010-2-201, EN 61010-2-201; EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Traffic Control: NEMA TS2; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 5100 g (11.25 lb)
Standards and protocols
Protocols and work standards Link Aggregation, MRP, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON, EtherNet/IP, Modbus TCP, PROFINET
Protocols and management standards ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, IPv4/IPv6, LLDP, Port Mirror, RMON, SCP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, SMTP, RARP, Flow control, 802.1Q, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3
Package Checklist
Hardware installation guide
Power adapter
Power cable
