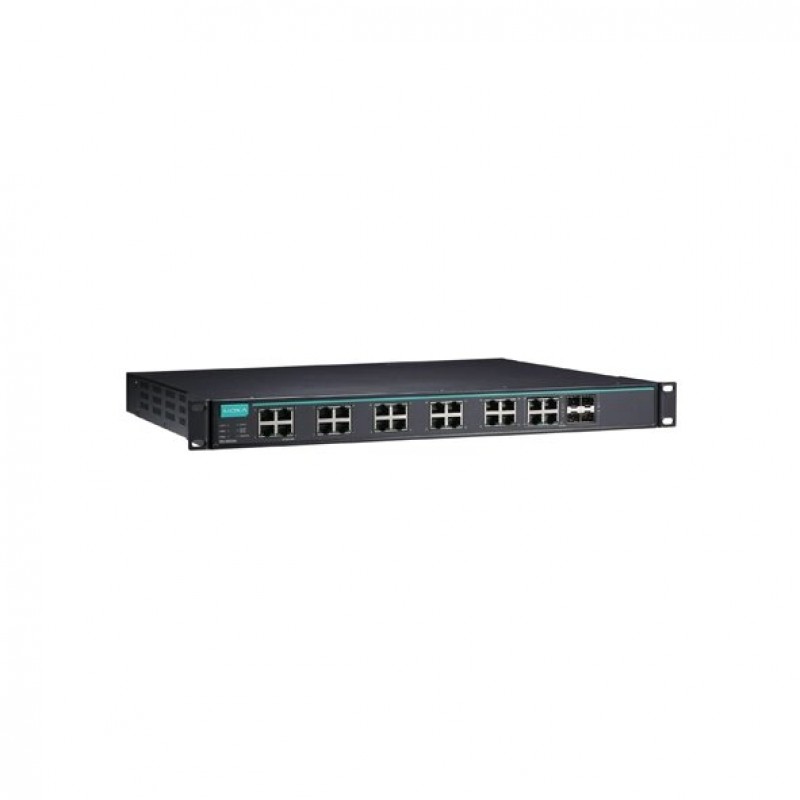

MOXA IKS-G6524A-8GSFP-4GTXSFP-HV-HV Rackmount Ethernet Switch
- 12 x 10/100/1000BaseT(X) Ports (RJ45 connector)
- 8 x 100/1000BaseSFP Ports
- 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
- Rackmount installation design
- 110 to 220 VAC Redundant dual power inputs
- -10 to 60°C operating temperature
.png)
Description
Process automation and transportation automation
applications combine data, voice, and video, and consequently require high
performance and high reliability. The IKS-G6524A Series is equipped with 24 Gigabit
Ethernet ports.
The IKS-G6524A’s full Gigabit capability increases bandwidth
to provide high performance and the ability to quickly transfer large amounts
of video, voice, and data across a network. The switches support the Turbo
Ring, Turbo Chain, and RSTP/STP redundancy technologies, are fanless, and
come with an isolated redundant power supply to increase system reliability and
the availability of your network backbone.
You can also find the IKS-G6524A-8GSFP-4GTXSFP-HV-HV-T,
IKS-G6524A-20GSFP-4GTXSFP-HV-HV, and IKS-G6524A-20GSFP-4GTXSFP-HV-HV-T models in the Rackmount Ethernet Switches.
Enjoy the ease of online
inquiries for the MOXA IKS-G6524A-8GSFP-4GTXSFP-HV-HV Rackmount Ethernet Switch. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 24 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 12 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 8 Ports |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 1 x Alarm Contact Channel, 1 x Digital Input (+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA), 1 x USB Port (Type A connector), 1 x Console Port (Type B connector) |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | Max. 0.66 A @ 110 VAC, Max. 0.39 A @ 220 VAC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 110 to 220 VAC |
| Operating Voltage | 85 to 264 VAC |
| Power Consumption | Max. 37.83 W @ 110 VAC, Max. 40.15 W @ 220 VAC |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 460,854 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in) |
| Housing | - |
| Installation | Rack Mounting |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 62368-1, IEC 62368-1, UL 61010-2-201, EN 61010-2-201; EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Traffic Control: NEMA TS2; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 5100 g (11.25 lb) |
| Standards and protocols | |
| Protocols and work standards | Link Aggregation, MRP, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON, EtherNet/IP, Modbus TCP, PROFINET |
| Protocols and management standards | ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, IPv4/IPv6, LLDP, Port Mirror, RMON, SCP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, SMTP, RARP, Flow control, 802.1Q, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3 |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
