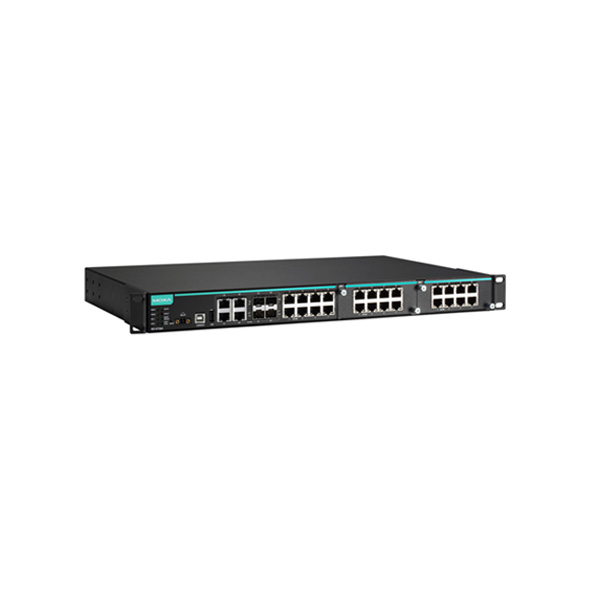

MOXA IKS-6728A-4GTXSFP-24-24-T Rackmount Ethernet Switch
- 8 10/100BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules
- Rackmount
- Metal body
- 2 isolated power supplies (24 VDC)
- -40 to 75°C operating temperature
- 1 kV LAN surge protection for extreme outdoor environments
- Supports MXstudio for easy, visualized industrial network management
- V-ON™ ensures millisecond-level multicast data and video network recovery
.png)
Description
The IKS-6728A Series is designed to meet the demands of
mission-critical applications for business and industry. The IKS-6728A and
IKS-6728A-8PoE come with up to 24 10/100BaseT(X), or PoE/PoE+, and 4 combo
Gigabit Ethernet ports. The IKS-6728A-8PoE Ethernet switches provide up to 30
watts of power per PoE+ port in standard mode, and also support high-power
output of up to 36 watts for heavy-duty industrial PoE devices, such as
weather-proof IP surveillance cameras with wipers/heaters, high-performance wireless
access points, and rugged IP phones.
IKS-6728A-8PoE Ethernet switches support two types of power
input sources: 48 VDC for PoE+ ports and system power, and 110/220 VAC for
system power. These Ethernet switches also support a variety of management
functions, including STP/RSTP, Turbo Ring, Turbo Chain, PoE power management,
PoE device auto-checking, PoE power scheduling, PoE diagnostic, IGMP, VLAN,
QoS, RMON, bandwidth management, and port mirroring. The IKS-6728A-8PoE is
designed especially for harsh outdoor applications with 3kV surge protection to
ensure the uninterrupted reliability of PoE systems.
You can also find the IKS-6728A-4GTXSFP-24-T model in the
Rackmount Ethernet Switches.
Discover industrial automation solutions appropriate to your
needs, and easily inquire about the MOXA IKS-6728A-4GTXSFP-24-24-T Rackmount Ethernet Switch through our user-friendly website via
one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | 8 ports |
| Other ports | 4 10/100/1000BaseT(X) or 100/1000BaseSFP combo ports, 2 slots for Fast Ethernet modules, front cabling |
| Console Port | USB-serial console (Type B connector) |
| Storage Port | USB Type A |
| Alarm Contact | 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Software Features | |
| Management | Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP |
| Filter | 802.1Q, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3 |
| Redundancy Protocols | Link Aggregation, MRP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, V-ON |
| Security | Access control list, Broadcast storm protection, HTTPS/SSL, MAB authentication, NTP authentication, Port Lock, RADIUS, SSH, TACACS+ |
| Time Management | NTP Server/Client, SNTP |
| Industrial Protocols | EtherNet/IP, Modbus TCP, PROFINET |
| MIB | Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB |
| Switch Properties | |
| Priority Queues | 4 |
| Max. Number of VLANs | 64 |
| VLAN ID Range | VID 1 to 4094 |
| IGMP Groups | 2048 |
| MAC Table Size | 16 K |
| Packet Buffer Size | 12 Mbit |
| Jumbo Frame Size | 9.6 KB |
| Power Requirements | |
| Input Voltage | 24 VDC, Redundant dual inputs |
| Operating Voltage | 18 to 36 VDC |
| Input Current | 1.1/0.6 A @ 24/48 VDC, 0.46/0.31 A @ 110/220 VAC |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| General | |
| MTBF | 324,676 hrs |
| Physical Characteristics | |
| Dimensions | 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in) |
| Installation | Rack mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Standards and Certifications | IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 4100 g (9.05 lb) |
| IP Rating | IP30 protection |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Safety | EN 60950-1, UL 60950-1 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class A |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF |
| Rail Traffic | EN 50121-4 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-27 |
| Vibration | IEC 60068-2-27 |
| Marine | ABS, LR, NK, DNV |
