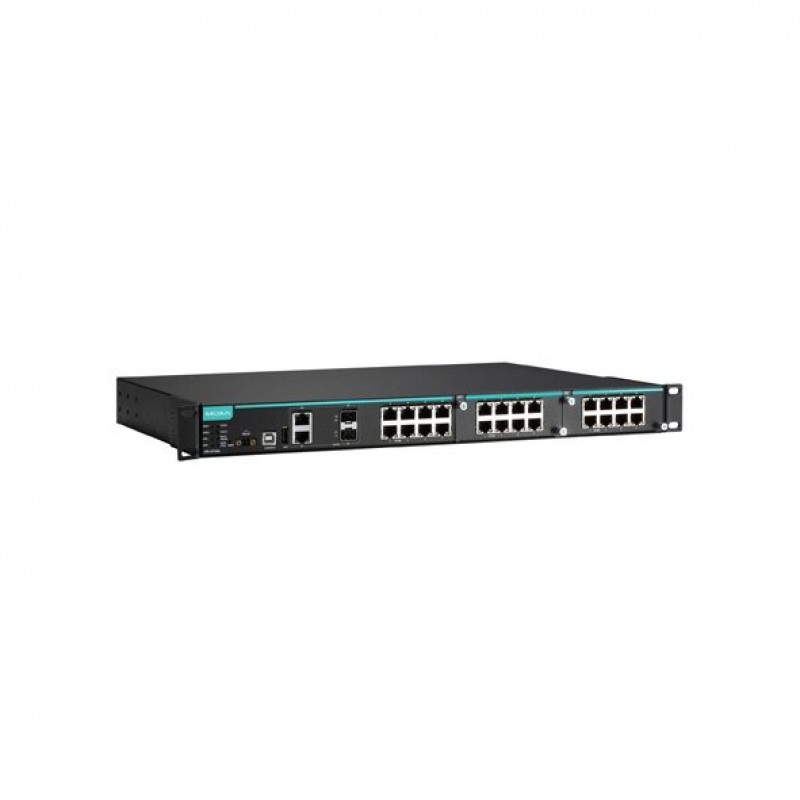

MOXA IKS-6726A-2GTXSFP-HV-T Rackmount Ethernet Switches
- Modular Managed Ethernet Switch
- 8 x 10/100BaseT(X) Ports (RJ45 connector)
- 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)
- 2 x Modular slots for any 8-port or 6-port Fast Ethernet modules
- Rackmount installation design
- 110 to 220 VAC input power range
- -40 to 75°C operating temperature
.png)
Description
The IKS-6726A Series is designed to meet the rigorous
demands of mission-critical applications for industry and business, such as
traffic control systems and maritime applications. The IKS-6726A’s Gigabit and
fast Ethernet backbone, redundant ring, and 24/48 VDC or 110/220 VAC dual
isolated redundant power supplies increase the reliability of your
communications and save on cabling and wiring costs.
The modular design of the IKS-6726A also makes network
planning easy and allows greater flexibility by letting you install up to 2
Gigabit ports and 24 fast Ethernet ports.
Easy World Automation offers the
easiest way to buy the MOXA IKS-6726A-2GTXSFP-HV-T Rackmount Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 26 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 8 Ports (Up to 24 Ports) |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | Up to 12 ports |
| 100Mb Fiber optic single mode (Megabit) Ports | Up to 12 ports |
| 100Mb SFP Fiber optic (Megabit) Ports | Up to 18 Slots |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 2 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP), 2 x Modular slots for any 8-port or 6-port Fast Ethernet modules, 1 x Alarm Contact Channel, 1 x USB Port (Type A connector), 1 x Console Port (Type B connector) |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.28/0.14 A @ 110/220 VAC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 110 to 220 VAC |
| Operating Voltage | 85 to 264 VAC |
| Power Consumption | 29.28/31.92 W @ 110/220 VAC |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 149,151 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in) |
| Housing | - |
| Installation | Rack Mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: EN 60950-1, UL 60950-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Maritime: ABS, DNV, LR, NK; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 4100 g (9.05 lb) |
| Standards and protocols | |
| Protocols and work standards | Link Aggregation, MRP, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, V-ON, EtherNet/IP, Modbus TCP, PROFINET |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port, Mirror, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3 |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
