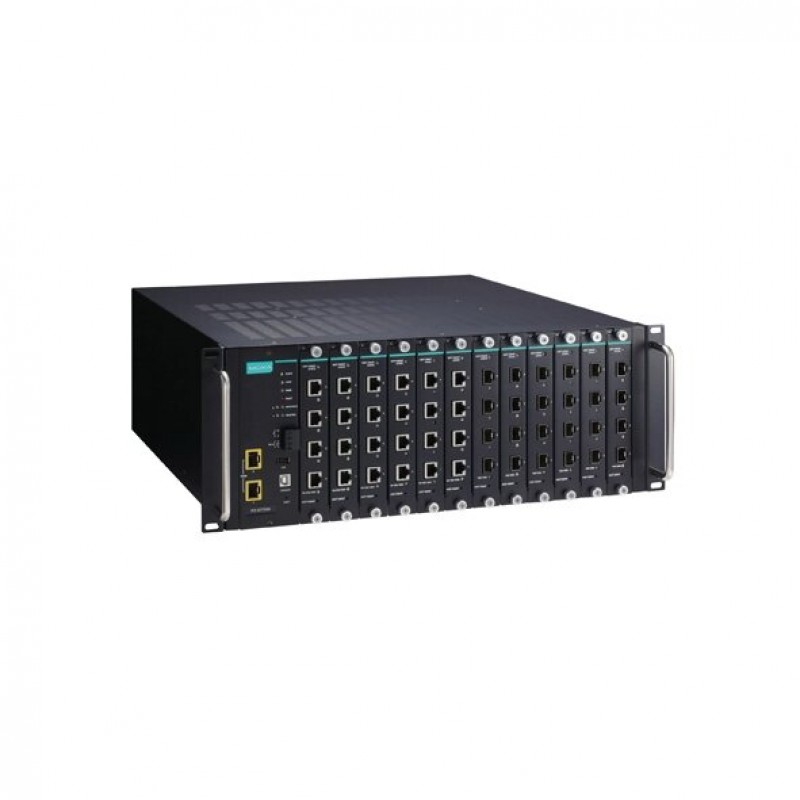

MOXA ICS-G7750A-2XG-HV-HV Rackmount Ethernet Switches
- Modular Managed Ethernet Switch
- 2 x 10GbE SFP+ Slots
- 12 x Slots for 4-port GE interface modules
- 110 to 220 VAC Redundant dual inputs
- Rackmount installation
- -10 to 60°C operating temperature range
.png)
Description
Process automation and transportation automation
applications combine data, voice, and video, and consequently require high
performance and high reliability. The ICS-G7750A Series full Gigabit backbone
switches’ modular design makes network planning easy and allows greater
flexibility by letting you install up to 48 Gigabit Ethernet ports plus 2 10
Gigabit Ethernet ports.
The ICS-G7750A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.
You can also find the ICS-G7748A-HV-HV and ICS-G7752A-4XG-HV-HV in the Rackmount Ethernet Switches.
Experience the convenient way to purchase the MOXA ICS-G7750A-2XG-HV-HV Rackmount Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| Number of ports | 50 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | Up to 48 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | Up to 48 Slots |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | Up to 48 Ports (with IM-G7000A-4PoE module) |
| Other ports | : 2 x 10GbE SFP+ Slots, 12 x Slots for 4-port GE interface modules, 1 x Alarm Contact Channel, 1 x Digital Input (+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA), 1 x USB Port (Type A connector), 1 x Console Port (Type B connector) |
| Features and capabilities | |
| Backup | : ABC-02 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 1.1/0.72 A @ 110/220 VAC, Note: These are the input current ratings for the device with the maximum number of modules installed. |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 110/220 VAC |
| Operating Voltage | 85 to 264 VAC |
| Power Consumption | 109.68/117.8 W @ 110/220 VAC, Note: These are the power consumption ratings for the device with the maximum number of modules installed. |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 282,329 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in) |
| Housing | - |
| Installation | Rack Mounting |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: EN 61010-2-201, UL 61010-2-201; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 12,900 g (28.5 lb) |
| Standards and protocols | |
| Protocols and work standards | Link Aggregation, MRP, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON, EtherNet/IP, Modbus TCP |
| Protocols and management standards | ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SCP, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, BPDU Filter, BPDU Guard, GMRP, GVRP, IGMP v1/v2/v3 |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
