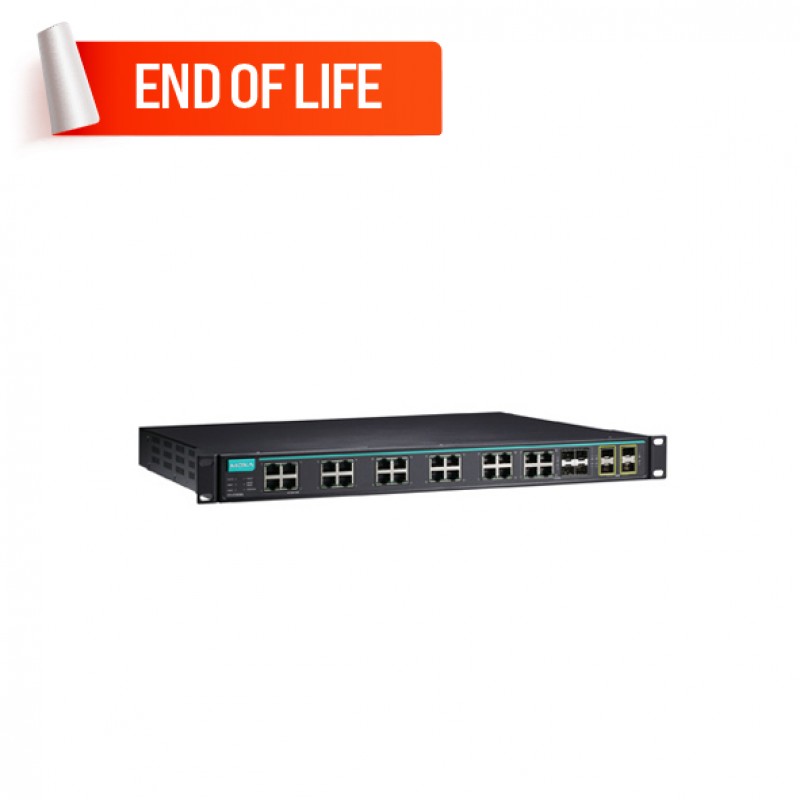

MOXA ICS-G7828A-4GTXSFP-4XG-HV-HV Rackmount Ethernet Switches

  • Layer 3 switching functionality
  • 20 x 10/100/1000BaseT(X) Ports
  • 4 Gigabit Combo ports, 4 x 10Gb SFP+ slots
  • Rackmount installation design
  • 100 to 240 VAC dual power inputs
  • IP30-rated Metal body design
  • -40 to 75°C operating temperature
  • Brand: MOXA
  • Product Code: ICS-G7828A-4GTXSFP-4XG-HV-HV

Description

Process and transportation automation applications combine data, voice, and video, consequently requiring high performance and reliability. The ICS-G7828A Series has 24 Gigabit Ethernet ports plus up to 4 10 Gigabit Ethernet ports. It supports Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large-scale industrial networks.

The ICS-G7828A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.


You can also find the ICS-G7828A-20GSFP-4XG-HV-HV-T, ICS-G7828A-8GSFP-4XG-HV-HV-T, and ICS-G7828A-4XG-HV-HV-T models in the Rackmount Ethernet Switches.


Inquire about the MOXA ICS-G7828A-4GTXSFP-4XG-HV-HV Rackmount Ethernet Switches, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
Number of ports 28 Ports
10/100Mb RJ45 (Megabit) Ports
10/100/1000Mb RJ45 (Gigabit) Ports : 20 Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
Other ports : 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 4 x 10Gb SFP+ slots, 1 x USB Port (Type A connector), 1 x Console Port (Type B connector), 1 x Alarm Contact Channel, 1 x Digital Input (+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA)
Features and capabilities
Backup
LED Indicators
LED Per Port
Power Requirements
Input Current 0.99/0.65 A @ 110/220 VAC
Power Input Plugin ( Redundant )
Input Voltage 100 to 240 VAC
Operating Voltage 85 to 264 VAC
Power Consumption -
General
Fan / Fanless Fanless
MTBF 411,819 hrs
Switch specifications
Most forwarding speed -
Network working layers Layer 3
Switch type Managed
Port Aggregation
Physical Characteristics
Dimensions 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)
Housing Metal
Installation Rack mounting
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: EN 60950-1, UL 60950-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 5500 g (12.14 lb)
Standards and protocols
Protocols and work standards Link Aggregation, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON, EtherNet/IP, Modbus TCP, PROFINET
Protocols and management standards ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, IPv4, LLDP, Port Mirror, RMON, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, SMTP, RARP, Flow control, 802.1Q, GMRP, GVRP, IGMP v1/v2/v3, QinQ VLAN
Package Checklist
Hardware installation guide
Power adapter
Power cable
