Description

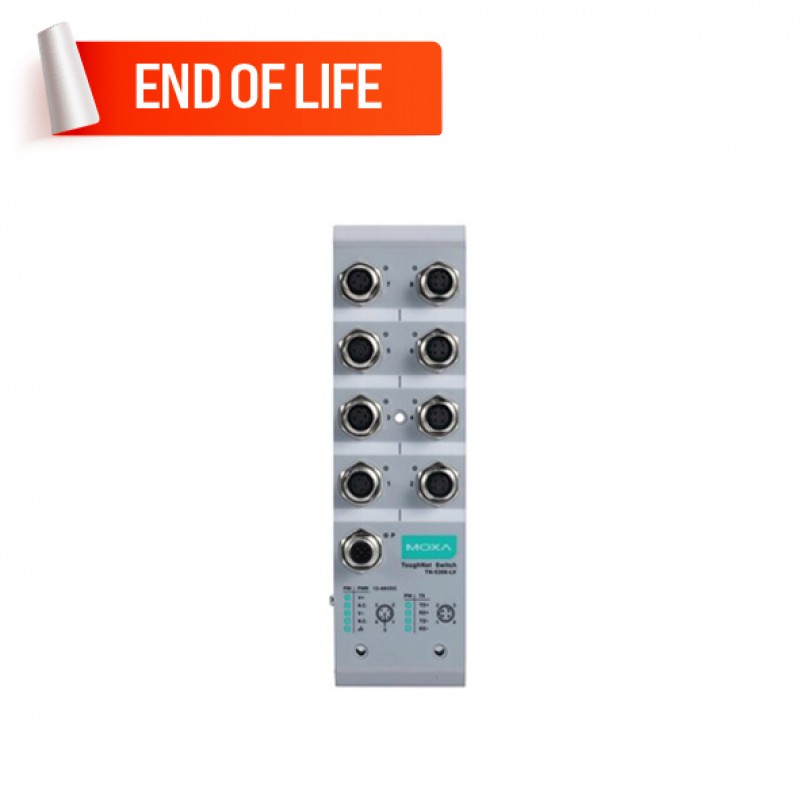

The ToughNet TN-5308 Series M12 unmanaged Ethernet switches
are designed for industrial applications in harsh environments. TN-5308 Series
switches use M12 connectors to ensure tight, robust connections, and guarantee
reliable operation against environmental disturbances, such as vibration and
shock. The TN-5308 Series Ethernet switches provide 8 Fast Ethernet M12 ports,
support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X
auto-sensing, and provide an economical solution for your industrial Ethernet
network.
Models with an extended operating temperature range of -40
to 75°C are also available. TN-5308 Ethernet switches comply with those EN
50155 requirements that make products more suitable for rolling stock
applications, including operating temperature, power input voltage, surge, ESD,
and vibration, making the switches suitable for a variety of industrial
applications. TN-5308 PoE Ethernet switches provide 4 or 8 IEEE 802.3af
compliant PoE ports. These switches are classified as power source equipment
(PSE) and provide up to 15.4 watts of power per port.
You can also find the TN-5308-LV-CT model in the
EN50155 Ethernet Switches.
Easy World Automation offers the easiest way to buy the MOXA TN-5308-LV-CT-T Unmanaged Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| M12 port | : 8 x 10/100BaseT(X) ports with M12 connectors |
| Serial port | |
| USB | |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power | : M12 A-coded male connector |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 8.4 to 60 VDC |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 2,804,342 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | - |
| Switch type | Unmanaged |
| Port Aggregation | - |
| Physical Characteristics | |
| Dimensions | 60 x 216.6 x 36.1 mm (2.36 x 8.53 x 1.42 in) |
| Housing | Metal |
| Installation | DIN-rail mounting (with optional kit), Wall mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3x for flow control |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | Packaged: 485 g (1.07 lb) |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | - |
| Power cable | M12 Power Cable |
