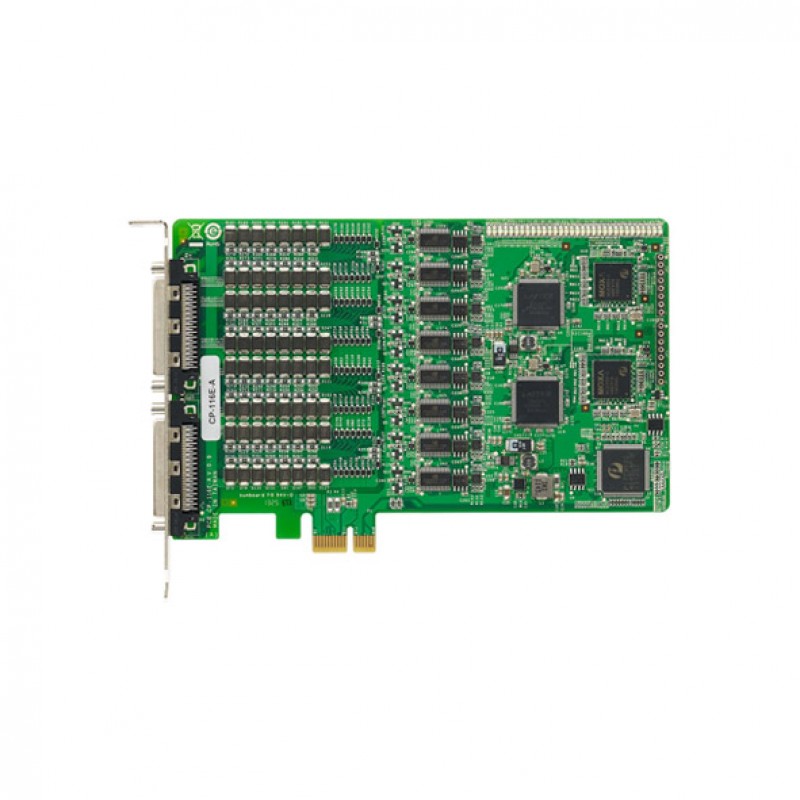

MOXA CP-116E-A w/o Cable PCI Express Serial Board
- 16 x RS-232/422/485 Serial Ports
- PCI Express 1.0 compliant
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Variety of connection cables and boxes available for RS-232/422/485
- Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
- Easy maintenance with built-in LEDs and management software
- Brand: MOXA
- Product Code: CP-116E-A w/o Cable
Description
The CP-116E-A is a smart PCI Express multiport serial board
designed for POS and ATM applications and for use by industrial automation
system manufacturers and system integrators. The CP-116E-A is compatible with
all popular operating systems, and each of its 16 serial ports supports data
rates of up to 921.6 kbps and provides full modem control signals, ensuring
compatibility with a wide range of serial peripherals. In addition, the
CP-116E-A works with PCI Express x1, allowing the board to be installed in any
PCI Express slot.
Setting up an RS-485 network is relatively straightforward. The challenge comes when the power is turned on and the devices connected to the network start transmitting and receiving data. In most cases, engineers will need to further tune the system by configuring pull high/low resistors and terminators at strategic points along with the network. Moxa’s Intelligent RS-485 technology supports two essential features to make it easy: (1) One-Click Installation automatically analyzes the network topology and then adjusts terminators and pulls high/low resistors. (2) One-click troubleshooting tells you what to change to make a deficient network viable.
Experience the convenient way to purchase the MOXA CP-116E-A w/o Cable PCI Express Serial Board and all MOXA PCI Multiport Serial Cards in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide you with the most helpful information about the price and sale conditions for a wonderful buying experience.
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 16C550C compatible |
| Number of Ports | 16 |
| Bus interface | PCI Express 1.0 |
| Serial Standards | RS-232, RS-422, RS-485 |
| Connector | VHDCI 68 |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Stop Bits | 1, 1.5, 2 |
| Parity | |
| Flow Control | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| POWER REQUIREMENTS | |
| Power requirement | 2,733 mA @ 3.3 VDC |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x |
| UNIX Drivers | Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
| GENERAL | |
| MTBF | 310,993 hrs |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 97.9 x 88.9 mm (3.86 x 3.50 in) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC, EMI, EMS, RoHS, CRoHS, WEEE |
