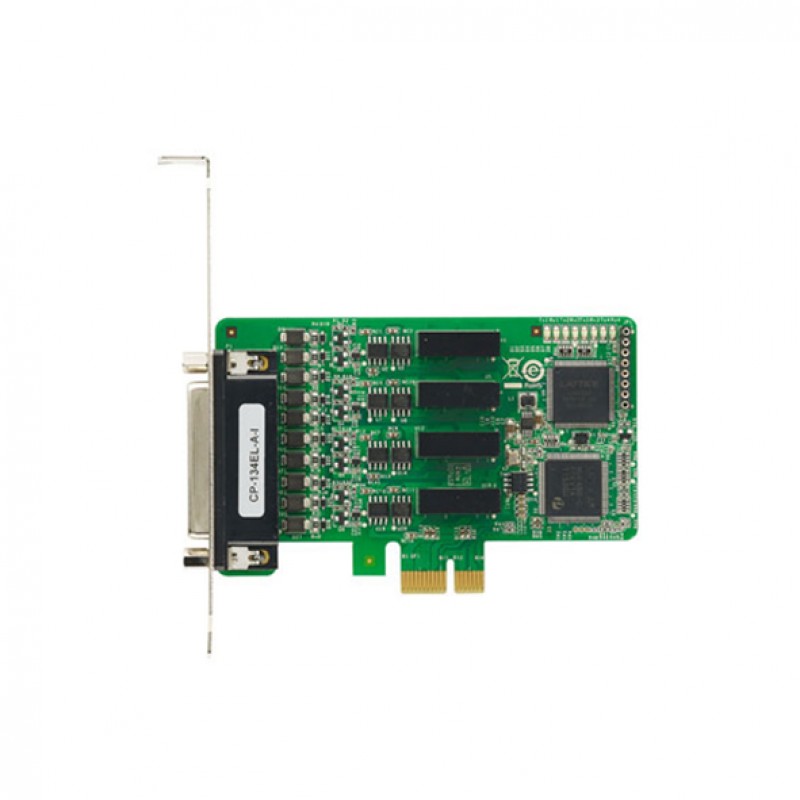

MOXA CP-134EL-A-I-DB9M PCI Express Serial Board
- 4 x RS-422/485 Serial ports (DB44 female connector)
- 2KV Electrical isolation and 4 KV Surge protection for serial ports
- Supports maximum 921.6 kbps baud rate
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible Driver with Windows, Linux, and UNIX
- Included Cable: CBL-M44M9x4-50
- 0 to 55°C Operating Temperature
Description
The CP-134EL-A-I is a smart PCI Express multiport serial
board designed for POS and ATM applications and for use by industrial
automation system manufacturers and system integrators. The CP-134EL-A-I is
compatible with all popular operating systems, and each of its eight serial
ports supports data rates of up to 921.6 kbps and provides full modem control
signals, ensuring compatibility with a wide range of serial peripherals. In
addition, the CP-134EL-A-I works with PCI Express x1, allowing the board to be
installed in any PCI Express slot.
Intelligent RS-485 for Easy Installation and Troubleshooting
Setting up an RS-485 network is relatively straightforward.
The challenge comes when the power is turned on and the devices connected to
the network start transmitting and receiving data. In most cases, engineers
will need to further tune the system by configuring pull high/low resistors and
terminators at strategic points along the network. Moxa’s new Intelligent
RS-485 technology supports two essential features to make it easy: (1)
One-Click Installation automatically analyzes the network topology and then
adjusts terminators and pulls high/low resistors. (2) One-click troubleshooting tells you what to change to make a deficient network viable.
You can also find the CP-134EL-A-I-DB25M and CP-134EL-A-I w/o Cable models in the Multiport Serial Cards.
Easy World Automation offers the easiest way to buy the MOXA CP-134EL-A-I-DB9M PCI Express Serial Board in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the
lowest price through online inquiring. Our sales experts will contact you to
fulfill all your industrial automation needs.
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 16C550C compatible |
| Number of Ports | 4 |
| Bus interface | PCI Express 1.0 |
| Serial Standards | RS-422, RS-485 |
| Connector | DB44 female |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Max. No. of Boards per PC | 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | XON/XOFF, None |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| Isolation | : 2 KV |
| SERIAL SIGNALS | |
| RS-232 | - |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64)/2022, Windows Embedded CE 5.0/ 6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x |
| UNIX Drivers | Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
| POWER REQUIREMENTS | |
| Input Current | 3,414 mA @ 3.3 VDC |
| Input Voltage | - |
| GENERAL | |
| MTBF | 433,077 hrs |
| LED Indicators | Built-in Tx, Rx LEDs for each port |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 67.21 x 103 mm (2.65 x 4.06 in) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 4 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR |
