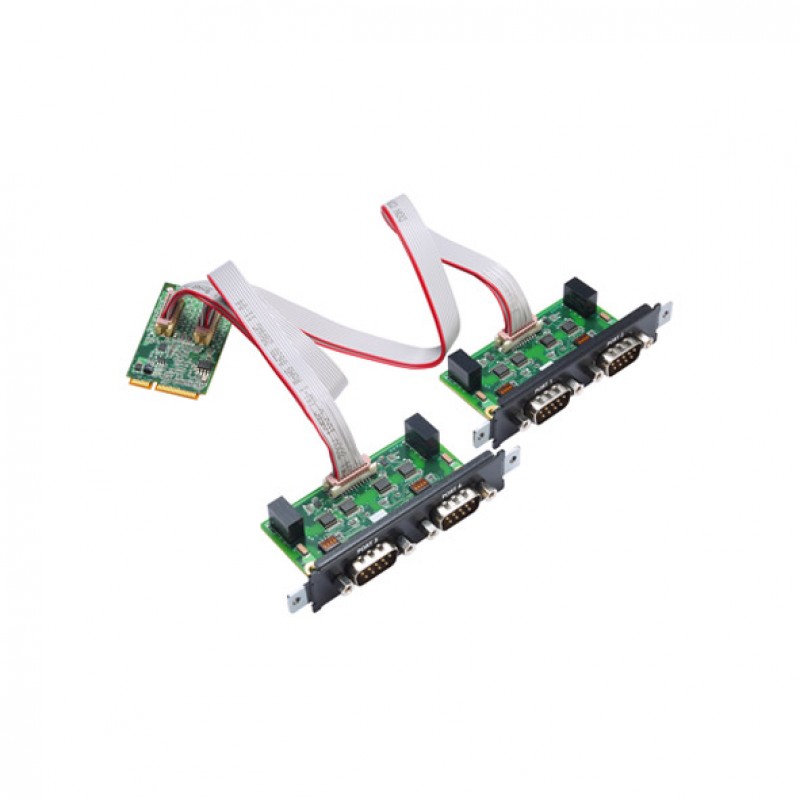

MOXA CP-104N-I-T Mini PCI Express Serial Board
- 2 x RS-232 Serial Ports (DB9 male connector)
- Supports maximum 921.6 kbps baud rate
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible Driver with Windows and Linux
- 2.5 kV Serial Isolation Protection
- -40 to 85°C operating temperature
Description

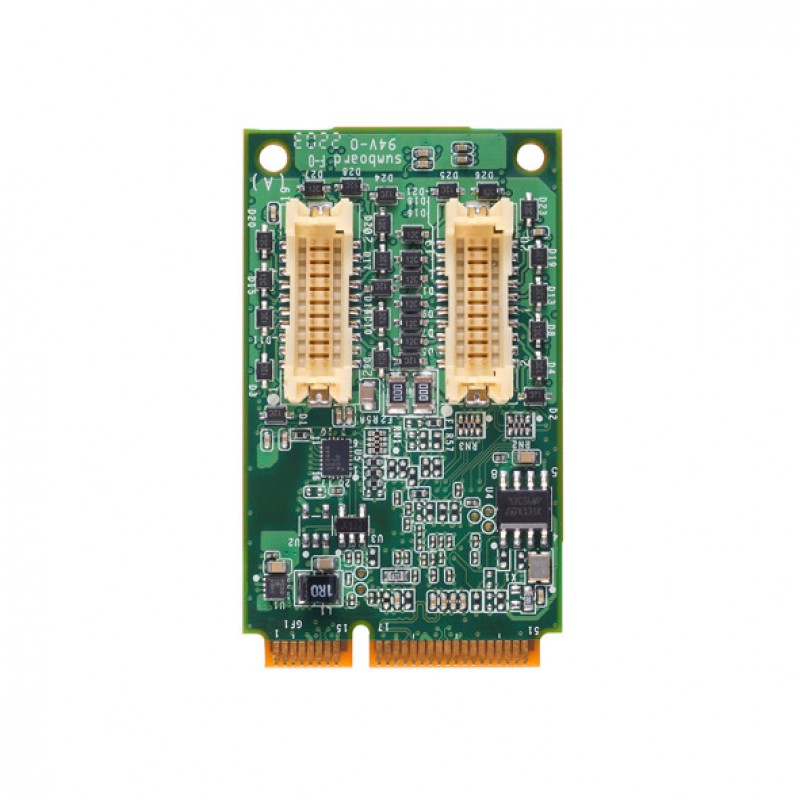

The CP-104N is a Mini PCI Express multiport serial board designed for various applications such as industrial automation systems and industrial PC manufacturers. The CP-104N is compatible with any Mini PCI Express slot. The board requires only a 3.3 VDC power supply, which means it can work with host computers ranging from DIN-rail PCs to standard-sized PCs.
The CP-104N is a top choice for industrial automation engineers and system integrators and supports Windows and Linux operating systems. In addition, the four RS-232 serial ports support a fast 921.6 kbps baud rate. The CP-104N provides full-modem control signals to ensure compatibility with various serial peripherals. It also provides 1 kV line-to-line surge protection and 2.5 kV isolation (for the I model), ensuring compatibility in various industrial environments.
A New Family of Mini PCI Express Multiport Serial Boards for Faster Time to Market
Moxa’s new Mini PCI Express multiport serial board family fulfills the need for customized expansion and enables faster time to market for OEMs and system integrators. It includes Isolated and non-isolated RS-232/422/485 communication cards for various applications.
You can also find the CP-104N-T model in the Multiport Serial Cards.
You can explore our wide range of products and enquire about the MOXA CP-104N-I-T Mini PCI Express Serial Board for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 16C550C compatible |
| Number of Ports | 4 Ports |
| Bus interface | Mini PCI Express |
| Serial Standards | RS-232 |
| Connector | DB9 male |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Max. No. of Boards per PC | - |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, None |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| Isolation | : 2.5 kV |
| SERIAL SIGNALS | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | Windows 7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022 |
| Linux Drivers | Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | - |
| POWER REQUIREMENTS | |
| Input Current | 615 mA @ 3.3 VDC |
| Input Voltage | - |
| GENERAL | |
| MTBF | 2,189,472 hrs |
| LED Indicators | - |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 30 x 50.95 mm (1.18 x 2 in) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR |
