Description
The intelligent C320Turbo serial boards are expandable and flexible COM/TTY solutions for RS-232 applications that require connecting up to 128 serial devices to one computer. The C320Turbo’s on-board CPU and large dual-port memory take the load off-host systems whose performance and scalability are critical for large-scale systems.

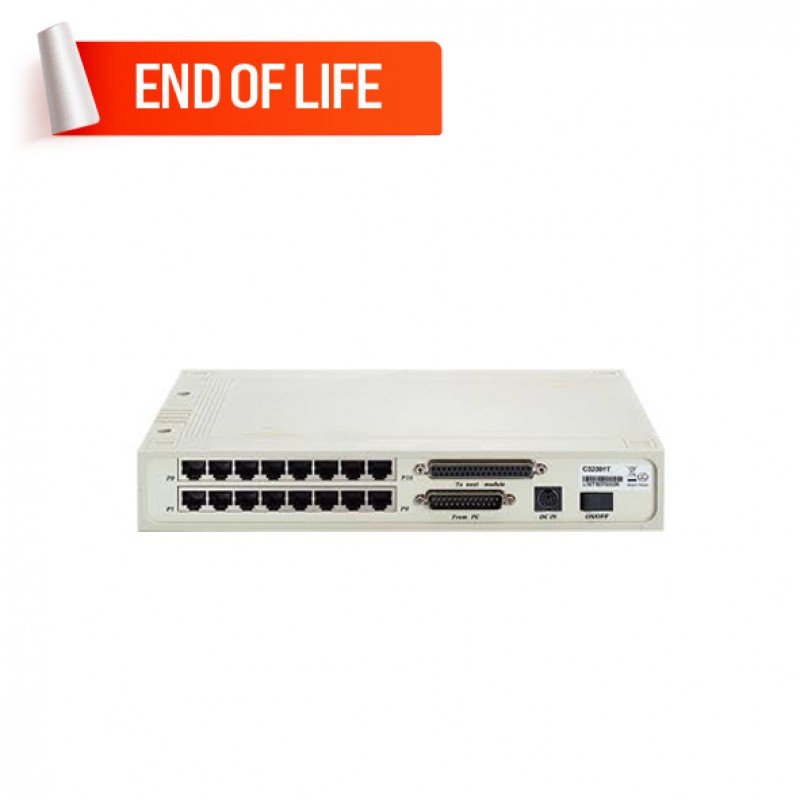

End of Life Product - Replacement Available
Please note that the C320Turbo/PCI Series has been phased out and replaced by the CP-168EL-A Series.
Explore
our extensive range of industrial automation products such as MOXA C32081T UPCI Serial Board in the
Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman). Submit your
inquiry to enjoy the on-time delivery service. Our sales experts will get in
touch with you to fulfill all your industrial automation needs.
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 8 x 16C550C or compatible |
| Number of Ports | 16 Ports |
| Bus interface | 32-bit Universal PCI |
| Serial Standards | RS-232 |
| Connector | 10-pin RJ45 |
| Baudrate | 50 bps to 460.8 kbps |
| Max. No. of Boards per PC | 4 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | - |
| Data Bits | 5, 6, 7, 8 |
| FIFO | - |
| Isolation | |
| SERIAL SIGNALS | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | - |
| RS-485-4w | - |
| RS-485-2w | - |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/ Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2016 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux 2.4.x, 2.6.x, 3.x |
| UNIX Drivers | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
| POWER REQUIREMENTS | |
| Input Current | 1.22 A @ +5 VDC, 0.19 A @ +12 VDC, 0.12 A @ -12 VDC |
| Input Voltage | - |
| GENERAL | |
| MTBF | 305,270 hrs |
| Processor | TMS320BC52-40 RISC CPU |
| LED Indicators | |
| Memory | 512 KB |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 277 x 165 x 44 mm (10.91 x 6.51 x 1.74 in) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -20 to 55°C (-4 to 131°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; MIL-HDBK-217F |
| Weight | 1,120 g (2.47 lb) |
