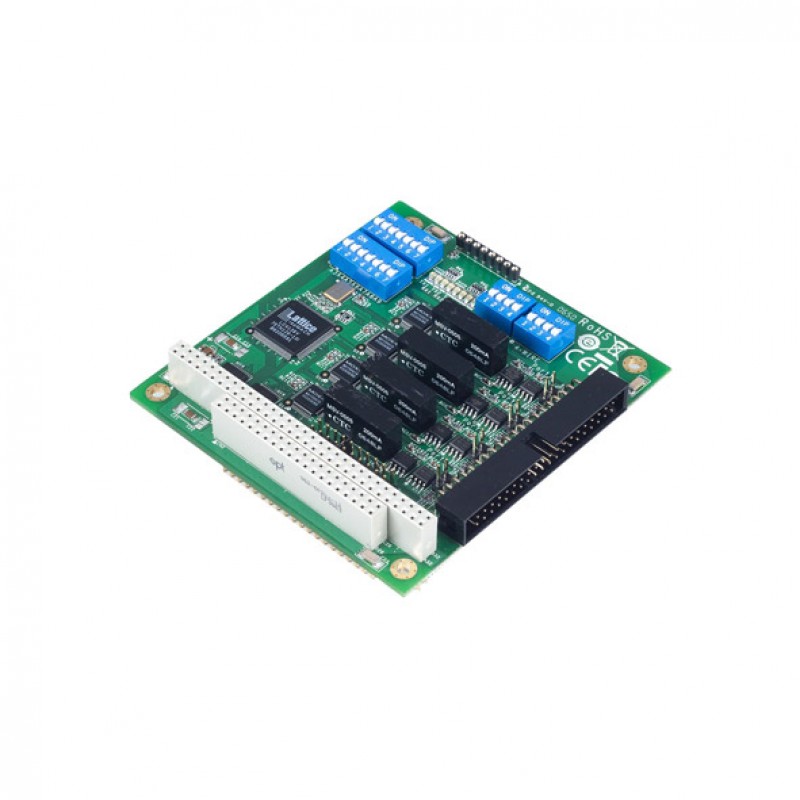

MOXA CA-134I-T Serial Module Board
- 4 x RS-422, RS-485 Serial ports
- 921.6 kbps maximum baudrate for fast data transmission
- On-chip software flow control
- Onboard Tx and Rx LED indicators for each port
- Supports Windows CE 5.0/6.0 and Windows XP Embedded operating systems
- -40 to 85°C Operating Temperature
Description
The CA-134I PC/104 modules are reliable, high-performance, multiport serial communication solutions that have 4 RS-422/485 ports and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices and versatile driver support makes the modules suitable for a wide range of applications.
You can also find the CA-134I model in the PCI Multiport Serial Cards.
Inquire
about the MOXA CA-134I-T Serial Module Board, designed for industrial automation solutions. Feel free to
contact our
sales team to give you the best solutions at the best global price in the
Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 16C550C or compatible x 4 |
| Number of Ports | 4 |
| Bus interface | PC/104 bus |
| Serial Standards | RS-422, RS-485 |
| Connector | 40-pin box header |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Stop Bits | 1, 1.5, 2 |
| Parity | |
| Flow Control | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 64 bytes |
| POWER REQUIREMENTS | |
| Power requirement | 220 mA @ 5 VDC |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x |
| UNIX Drivers | - |
| GENERAL | |
| MTBF | 339,822 hrs |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 90 x 96 mm (3.54 x 3.78 in) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC, EMI, EMS, Environmental Testing, Safety, Vibration, RoHS, CRoHS, WEEE |
