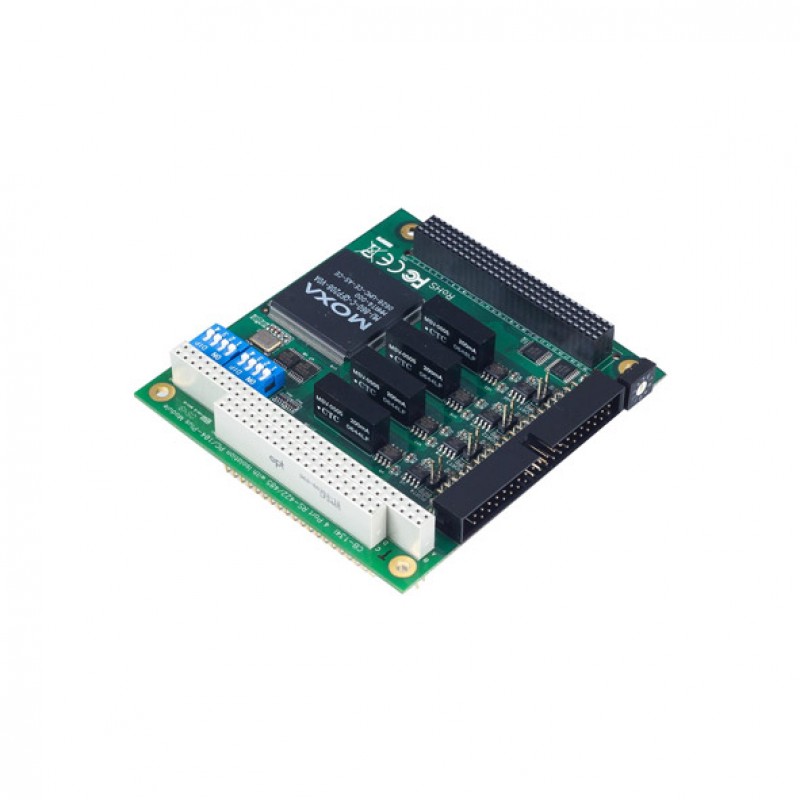

MOXA CB-134I-T Serial Module Board
- 4 x RS-422/485 Serial ports
- 921.6 kbps maximum baudrate for fast data transmission
- On-chip software flow control
- Serial interface is DIP switch selectable
- Onboard Tx and Rx LED indicators for each port
- Supports Windows XP/Vista/7, Windows CE 5.0/6.0, and Windows XP Embedded operating systems
- With PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface
- -40 to 85°C Operating Temperature
Description
The CB-134I PC/104-Plus modules come with 4 RS-422/485 ports and can be used with PC/104-Plus CPU boards that accept the PC/104-Plus expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications. The CB-134I modules can be used on the PC/104-Plus (PCI) bus, and provide a reliable, high-performance solution for multiport serial communication.
You can also find the CB-134I model in the PCI Multiport Serial Cards.
Enjoy the
ease of online inquiries for the MOXA CB-134I-T Serial Module Board. You can submit your inquiry on our
website and get the most friendly communication with our experts to choose
high-quality industrial automation products at a reasonable price from our
Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 16C550C or compatible x 4 |
| Number of Ports | 4 |
| Bus interface | PC/104 plus bus |
| Serial Standards | RS-422, RS-485 |
| Connector | 40-pin box header |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | XON/XOFF, None |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| POWER REQUIREMENTS | |
| Power requirement | 153 mA @ 5 VDC |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x |
| UNIX Drivers | QNX 6, Solaris 10, UnixWare 7 |
| GENERAL | |
| MTBF | 403,631 hrs |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 90 x 96 mm (3.54 x 3.78 in) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC, EMI, EMS, Environmental Testing, Safety, Vibration, RoHS, CRoHS, WEEE |
