Description

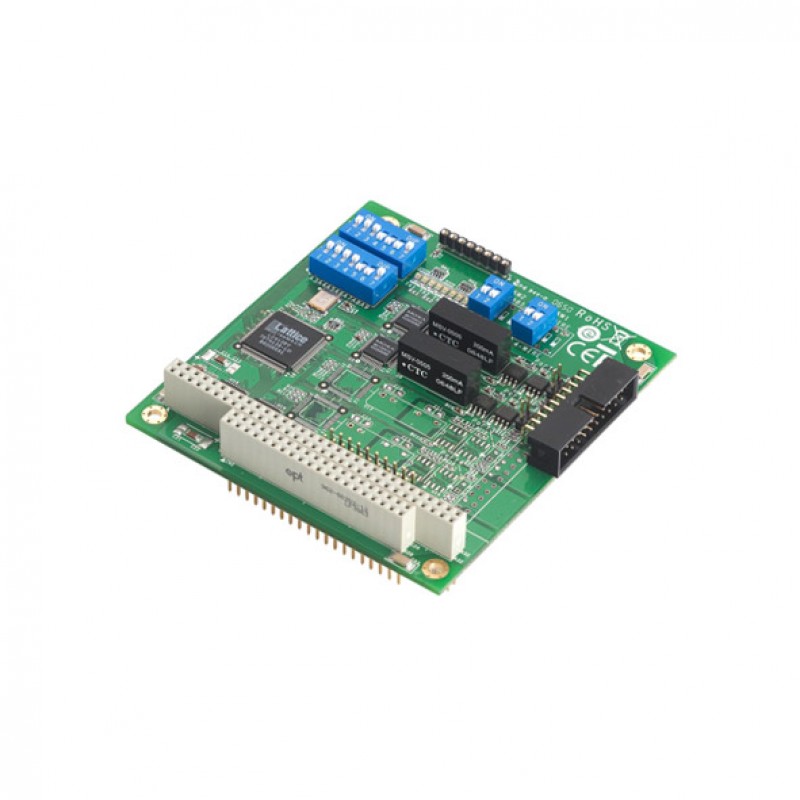

The CA-132/132I PC/104 modules are reliable, high-performance, multiport serial communication solutions that have 2 RS-422/485 ports and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications.
You can also find the CA-132I and CA-132I-T models in the Multiport Serial Cards.
Experience the convenient way to purchase the MOXA CA-132 Serial Module Board in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 16C550C or compatible x 2 |
| Number of Ports | 2 Ports |
| Bus interface | PC/104 bus |
| Serial Standards | RS-422, RS-485 |
| Connector | 20-pin box header |
| Baudrate | 50 bps to 921.6 kbps |
| Max. No. of Boards per PC | 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | XON/XOFF, None |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 64 bytes |
| Isolation | |
| SERIAL SIGNALS | |
| RS-232 | - |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x |
| UNIX Drivers | FreeBSD 4.x, QNX 4, SCO UNIX, OpenServer |
| POWER REQUIREMENTS | |
| Input Current | 155 mA @ 5 VDC |
| Input Voltage | 5 VDC |
| GENERAL | |
| MTBF | 536,288 hrs |
| LED Indicators | Built-in Tx, Rx LEDs for each port |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 90 x 96 mm (3.54 x 3.78 in) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3, IEC 60068-2-14; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB |
