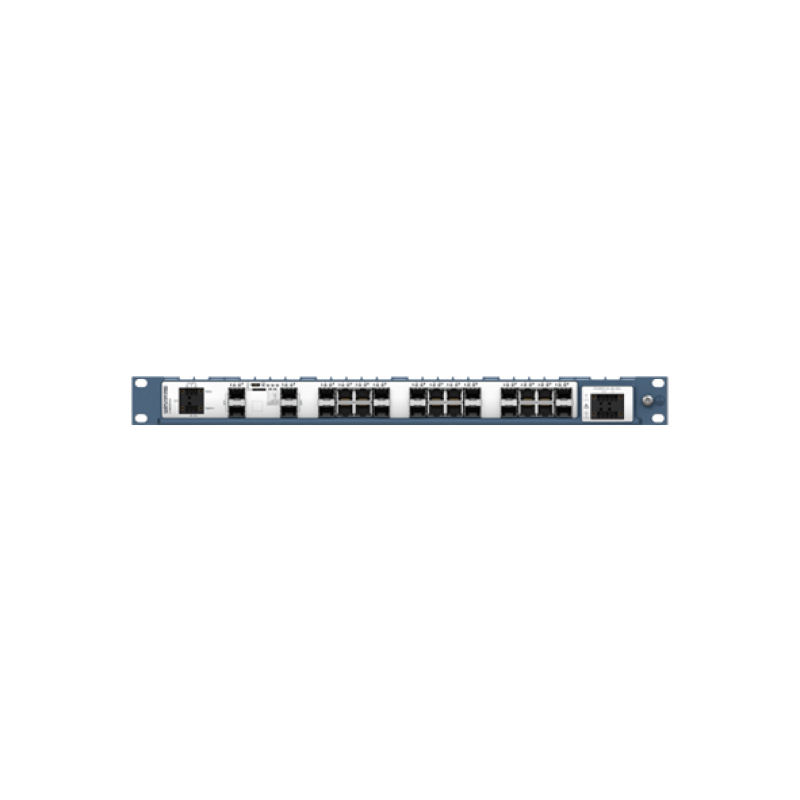

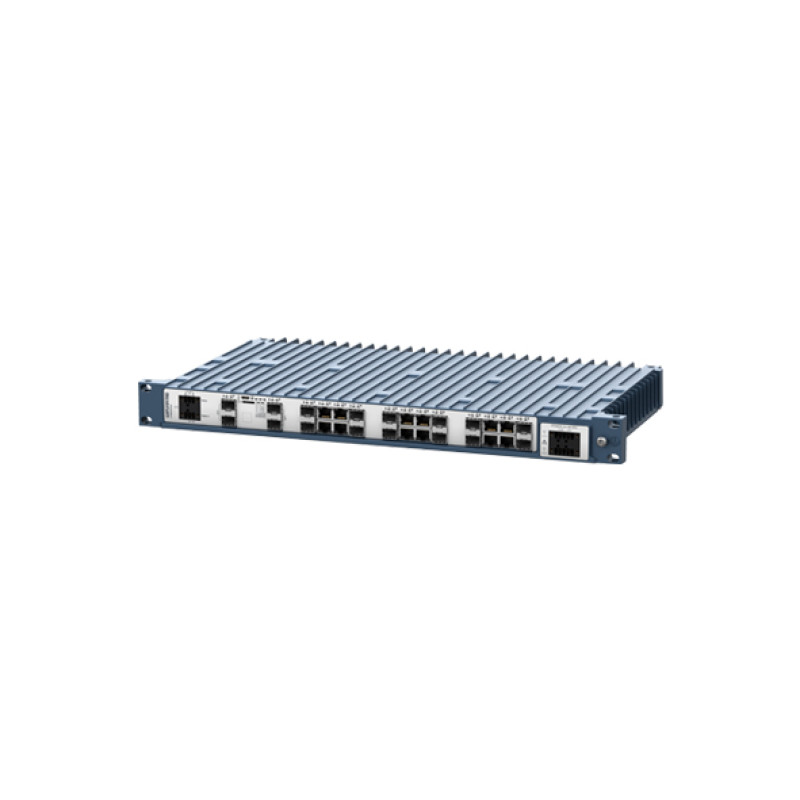

Westermo RedFox-7528-F4G10-F12G-T12G-LV Managed Ethernet Switch
- 19” Rackmount Managed 10G Ethernet Switch - layer 2/3
18 to 60 VDC
- 12 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
- 12 x 100/1000 Mbit/s SFP ports, 4 x 10 Gb uplink SFP+ fiber ports
High level of isolation between interfaces
.png)
Description
The RedFox-7528 Industrial Ethernet switch is designed to be
a workhorse, providing performance and robustness today and for years to come.
In today's world, many applications combine data, voice, and video, and as a
result, high performance and reliability are required. The RedFox-7528 high-performance industrial Ethernet switches provide an ideal solution for these large-scale
industrial networks.
RedFox-7528 is designed for 19” cabinets according to the
ETSI standard, which makes it suitable for use in control room networks as well
as for cabinets installed along railway trackside installations. In addition to
the ultra-rugged IP40 fanless all-metal housing, it is equipped with
configurable I/O fault contacts, which makes it ideal for easy installation and
monitoring in industrial applications.
Powered by WeOS, the Westermo network operating system the
switches are flexible, feature-rich as well as easy to install and configure.
WeOS has been developed to allow cross-platform and future-proof solutions and
can deliver resilient and flexible networks, e.g. the FRNT ring protocol with
very fast failover.
Ensuring the security of industrial data communication
networks is of paramount importance, especially with the nature of cyberattacks
becoming increasingly sophisticated. To reduce risk and increase cyber
resilience, RedFox-7528 has an extensive suite of advanced cybersecurity
features. These can be used to build networks in compliance with the IEC 62443
standard, which defines technical security requirements for data communication
network components.
Explore our extensive range of
industrial automation products such as Westermo RedFox-7528-F4G10-F12G-T12G-LV Managed Ethernet Switch in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales experts
will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 28 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 12 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 12 Ports |
| 10/100Mb (Megabit) POE Prots | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| M12 port | |
| Serial port | |
| USB | : 1 x micro USB |
| Other ports | : 4 x 10 Gb uplink SFP+ fiber ports |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 18 to 60 VDC |
| Power Input Plugin ( Redundant ) | |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | layer 2/3 |
| Switch type | Managed |
| Port Aggregation | IEEE 802.1AX/802.3ad Link Aggregation (LACP and Static) |
| Physical Characteristics | |
| Dimensions | 482.4 x 43 x 258 mm (18.99 x 1.69 x 10.16 inches) |
| Housing | Full metal |
| Installation | Rack mount, Railway applications |
| Operating Temperature | -40 up to +70°C (-40 up to +158°F) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | EMC; EN 50121-4/IEC 62236-4, Railway and telecommunications apparatus ; Safety |
| Storage Humidity | - |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Weight | 3.8 kg |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.1D MAC Bridges, IEEE 802.1Q Static VLAN and VLAN Tagging, IEEE 802.1AB LLDP, IGMPv1/v2/v3 Snooping, Static Multicast MAC filters, IEEE 802.1p Class of Service with flexible classification (VLAN tag priority, IP DSCP/ToS, Port ID), Ingress and Egress Rate limiting, Static IP Address, DHCP Client, DNS Client, DDNS, ZeroConf (mDNS and SSDP), NTP Client (NTPv4), IP Interfaces (Ethernet, VLAN, Loopback and Blackhole), DHCP Server (including options 1, 3, 6, 7, 12, 15, 42, 61 and 82), DHCP Relay Agent (including options 54 and 82), DNS Proxy Server (DNS forwarder and Host records), NTP server (NTPv4), IEEE 1588/PTP Transparent Clock (including Power Profile v1/v2) |
| Protocols and management standards | SNMP MIB Support (read-only), Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Load/save files from/to external memory, Configuration and Deployment using external memory, Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote syslog server), Port monitoring |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | - |
| Power cable | - |
