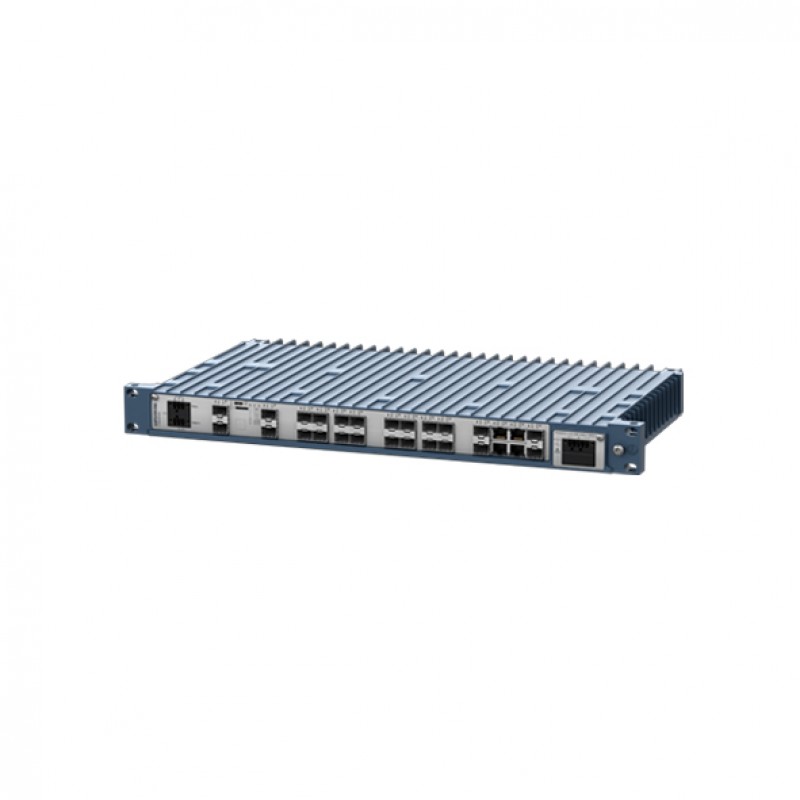

Westermo RedFox-5728-E-F24G-T4G-HV Managed Ethernet Switch
- Layer 3 functionality switching and routing
- 24 x 100/1000 Mbps SFP Fiber ports
- 4 x 10/100/1000 Mbps Copper ports (RJ45 connector)
- IEEE 1588v2 Precision Time Protocol (PTP)
- 110 to 240 VAC/VDC input power range
- Ultra-robust IP40 metal housing
- 19" Rackmount installation design
- -40 to +70°C operating temperature range
.png)
Description
RedFox-5728 takes communication reliability for substations to a new level. We know that in critical substation automation applications, even the loss of a single piece of data can disturb the operations, and that is why RedFox-5728 brings the highest reliability to your network. Withstanding the toughest environmental conditions, including the high EMI levels derived from load switching, lightning strikes, and extreme ambient temperatures, RedFox-5728 ensures 100% uptime, no matter what.
IEC 61850-3 and IEEE 1613 standards define the requirements and test levels for networking devices. They specify two different device reliability classes: Class 1 devices, which allow for communication errors, and Class 2 devices, which do not allow the loss of a single transmission package even during the highest EMI bursts. RedFox 5728 meets or exceeds all test levels for Class 2fulfilment, attaining KEMA-type test gold certification, ensuring zero downtime, communication losses, delays, or errors.
Superior build quality, the exclusive use of industrial-grade components, and extensive in-house testing result in class-leading MTBF and extended service life. Designed to run efficiently from either one or two power inputs, with dual internal power supplies fully isolated from each other and all other interfaces. The 28-port switch has all connectors located at the front for easy access and a range of different port configurations, customizable with SFP transceivers.
For resilient operations in substations, not only is the most robust hardware is needed, but also the most robust software. Available with both layer 2 and layer 3 functionality, RedFox-5728 is powered by the next-generation WeOS operating system, which ensures continuous operation and support for an expanding range of protocols and features. Intuitive setup and configuration enable easy and cost-efficient installation and remove the need for specialized IT support or training. Recognizing the growing sophistication of cyberattacks, an extensive suite of cybersecurity tools is also available.
You can also find the RedFox-5728-E-F4G-T24G-HV, RedFox-5728-E-F4G-T24G-HVHV, RedFox-5728-E-F24G-T4G-HVHV, and RedFox-5728-F24G-T4G-HV in the Managed Ethernet Switches.
Enjoy the ease of online inquiries for the Westermo RedFox-5728-E-F24G-T4G-HV Managed Ethernet Switch. You can submit your inquiry on our website and get the friendliest communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 28 Ports |
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 4 Copper Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 24 Ports |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 1 x Console Port (USB 2.0), 1 x Digital I/O (Detachable screw terminal connector), 1 x Micro SD (Secure Digital 2.0) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.16 A at 240 V AC/DC and, 0.34 A at 110 V AC/DC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 110 to 240 VAC, 50-60 Hz, 110-240 VDC (with Galvanic isolation to all ports) |
| Operating Voltage | 85 to 264 VAC, 47-63 Hz, 85 to 264 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | MIL-HDBK-217F: 386,000 hours, Telcordia: 931,000 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 482.4 x 43 x 258 mm (18.99 x 0.12 x 10.16 inches) |
| Housing | Full metal |
| Installation | Rack mounting |
| Operating Temperature | -40 to +70 °C (-40 to +158 °F) |
| Operation Humidity | 5-95% relative humidity |
| Standards and Certifications | EMC: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus, EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments, EN/IEC 61000-6-5, Immunity power station and substation environments; EMI: FCC Part 15.105 class A; Substation Automation: IEEE 1613, Testing Requirements for Communications Networking Devices Installed in Electric Power Substations, IEC 61850-3, Communication networks and systems for power utility automation – Part 3: General requirements; Marine: DNV GL rules for classification - Ships and offshore units; Safety: EN/IEC/UL 61010-1, Safety requirements for electrical equipment for measurement, control, and laboratory use - Part 1: General requirements, EN/IEC/UL 61010-2-201, Safety requirements for electrical equipment for measurement, control and laboratory use - Part 2-201: Particular requirements; Ingress protection: IP40; MIL-HDBK-217F; Telcordia; Shock: IEC 60255-21-2, Vibration: IEC 60255-21-1, IEC 60255-21-3, EN 60068-3-3, EN 60068-2-64, IEEE 1613 |
| Storage Temperature | -50 to +85 °C (-58 to +185 °F) |
| Weight | 3.8 kg |
| Standards and protocols | |
| Protocols and work standards | IEEE 1588v2 Precision Time Protocol (PTP) |
| Protocols and management standards | Westermo configuration tool WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, SSHv2 and Telnet, Local and Central Authentication (RADIUS/TACACS+), Role Based Access Control (RBAC), Password Compliance Policy, SNMPv1/v2c/v3, Secure Copy (SCP) for remote file upload and download, Local file management (via HTTP, FTP, TFTP and SCP), Load/save files from/to external memory, Configuration and Deployment using external memory., Tech support button, Flexible alarm and event handling system, RFC5424/RFC3164 Syslog (log files and remote syslog server), Port monitoring |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
