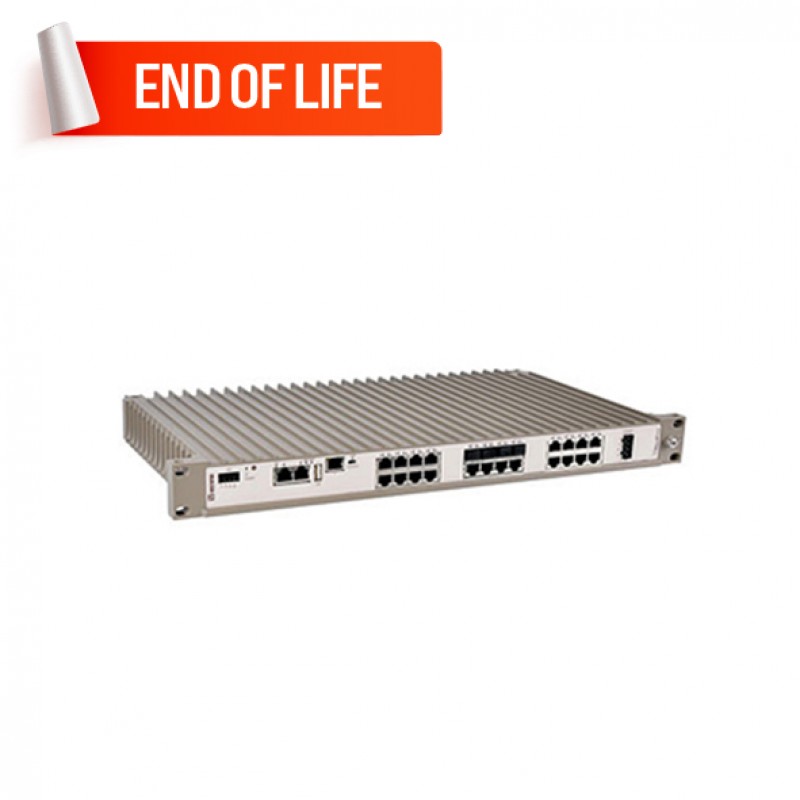

Westermo RFIR-227-F4G-T7G-AC Managed Ethernet Switch
- 100 to 240 VAC 50 to 60 Hz
- 16 x 10/100 Mbit/s, Ethernet TX, RJ-45
- 19” Industrial Routing Switch AC version
- 7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
- 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX
(LC) or TX SFP (RJ-45)
.png)
Description
The RFIR (RedFox Industrial Rack) is a high performance layer 3 industrial Ethernet switch designed for high network traffic applications. Various port configurations are available that can be further customised with SFP transceivers. RFIR is powered by the Westermo WeOS network operating system.
RFIR is designed for 19” cabinets according to ETSI standard making it suitable for use in control room networks as well as for cabinets installed along railway trackside installations. RFIR is designed to run efficiently from a AC power supply, the unit is also equipped with configurable I/O fault contact that make it ideal for easy installation and monitoring in industrial applications. Only industrial grade components are used which gives RFIR an MTBF of 120 000 hours that ensures a long service life. A wide operating temperature range -40 to +55 °C (-40 to +131 °F) can be achieved with no moving parts or cooling holes in the case. RFIR has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside application.
WeOS has been developed by Westermo to allow us to offer cross platform and future proof solutions. WeOS can deliver unique IP security functionality for this class of product, for instance a Multiport DMZ can be constructed by utilising the internal port based firewall function. Remote secure access to a network can be provided using encrypted VPNs.
For more WeOS functionality, please see the WeOS datasheet.
You can place an order for the Westermo RFIR-227-F4G-T7G-AC Managed Ethernet Switch, which is applicable in the Railway Transportation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
| Interface | |
|---|---|
| Number of ports | 27 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 16 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 7 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Prots | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| M12 port | |
| Serial port | |
| USB | : 1 USB 2.0 port and 1 Micro-B port |
| Other ports | : 4 Combo 1000Mbps ports and 4 digital input and output ports |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 100V AC,0.38A or 240V AC, 0.24A |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | |
| MTBF | 120,000 hour |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | - |
| Physical Characteristics | |
| Dimensions | 466x258x43mm |
| Housing | - |
| Installation | Rackmount |
| Operating Temperature | -40 to 55 ° C |
| Operation Humidity | 5% to 95% RH |
| Standards and Certifications | EN 50121-4, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, IEC 62236-4,UL/IEC/EN 60950-1, UL/IEC/EN 60950-1 ,IP40 |
| Storage Humidity | 5% to 95% RH |
| Storage Temperature | -40 to 85 ° C |
| Weight | 3.8kg |
| Standards and protocols | |
| Protocols and work standards | DNV ,GL |
| Protocols and management standards | - |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
