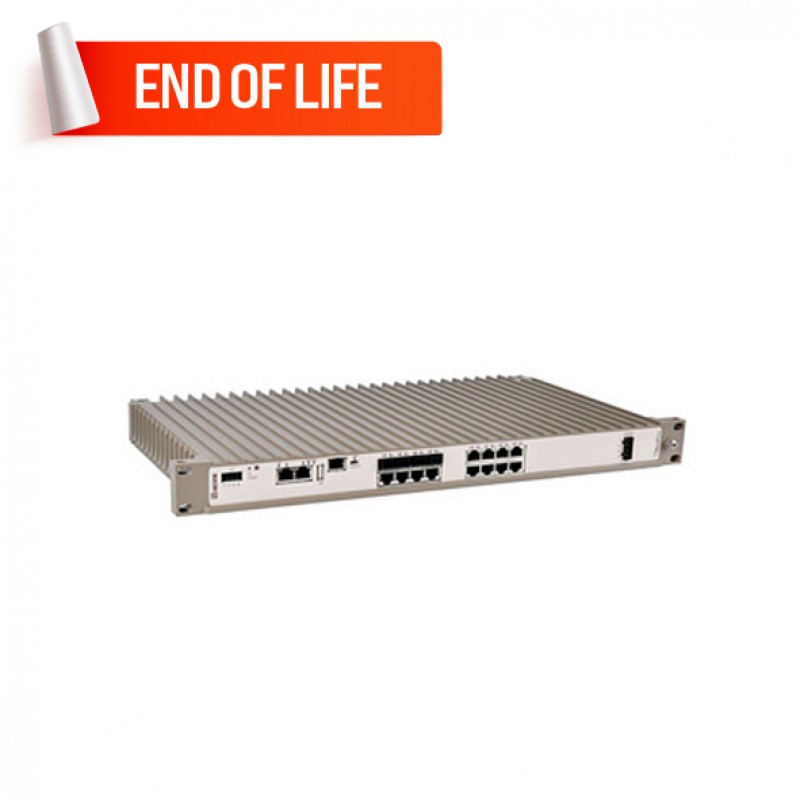

Westermo RFIR-219-F4G-T7G-AC Managed Ethernet Switch
- 100 to 240 VAC 50 to 60 Hz
- 8 x 10/100 Mbit/s, Ethernet TX, RJ-45
- 19” Industrial Routing Switch AC version
- 7 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45
- 4 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX
(LC) or TX SFP (RJ-45)
.png)
Description
The RFIR (RedFox Industrial Rack) is a high-performance layer 2 industrial Ethernet switch designed for high network traffic applications. Various port configurations are available that can be further customized with SFP transceivers. RFIR is powered by the Westermo WeOS network operating system.
RFIR is designed for 19” cabinets according to ETSI standards making it suitable for use in control room networks as well as for cabinets installed along railway trackside installations. RFIR is designed to run efficiently from an AC power supply, the unit is also equipped with configurable I/O fault contact that makes it ideal for easy installation and monitoring in industrial applications. Only industrial-grade components are used which gives RFIR an MTBF of 120 000 hours ensuring a long service life. A wide operating temperature range of -40 to +55 °C (-40 to +131 °F) can be achieved with no moving parts or cooling holes in the case. RFIR has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.
WeOS has been developed by Westermo to allow us to offer cross-platform and future-proof solutions. WeOS can deliver 20 ms ring recovery performance even for networks with video or EtherNet/IP traffic.
For more WeOS functionality, please see the WeOS datasheet.
Inquire about the Westermo RFIR-219-F4G-T7G-AC Managed Ethernet Switch, designed for
industrial automation solutions. Feel free to get in touch with our sales team
to give you the best solutions at the best global price in the Middle East (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 19 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 8 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 7 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Prots | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| M12 port | |
| Serial port | |
| USB | : 1 USB 2.0 port and 1 Console Micro-B port |
| Other ports | Ye s: 4 digital input and output ports and 4 combo ports |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 240V AC, 0.21A or 100V AC, 0.35A |
| Power Input Plugin ( Redundant ) | - |
| General | |
| Fan / Fanless | |
| MTBF | 123,000 hour |
| Switch specifications | |
| Most forwarding speed | 5% to 95% RH |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | - |
| Physical Characteristics | |
| Dimensions | 466x258x43mm |
| Housing | Aluminium |
| Installation | Rackmount |
| Operating Temperature | -40 to 55 ° C |
| Standards and Certifications | EN 50121-4 , EN 61000-6-1,EN 61000-6-2,EN 61000-6-4,IEC 62236-4,UL/IEC/EN 60950-1,IP40 |
| Storage Humidity | 5% to 95% RH |
| Storage Temperature | -40 to 85 ° C |
| Weight | 3.8kg |
| Standards and protocols | |
| Protocols and work standards | DNV ,GL |
| Protocols and management standards | - |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
