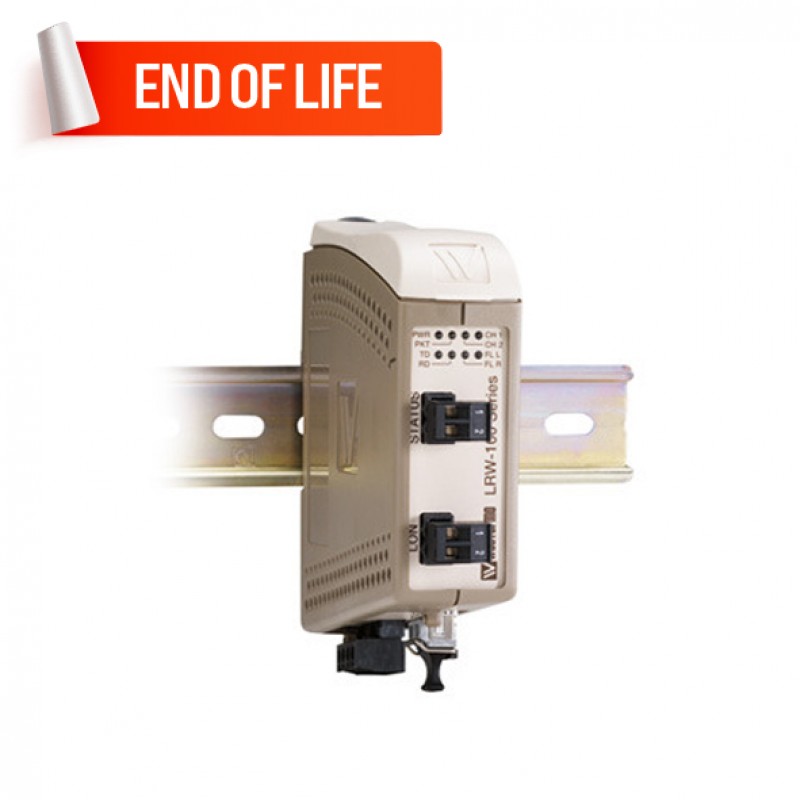

Westermo LRW-102PP-MM-LC2 Fiber Optic Repeater

  • Fiber Optic Repeater for TP/FT-10
  • Point-to-Point Topology Support
  • 1 x Status port (detachable screw terminal connector)
  • 1 x LonWorks®, TP/FT-10 (78.5 kbit/s)
  • 1 x Fiber port (Multimode, Duplex LC connector)
  • 5 KM Typical data transmission distance on fiber
  • DIN-rail mount installation design
  • 10 to 60 VDC/20 to 30 VAC Redundant dual inputs
  • IP21-rated PC / ABS body material design
  • –40 to +60ºC operating temperature range

Description

LonWorks® to fibre optic link, point-to-point applications. The LRW-102PP is a fibre optic modem designed for point-to-point fibre optic connections between LonWorks® networks. The LRW-102PP offers an easy way to extend the distance between LonWorks® 78 kbit/s TP/FT network segments using a fibre optic link.

The LRW-102PP is designed for harsh industrial usage as well as road or railway installations meeting industrial-level EMC specifications and having a wide operating temperature range. The unit also has a re-timing function that eliminates the problem of jitter and hence ensures reliable communications in all situations. The units are well prepared for use in harsh industrial environments. Total galvanic isolation and transient protection are standard for all interfaces. The line interfaces are also equipped with extensive protection against overcurrents and voltage suppression.

The DIN-mounted case of the unit makes it easy to mount. The surrounding air temperature can be between –40 to 70°C. To allow for uninterrupted communication, the units are designed with redundant power inputs that can be powered from two separate supplies and handle an operating voltage range of 10 – 60 VDC.


End of Life Product - Replacement Available

Please note that the LRW-102 has been phased out and replaced by the LRW-702-F2.


Discover industrial automation solutions appropriate to your needs, and easily inquire about the Westermo LRW-102PP-MM-LC2 Fiber Optic Repeater through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
100Mb Fiber optic single mode (Megabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports : 1 Port (Duplex LC connector)
Serial port
USB
Other ports : 1 x Status port (detachable screw terminal connector), 1 x LonWorks®, TP/FT-10 (78.5 kbit/s)
Isolation : Status: TP/FT-10 port and power port; TP/FT-10: Power port and status port
Converter specifications
Data transfer speed ( Baudrate ) LonWorks: 78 kbit/s
Maximum data transmission distance 5 KM
Minimum output power converter –20 dBm
Sensitivity to receiving information –31 dBm
Wavelength 1310 nm
Require cable diameter 62.5/125 and 50/125 mm
Flow Control -
Protocols LonTalk
Serial Signals
RS-232 Signals -
RS-422 Signals -
RS-485-2w Signals -
RS-485-4w Signals -
Power Requirements
Power Consumption (Output Adapter) -
Power Input Plugin ( Redundant )
Overload Current Protection
Reverse Polarity Protection Supported
Input Voltage 12 to 48 VDC, 24 VAC (Wide Range 10 to 60 VDC, 20 to 30 VAC)
Input Current 400 mA @ 12 VDC, 200 mA @ 24 VDC, 100 mA @ 48 VDC
Connector 4-position Detachable screw terminal
General
Fan / Fanless Fanless
MTBF -
Physical Characteristics
Dimensions 34 x 123 x 121 mm (1.33 x 4.84 x 4.76)
Housing PC/ABS
Installation Din-rail mounting
Operating Temperature –40 to +60ºC (–40 to 140ºF)
Operation Humidity 5-95% relative humidity
Standards and Certifications Ingress protection: IP21; EMC: EN 61000-6-1, Immunity residential environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-3, Emission residential environments, EN 61000-6-4, Emission industrial environments; Safety: EN 60950-1, IT equipment; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27
Storage Temperature –40 to +70ºC (–40 to 158ºF)
Weight 0.26 kg
LED Indicators
LED Per Port
Power
