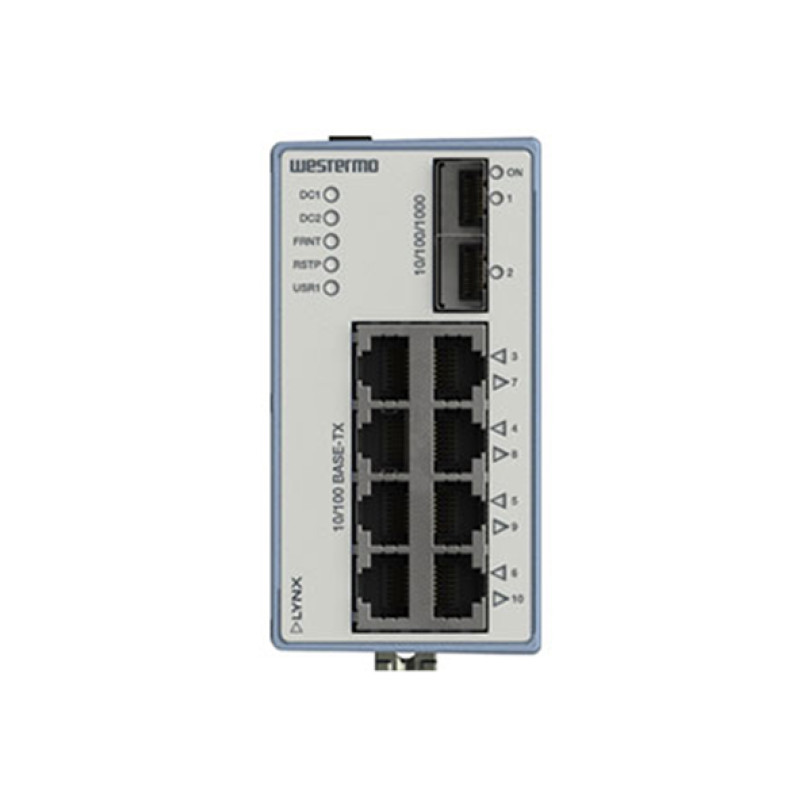

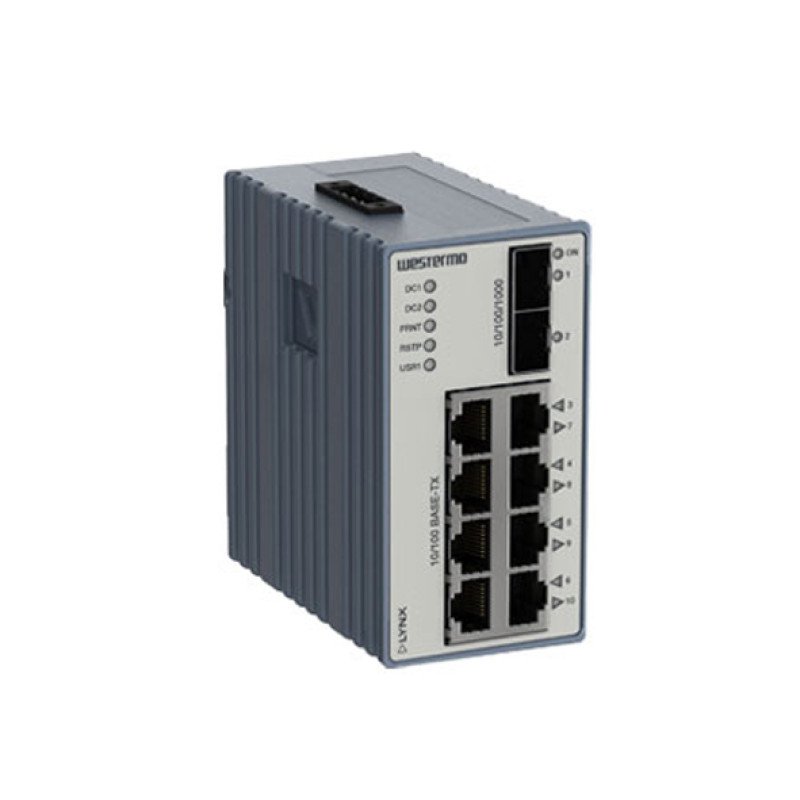

Westermo L110-F2G-12VDC Managed Ethernet Switch

  • Layer 2 functionality switching
  • 8 x 10 Mbit/s, 100 Mbit/s Copper ports (RJ-45 connector)
  • 2 x 100/1000 Mbit/s SFP Ports, Ethernet FX (LC) or TX SFP (RJ-45)
  • IP40-rated Robust metal housing

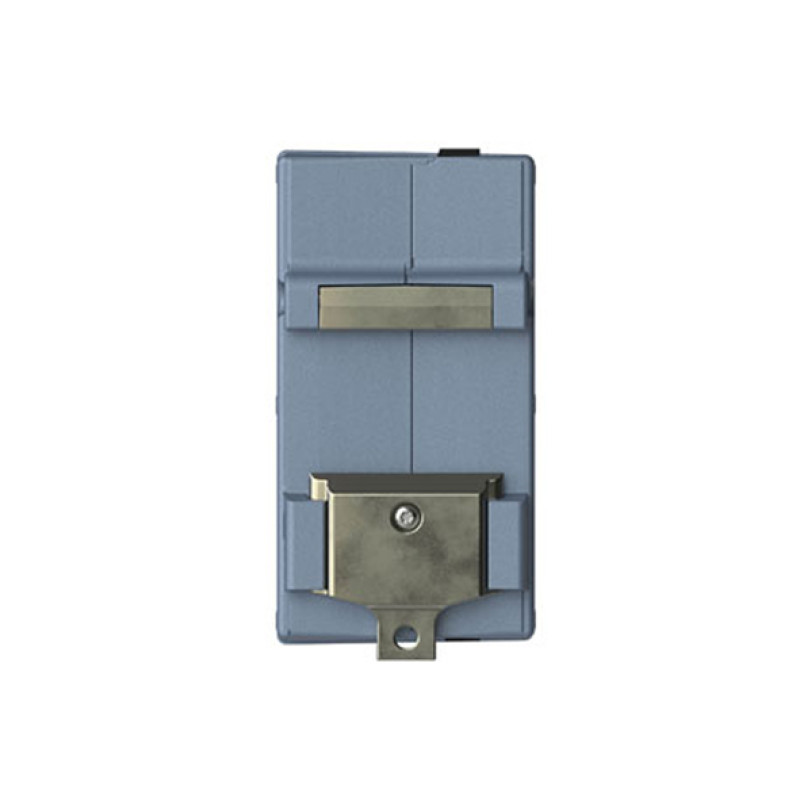

  • DIN rail mount installation
  • 12 to 48 VDC Redundant dual power inputs
  • -40 to +74°C operating temperature range

Description

The Lynx 110 is a layer 2 industrial Ethernet switch, powered by the Westermo WeOS network operating system. Lynx is the most compact and has the lowest power requirements in this class of switch. Lynx has 8 10/100 Mbit/s ports in addition to 2 ports which can be fitted with Gbit or 100 Mbit SFP transceivers.

The Lynx is designed for simple use in industrial applications with its robust DIN rail clip to the configurable fault contact, and industrial-level dual power inputs. Only industrial-grade components are used, which gives the Lynx an MTBF of 630,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.

Westermo has developed WeOS to allow us to offer cross-platform and future-proof solutions. WeOS can deliver 20 ms ring recovery performance even for networks with video or EtherNet/IP traffic.


You can also find the L110-F2G, L108-F2G-S2-12VDC, L210-F2G, and L208-F2G-S2-12VDC models in the Managed Ethernet Switches.


Inquire about the Westermo L110-F2G-12VDC Managed Ethernet Switch, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
Number of ports 10 Ports
10/100Mb RJ45 (Megabit) Ports : 8 Ports (or 10 Mbit/s)
10/100/1000Mb RJ45 (Gigabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports : 2 Ports, Ethernet FX (LC) or TX SFP (RJ-45)
10/100Mb (Megabit) POE Ports
10/100/1000Mb (Gigabit) POE Ports
Other ports : 1 x Digital input channel and 1 x Digital output channel, 1 x Console Port
Features and capabilities
Backup
LED Indicators
LED Per Port
Power Requirements
Input Current 12 VDC: 420 mA; 24 VDC: 220 mA; 48 VDC: 115 mA
Power Input Plugin ( Redundant )
Input Voltage 12 to 48 VDC
Operating Voltage 9.8 to 60 VDC
Power Consumption -
General
Fan / Fanless Fanless
MTBF MIL-HDBK-217-F: 630,000 hours
Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation
Physical Characteristics
Dimensions 52 x 100 x 101 mm (2.04 x 3.93 x 3.97 inches)
Housing Metal
Installation DIN-rail mounting
Operating Temperature -40 to +74°C (-40 to +165°F)
Operation Humidity 5-95% relative humidity
Standards and Certifications MIL-HDBK-217-F; IEC 62443; Ingress protection: IP40; Corrosive gases: IEC 60068-2-60; EMC: EN 61000-6-1, Immunity residential environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-3, Emission residential environments, EN 61000-6-4, Emission industrial environments, EN 50121-4/IEC 62236-4, Railway and telecommunications apparatus; Environmental: NEMA TS2; Safety UL 62368-1, Safety: Communication Technology; Approvals EMI: FCC Part 15.105 class A; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64
Storage Temperature -50 to +85°C (-58 to +185°F)
Weight 0.7Kg
Standards and protocols
Protocols and work standards -
Protocols and management standards WeConfig, Web interface (HTTP and HTTPS), Command Line Interface (CLI) via console port, (SSHv2 and Telnet), Local and central user authentication (RADIUS and TACACS+), SNMPv1/v2c/v3. Secure Copy (SCP), USB configuration and backupb., BOOTP client, flexible alarm/event handling system, Syslog (log files on RAM/USB and remote syslog server), Digital I/O, Persistent Port Monitoring, NTPv4 Client/Server, DHCP client (including options 60 and 61), DHCP server (including options 1, 3, 6, 7, 12, 15, 42, 61, 66, 67, 82, 121 and 249), DHCP relay agent (including options 54 and 82), DDNS
Package Checklist
Hardware installation guide
Power adapter
Power cable
