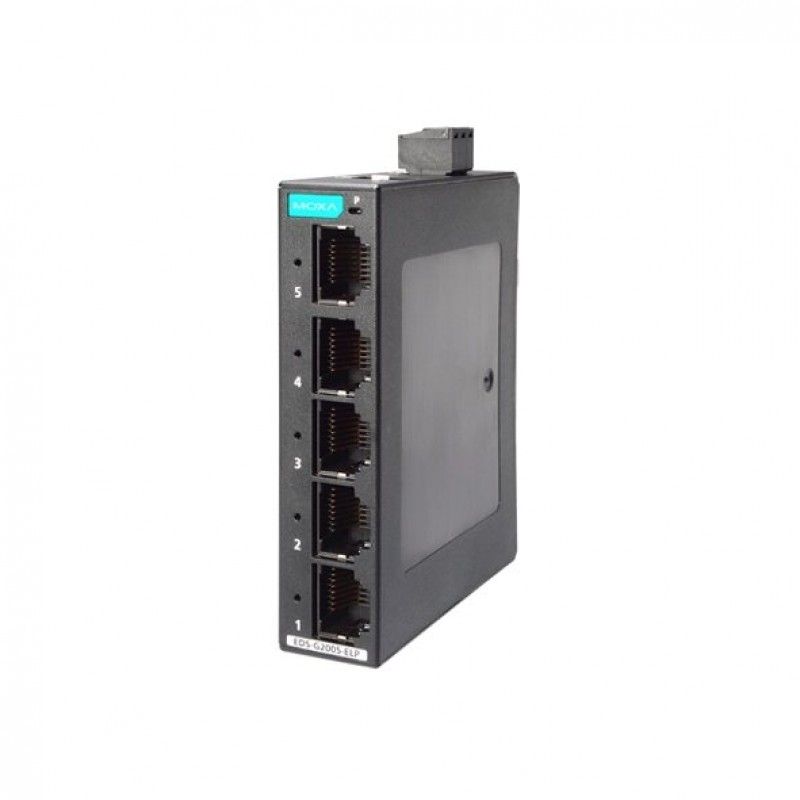

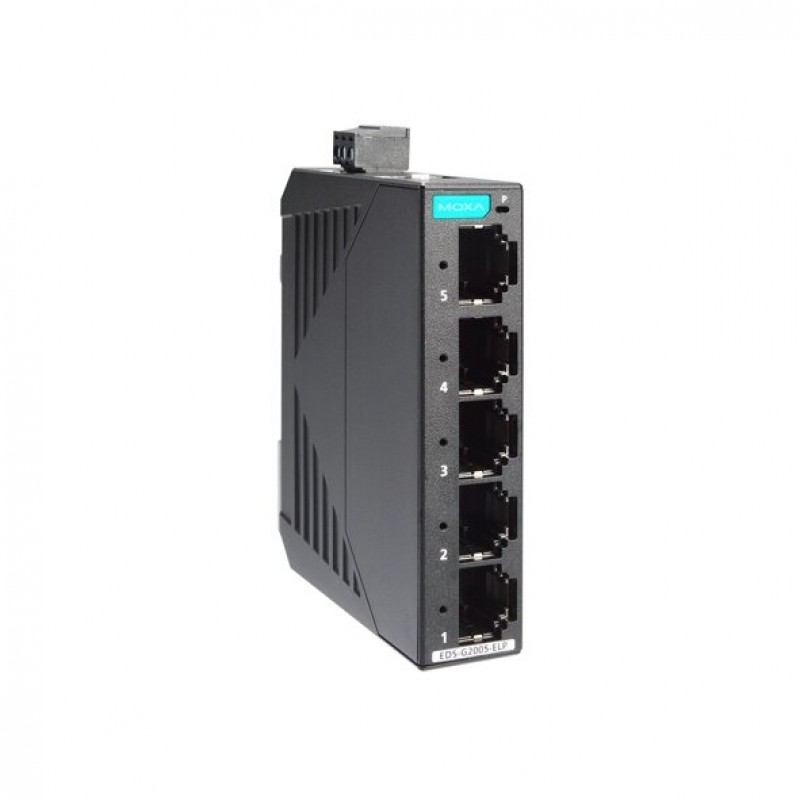

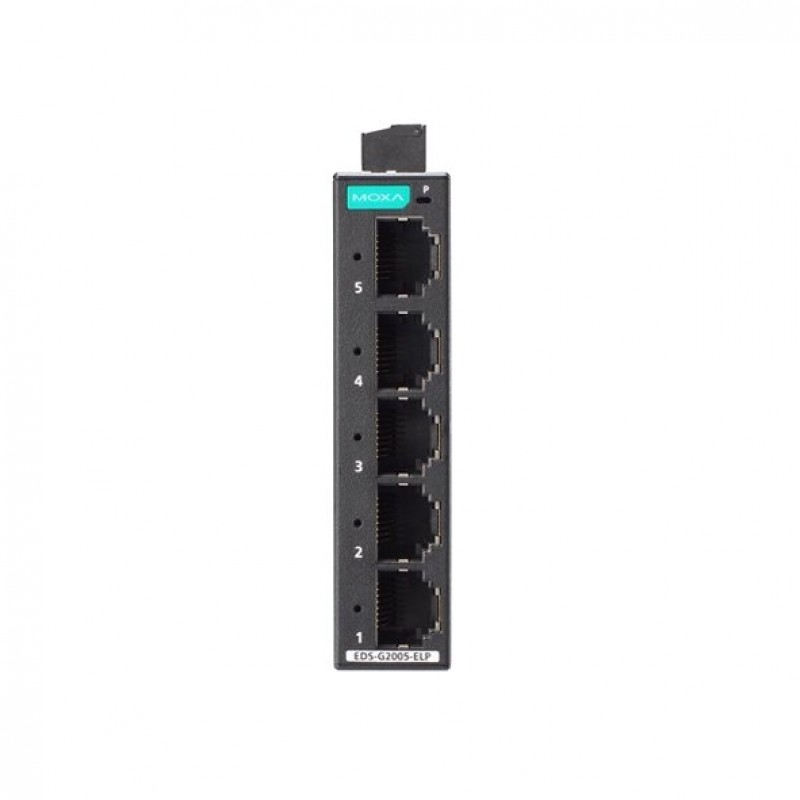

MOXA EDS-G2005-ELP Unmanaged Ethernet Switch

  • 5 x 10/100/1000Mbps T(x) ports
  • DIN-rail
  • Plastic body
  • -10 to 60°C operating temperature

Description

The EDS-G2005-ELP series of industrial Ethernet switches have five Gigabit Ethernet ports and plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-G2005-ELP Series also allows users to enable or disable the Quality of Service (QoS) function and broadcast storm protection (BSP) with DIP switches on the outer panel.

The EDS-G2005-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-G2005-ELP Series has passed a 100% burn-in test to ensure it will function reliably after deployment. The EDSG2005-ELP Series has a standard operating temperature range of -10 to 60°C.


Enjoy the ease of online inquiries for the MOXA EDS-G2005-ELP Unmanaged Ethernet Switch and all MOXA DIN-Rail Ethernet Switches. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
Number of ports 5 Ports
10/100Mb RJ45 (Megabit) Ports
10/100/1000Mb RJ45 (Gigabit) Ports : 5 Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
100Mb SFP Fiber optic (Megabit) Ports
10/100/1000Mb (Gigabit) POE Ports
10/100Mb (Megabit) POE Ports
M12 port
Serial port
USB
Features and capabilities
Backup
LED Indicators
LED Per Port
Power Requirements
Maximum power consumption -
Power Consumption (Output Adapter) 9.6 to 60 VDC
Power Input Plugin ( Redundant )
General
Fan / Fanless Fanless
MTBF 3,404,784 hrs
Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type Unmanaged
Port Aggregation -
Physical Characteristics
Housing Plastic
Installation DIN-rail mounting, Wall mounting (with optional kit)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: UL 61010-2-201, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR, 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 1 kV Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Freefall: IEC 60068-2-32
Standards and protocols
Protocols and work standards IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X), IEEE 802.3ab for 1000BaseT(X), IEEE 802.1p for Class of Service, IEEE 802.3x for flow control
Protocols and management standards
Package Checklist
Hardware installation guide
Power adapter
Power cable
