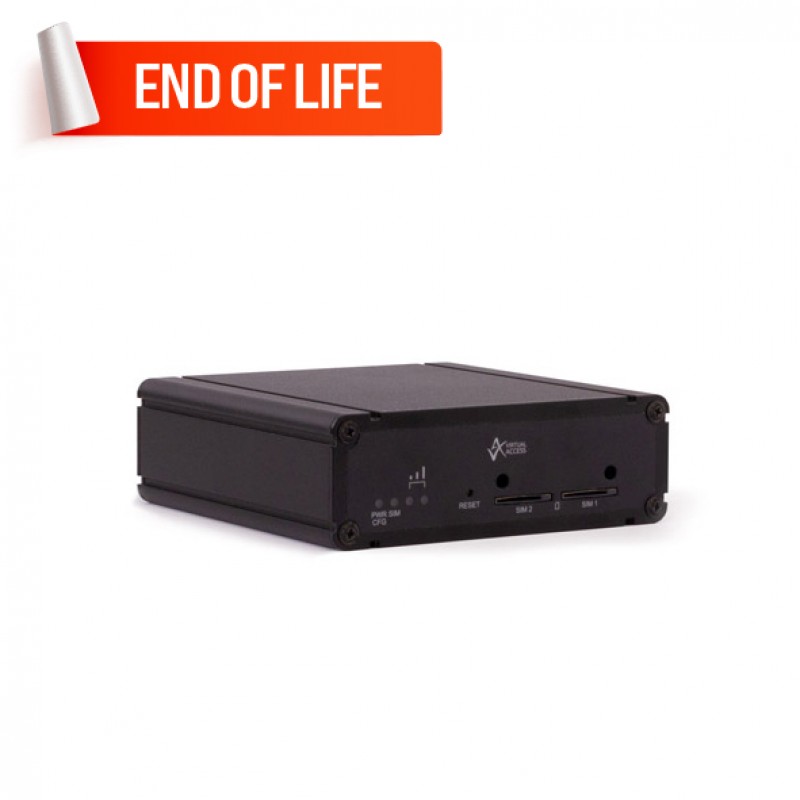

Westermo GW1042W-X-QFR-DC12 Dual SIM Industrial 4G LTE Router
- Category 4 LTE with global band coverage
- 2 x 10/100Mbps base-T Ethernet ports (RJ45 connector)
- 2 x SIM card sockets with optional slot cover
- 9-36V DC isolated input power range
- Bracket mount installation
- Rugged aluminum enclosure
- -40 to +70 °C operating temperature range
Description
The Virtual Access GW1042W Series router is a compact and
rugged 4G/LTE router designed with a metal housing. It enables 4G/LTE or 3G
HSPA+ connectivity in a wide range of applications, including smart grid, SCADA,
auto-recloser, and remote asset monitoring. The product is equally at home
offering primary WAN, 4G/LTE failover to fixed line via one of the onboard
Ethernet ports. Its small size is ideal for applications where space is at a
premium. The GW1042W Series router offers a new entry point for 4G/LTE data applications
but still supports all the legacy access technologies: HSPA+, HSPA, UMTS, EDGE,
GPRS, and GSM.
Dual Ethernet Ports
The GW1042W Series router offers two 10/100Mbps Ethernet
interfaces. They can be configured as a single interface with Ethernet
switching between them or as separate router interfaces.
Cellular Radio Interface
The GW1042W Series router supports category 4 LTE, which has a maximum downstream speed of 150 Mbps and a maximum upstream speed of 50 Mbps. A very large set of LTE bands is supported in a single device, providing global network coverage. This simplifies stock control and logistics for multinational operations.
End of Life Product - No Replacement
Please note that the GW1042W-X-QFR-DC12 has been phased out. You can explore the GW1042M-QFR-DCn0936, GW1042M-X-QFR-DCn0936, and GW1042W-X-QFR-DCi0936 in the Wireless Routers.
You can Buy the Westermo GW1042W-X-QFR-DC12 Dual SIM Industrial 4G LTE Router via inquiring
online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific
time in your location.
Specification
Interface | |
---|---|
SIM card slot | : 2 x SIM card socket with optional slot cover |
Ethernet Ports | : 2 x 10/100Mbps base-T Ports (RJ45 connector), Auto detects a regular or crossover cable for easy connection to a switch or hub, can optionally be configured for WAN use |
USB | |
Digital Input and Output | |
Serial port | |
Alert Output | |
Band Options | LTE FDD Bands: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B26/B28; LTE TDD Bands: B38/B39/B40/B41; WCDMA Bands: B1/B2/B4/B5/B8/B6/B19; GSM Bands: B2/B3/B5/B8 |
Cellular Standards | LTE Category 4, WCDMA, GSM |
Cellular Antenna Connectors | 2 x LTE SMA female antenna connectors (MIMO support in LTE versions) |
WLAN Standards | |
WLAN Antenna Connector | |
GPS Antenna Connector | |
Radio specifications | |
Radio Connection type | - |
Maximum data transfer speed of 2G | - |
Maximum data transfer speed of 3G | - |
Maximum data transfer speed of 4G | Maximum downstream speed: 150Mbps, Maximum upstream speed: 50Mbps |
WiFi Radio Frequency | - |
Software Specifications | |
Routing Redundancy | VRRP |
VPN | IPSec/L2TP/GRE/DMVPN |
Firewall | NAT, Port Forwarding, Packet filtering |
Time Management | |
Management | Automatic configuration using Activator server, HTTP/HTTPS, Command Line Interface via SSHv2, TFTP client download/upload, SNMP v1/v2c/3, SMS management support |
General | |
LED Indicators | Booting, PWR/CONFIG LED, SIM LEDs, Signal LEDs, WiFi LEDs |
MTBF | - |
Operating mode | Router, 4G Modem |
Standards and protocols | |
Protocols | Virtual Routing and Forwarding (VRF), IPv4 and IPv6, DHCP server/client, DynDNS, NAT, NAT Traversal, NTP Client, VLAN support, Packet filtering, Firewall, Port forwarding, BGPv4, OSPF, RIP (v1 and v2), IPSec/L2TP/GRE, DMVPN, SNMP v1/v2/v3, TLS 1.2, 802.1x authentication, IEC 104, QoS, VRRP |
Features and capabilities | |
Send and receive SMS | |
Security | |
Security and Encryption | - |
Authentication | 802.1x authentication |
Power Requirements | |
Power Connector | - |
Power Consumption (Output Adapter) | Max 5 Watts |
Input Voltage | 9-36V DC isolated |
POE Support | |
Input Current | - |
Reverse Polarity Protection | |
Buttons | |
Power button | |
Reset | |
Physical Characteristics | |
Installation | Bracket mounting |
Dimensions | 114W 114D 38H mm; with mounting bracket: 120W 120D 42H mm; including serial: 110W 118D 40H mm |
Housing | Aluminum |
Weight | 380g |
Operating Temperature | -40 to 70 ° C |
Storage Humidity | - |
Storage Temperature | - |
Type of Use | Industrial environments |
Standards and Certifications | EN 60950 safety approval, EN 55022 and EN 55024 EMC, EN 300 328 V1.9.1; Shock: ETSI 300 019-2-3; Vibration: ETSI 300 019-2-3 |
