Name: Westermo Viper-002-T1-PL1 Industrial Ethernet Extender
Brand: WESTERMO
Availability: InStock

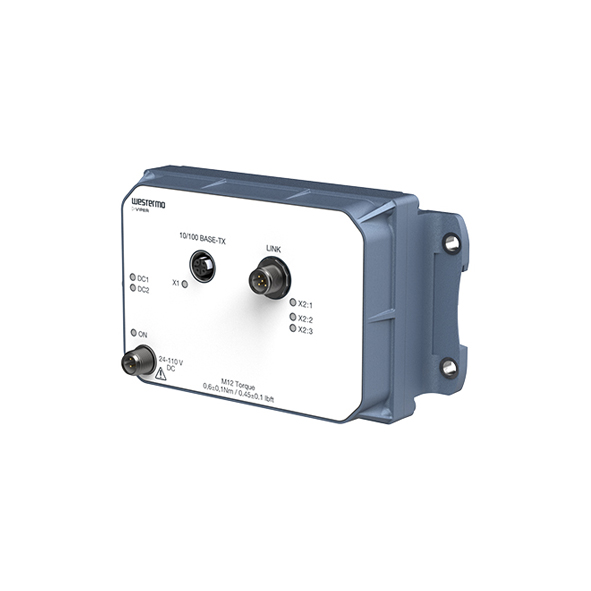

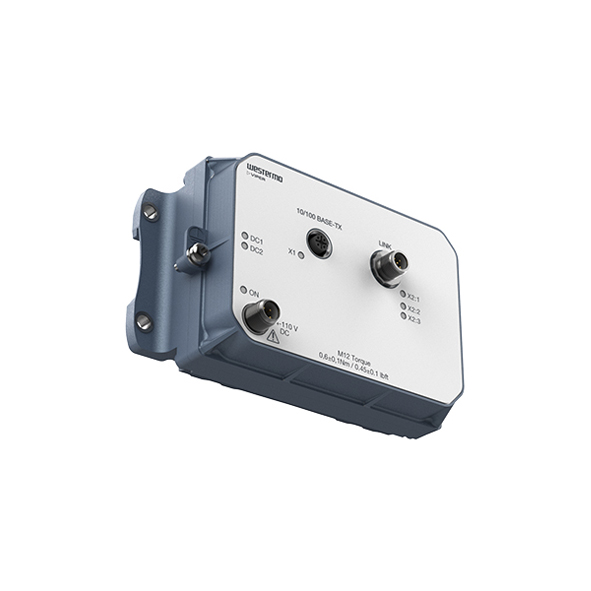

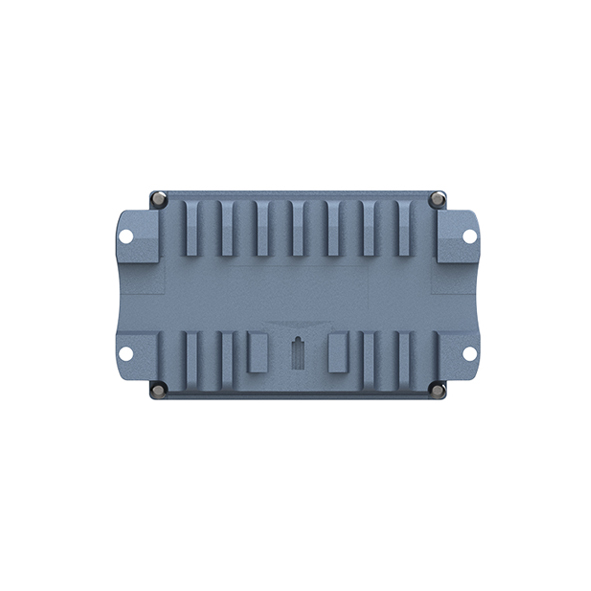

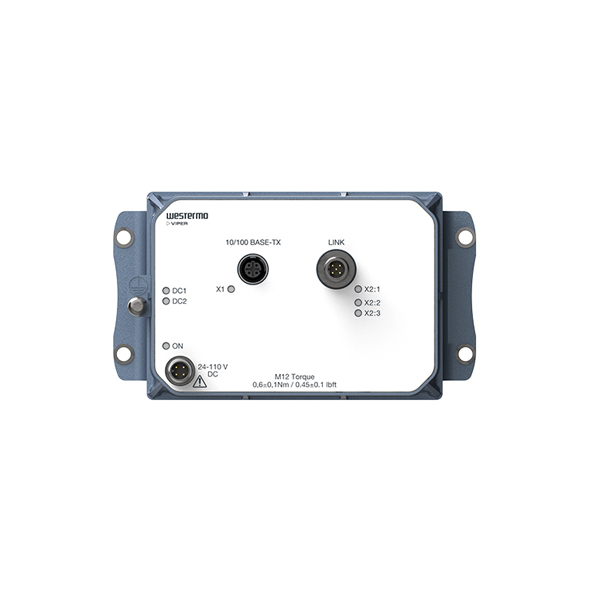

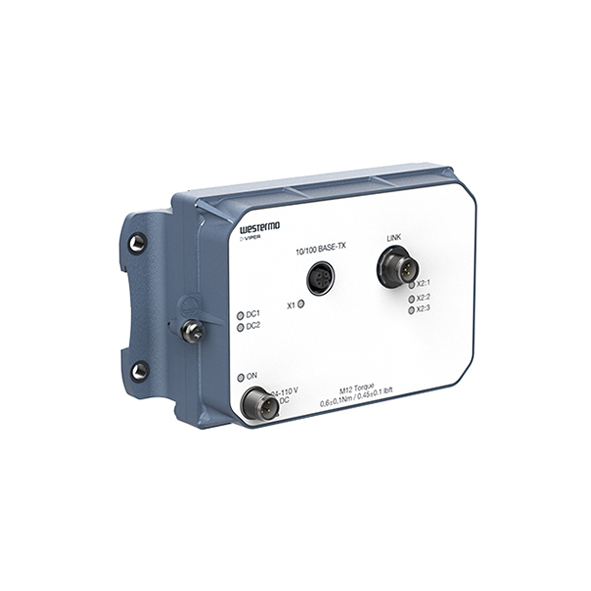

Westermo Viper-002-T1-PL1 Industrial Ethernet Extender

EN 50155 Ethernet Powerline Bridge
1 x 100 Mbps Ethernet Port (M12 D-coded connector)
1 x Powerline Bridge (M12 B-coded connector)
1 x 2-Wire Cable Port
IP67-rated Metal housing
Redundant 24 to 110 VDC power input (M12 connector)
Wall mount installation design
-40° to +70°C operating temperature range

Brand: WESTERMO
Model: 3635-3000

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 70°C)
Relative Humidity (5% to 95% RH)
IP protection (IP67)
Shock (IEC 60068-2-27, 20g/11ms)
Shock (EN 61373)
Vibration (IEC 61373)

Railway Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

Westermo DDW-002-B1 Industrial Ethernet Extender/Bridge

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-120 Industrial Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-142 Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-142-12VDC Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-142-12VDC-BP Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-142-485 Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-142-EX Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo DDW-220 Industrial Managed Ethernet Extender

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Ethernet Switches , Industrial Data Communications , EN 50155 Switches , Unmanaged Switches , Ethernet Extenders , Point-to-Point Extenders , Industrial DSL Ethernet Extender , Railway Transportation Products , Extenders , Ethernet Switches , Switches , Westermo Viper-002-PL Series

The Viper-002-PL series consists of Ethernet extenders and bridges for propagating Ethernet traffic over existing cabling. The series is based on power line communication (G.hn) and is capable of bridging high bandwidth Ethernet traffic over 2-wire cables, even when there are oxidized connectors.

By simply installing a Viper-002-PL product on each side of the coupler, a bridge connecting the Ethernet networks on each side is created. The power line technology allows the use of existing cables, which leads to significant financial savings when refurbishing trains. The fact that no configuration is needed further contributes to the ease of use.

The Viper-002-PL series has been thoroughly tested by certified labs to ensure its compliance with the standard for electronic equipment used on rolling stock, the EN 50155. For several characteristics, Westermo exceeds the requirements mandated by the standard, e.g., by providing 1.5 kVrms insulation on all ports.

Furthermore, the design is based on Westermo’s long experience within the rolling stock market, which brings benefits such as vibration-safe integrated connector threading, IP67 ingress protection with GORE-TEX® membrane to prevent condensation water build-up, and ultimately a high MTBF and long service life under the harshest conditions. The Viper-002-PL series is built in Westermo’s Swedish factory, which is renowned for its extremely high standards, as confirmed by a multitude of quality audits by demanding international customers. The factory is organized according to lean manufacturing principles, and it is equipped with sophisticated state-of-the-art quality assurance equipment.

Meeting the requirements for rolling stock also makes the Viper-002-PL series very well suited for deployment in other applications with severe operating conditions and extreme environments.

You can also find the Viper-002-T1G-PL1, Viper-002-T1-PL1-DN2, and Viper-002-T1G-PL1-DN2 models in the Point-to-Point Extenders.

Easy World Automation offers the easiest way to buy the Westermo Viper-002-T1-PL1 Industrial Ethernet Extender in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports	2 Ports
10/100Mb RJ45 (Megabit) Ports	No
10/100/1000Mb RJ45 (Gigabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb SFP Fiber optic (Megabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	Yes : 1 x 100 Mbps Ethernet Port (M12 D-coded connector), 1 x Powerline Bridge (M12 B-coded connector, up to 500 Mbps, max. cable length 1000 m with reduced speed), 1 x 2-Wire Cable Port
switch and hub : Features and capabilities
Backup	No
switch and hub : LED Indicators
LED Per Port	No
switch and hub : Power Requirements
Input Current	Max at 24 VDC: 200 mA; Max at 110: VDC 55 mA
Power Input Plugin ( Redundant )	No
Input Voltage	24 to 110 VDC
Operating Voltage	16.8 to 143 VDC (14.4 VDC for 100 ms, 154 VDC for 1 second)
Power Consumption	-
switch and hub : General
Fan / Fanless	Fanless
MTBF	MIL-HDBK-217F2: 1,285,000 hours
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	Layer 1
Switch type	Unmanaged
Port Aggregation	No
switch and hub : Physical Characteristics
Dimensions	175 x 65 x 100 mm
Housing	Full metal
Installation	Wall mounting
Operating Temperature	-40 to +70 °C (-40 to +158°F)
Operation Humidity	5 to 95 % relative humidity
Standards and Certifications	Climate: EN 50155 class OT4 / IEC 60571 class TX, Railway applications - Electronic equipment used on rolling stock, IEEE 1478 class 1, condition E4 (incl Salt Mist), Environmental conditions for transit rail car electronic equipment; EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments, EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus, EN 50121-3-2/IEC 62236-3-2, Railway applications – Rolling stock – apparatus, Tested and verified for Class S1, DB EMC Regulation 06, Commodity team Radio compatibility in VDB Rev 1.0 (Shunting Radio), Tested and verified for FCC part 15b class A (CFR 47); Mechanical (Shock and vibration): EN 61373 category 1, class A and B, EN 60068-2-27 20 g, 11 ms; Insulation (Coordination and test): EN 50124-1, Railway applications – Insulation coordination, EN 50155/IEC 60571, Railway applications - Electronic equipment used on rolling stock; Fire protection: EN 45545-2, Fire protection on railway vehicles; Safety: EN/IEC/UL 62368-1, Safety Requirements for audio/video, information and communication technology equipment; Ingress protection: IP67; MIL-HDBK-217F2
Storage Temperature	-40 to +85 °C (-40 to +185 °F)
Weight	1.2 kg
switch and hub : Standards and protocols
Protocols and work standards	-
Protocols and management standards	-
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	Yes
