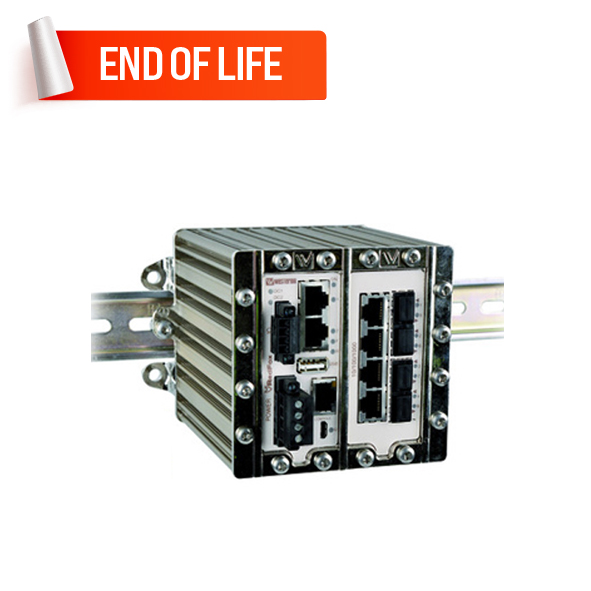

Westermo RFI-211-F4G-T7G-EX Managed Ethernet Switch

Westermo RFI-211-F4G-T7G-EX Managed Ethernet Switch
Westermo RFI-211-F4G-T7G-EX Managed Ethernet Switch
Westermo RFI-211-F4G-T7G-EX Managed Ethernet Switch
Westermo RFI-211-F4G-T7G-EX Managed Ethernet Switch
Westermo RFI-211-F4G-T7G-EX Managed Ethernet Switch

  • EX Approved Industrial Routing Switch
  • Layer 3 functionality switching and routing
  • 7 x 10/100/1000 Mbit/s Ethernet TX Ports (RJ-45)
  • 4 x 100/1000 Mbit/s Combo ports (Ethernet FX or TX SFP)
  • Dual Redundant 16 – 60 VDC Power input range
  • Ultra-robust IP40 Aluminum / Zinc housing
  • DIN-rail mount installation design
  • –40 to +70°C operating temperature range

0 reviews • Write a review
Datasheet User Manual
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (5% to 95% RH)
  • IP protection (IP40)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Hazardous Location (ATEX Zone 2 Ex nA nC IIC T4 Gc)
  • Oil & Gas
  • Railway Transportation
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Westermo L108-F2G-S2 Managed Ethernet Switch
Quickview
Westermo L108-F2G-S2 Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L105-S1 Managed Ethernet Switch
Quickview
Westermo L105-S1 Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L105-S1-EX Managed Ethernet Switch
Quickview
Westermo L105-S1-EX Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-F2G EX Managed Ethernet Switch
Quickview
Westermo L106-F2G EX Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-F2G Managed Ethernet Switch
Quickview
Westermo L106-F2G Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-S2 Managed Ethernet Switch
Quickview
Westermo L106-S2 Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L106-S2-EX Managed Ethernet Switch
Quickview
Westermo L106-S2-EX Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo L108-F2G-S2-12VDC Managed Ethernet Switch
Quickview
Westermo L108-F2G-S2-12VDC Managed Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Ethernet Switches , Industrial Data Communications , Managed Layer 3 Switches , Layer 3 Switches , Managed Layer 2 Switches , Layer 2 Switches , Oil & Gas Products , Marine Products , Railway Transportation Products , Managed Ethernet Switches , Ethernet Switches , Managed Switches , Switches , Routers , Westermo RFI-211-F4G-T7G-EX

RedFox is a high-performance layer 3 industrial Ethernet switch designed for high network traffic applications. Various port configurations are available that can be further customised with SFP transceivers. RedFox is powered by the Westermo WeOS network operating system. The RedFox is designed for use in heavy-duty industrial applications in its robust aluminium housing. Its wide power range and I/O fault contact make it ideal for easy installation and monitoring in industrial applications.

Only industrial-grade components are used, which gives the RedFox an MTBF of 336,000 hours and ensures a long service life. A wide operating temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. RedFox has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.


End of Life Product - No Replacement

Please note that the RFI-211-F4G-T7G-EX has been phased out. You can explore the RFI-219-F4G-T7G, RFI-219-F4G-T7G-F8, and RFI-219-T3G in the Managed Ethernet Switches.


Easy World Automation offers the easiest way to buy the Westermo RFI-211-F4G-T7G-EX Managed Ethernet Switch in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports 11 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 7 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 4 x 100/1000 Mbit/s Combo ports (Ethernet FX or TX SFP), 1 x Console Port (USB Micro-B connector), 1 x USB 2.0 host interface, 1 x Digital I/O (4-ports detachable screw terminal)
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.87 (1.06) A @ 20 VDC, 0.35 (0.43) A @ 48 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 20 to 48 VDC
Operating Voltage 16 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF MIL-HDBK-217K: 336,000 hours
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 3
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 134 x 100 x 122 mm (5.25 x 3.93 x 4.80 in)
Housing Aluminium / Zinc
Installation DIN-rail mounting
Operating Temperature -40 to +70 °C (-40 to +158 °F)
Operation Humidity 5-95% relative humidity
Standards and Certifications Ingress protection: IP40; MIL-HDBK-217K; EMC: EN 50121-4, Railway applications – Electromagnetic compatibility – Emission and immunity of the signalling and telecommunications apparatus, EN 61000-6-1, Electromagnetic compatibility – Immunity for residential, commercial and light-industrial environments, EN 61000-6-2, Electromagnetic compatibility – Immunity for industrial environments, EN 61000-6-3, Electromagnetic compatibility – Emission standards for residential, commercial and light industrial environments, EN 61000-6-4, Electromagnetic compatibility – Emission standard for industrial environments; Marine: DNV GL rules for classification – Ships and offshore units; IECEx: Explosive atmosphere: IEC 60079-0, General requirements, IEC 60079-15, Equipment protected by type of protection “n”, IEC 60079-28, Protection of equipment and transmission systems using optical radiation; ATEX: Explosive atmosphere: EN 60079-0, General requirements, EN 60079-15, Equipment protected by type of protection “n”, EN 60079-28, Protection of equipment and transmission systems using optical radiation; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6
Storage Temperature -50 to +85 °C (-58 to +185 °F)
Weight 1.5kg
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
