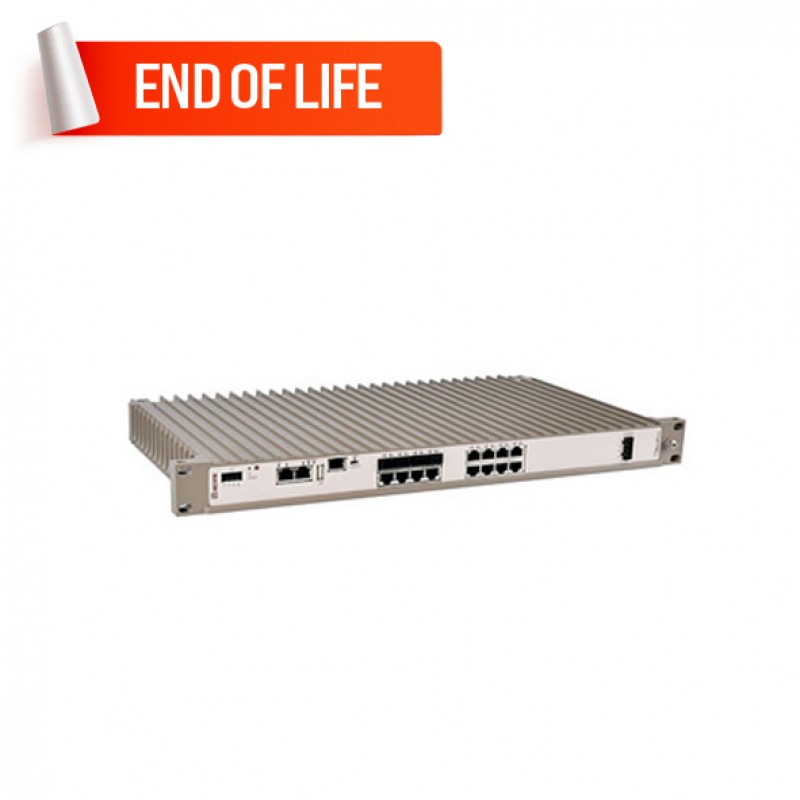

Westermo RFIR-219-F4G-T7G-DC Managed Ethernet Switch
- Layer 3 functionality switching and routing
- 4 x 100 or 1000 Mbit/s Ethernet FX or TX SFP ports
- 7 x 10/100/1000 Mbit/s Ethernet TX ports (RJ-45)
- 8 x 10/100 Mbit/s Ethernet TX ports (RJ-45)
- 16 to 60 VDC operating voltage range
- Ultra-robust IP40 19” Rack/Wall Mount housing
- -40 to +70 operating temperature range
.png)
Description
The RFIR (RedFox Industrial Rack) is a high-performance
layer 3 industrial Ethernet switch designed for high network traffic
applications. Various port configurations are available that can be further
customised with SFP transceivers. RFIR is powered by the Westermo WeOS network
operating system.
RFIR is designed for a 19” cabinet according to ETSI standard, making it suitable for use in control room networks as well as for cabinets
installed along railway trackside installations. RFIR is designed to run
efficiently from a DC power supply, The unit is also equipped with configurable
I/O fault contacts that make it ideal for easy installation and monitoring in
industrial applications.
Only industrial-grade components are used, which gives the RedFox an MTBF of 293,000 hours and ensures a long service life. A wide operating temperature range -40 to +70°C (-40 to +158°F) can be achieved with no moving parts or cooling holes in the case. RFIR has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.
End of Life Product - Replacement Available
Please note that the RFIR-219-F4G-T7G-DC has been phased out and replaced by the RedFox-5528-E-F4G-T24G-HV.
You can explore our wide range of
products and enquire about the Westermo RFIR-219-F4G-T7G-DC Managed Ethernet Switch for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| Interface | |
|---|---|
| Number of ports | 19 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 8 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 7 Ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 4 x 100 or 1000 Mbit/s Ethernet FX or TX SFP (pluggable connections), 1 x Console Port (USB Micro-B connector), 1 x USB Port (USB 2.0 host interface), 1 x 4-ports Digital I/O ( detachable screw terminal) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 0.93 (1.12) A @ 20 VDC, 0.38 (0.45) A @ 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | - |
| Operating Voltage | 16 to 60 VDC |
| Power Consumption | - |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 293,000 hours |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 3 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 466 x 258 x 43 mm |
| Housing | Aluminium |
| Installation | Rack mounting |
| Operating Temperature | -40 to +70°C (-40 to +158°F), Maximum surface temperature: 135ºC (275ºF) (temperature class T4) |
| Operation Humidity | - |
| Standards and Certifications | IP40; MIL-HDBK-217K; EMC: EN 50121-4, Railway applications - Electromagnetic compatibility - Emission and immunity of the signalling and telecommunications apparatus, EN 61000-6-1, Electromagnetic compatibility - Immunity for residential, commercial and light-industrial environments, EN 61000-6-2, Electromagnetic compatibility - Immunity for industrial environments, EN 61000-6-4, Electromagnetic compatibility - Emission for industrial environments; Safety: UL 60950-1, IT equipment, EN/IEC 62368-1, Safety Communication Technology |
| Storage Temperature | -40 to +85°C (-40 to +185°F) |
| Weight | 3.8kg |
| Standards and protocols | |
| Protocols and work standards | - |
| Protocols and management standards | - |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
