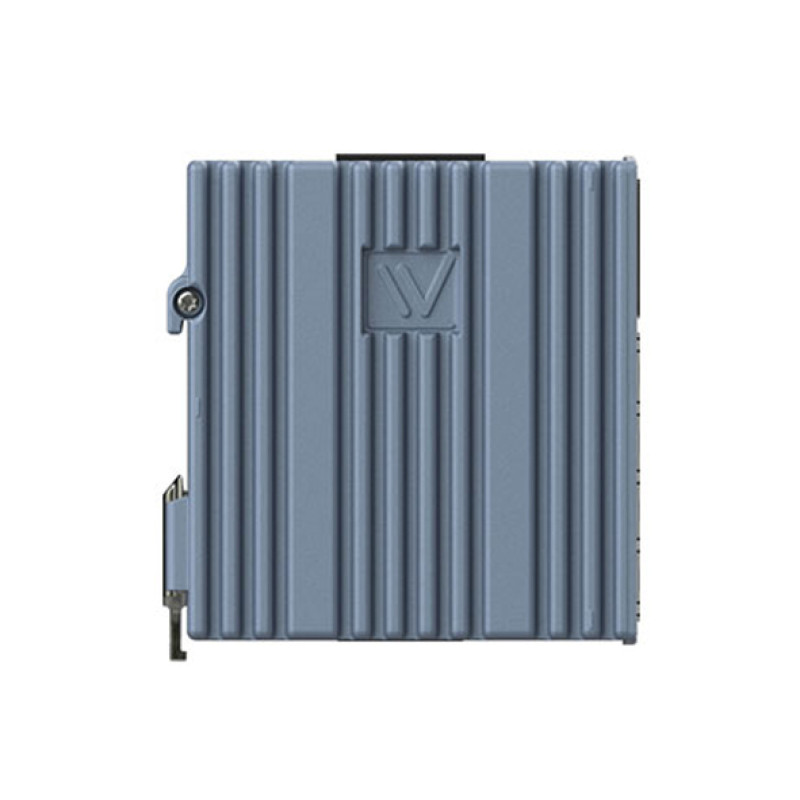

Westermo L105-S1 Managed Ethernet Switch
- 4 x RJ-45, 10 Mbit/s, 100 Mbit/s
- 1 x RJ-45, RS-232, 50 bit/s – 115.2 kbit/s
- Managed Device Server Switch
- Brand: WESTERMO
- Product Code: L105-S1
Description
Lynx DSS is available in several versions, the L105-S1 is a device server with a layer 2 industrial Ethernet switch, powered by the Westermo WeOS network operating system. Lynx DSS is the most compact and has the lowest power requirements in this class of device servers. Lynx DSS has 4 10/100 Mbit/s ports and one RS-232 port.
Lynx DSS is designed for simple use in industrial applications, from the robust DIN rail clip solution to the configurable fault contact and the industrial-level dual power inputs. Only industrial-grade components are used which gives the Lynx DSS an MTBF of 677,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx DSS has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.
WeOS has been developed by Westermo to allow us to offer cross-platform and future-proof solutions. WeOS delivers unique functionality in legacy IP solutions, supporting Modbus Gateway, virtual COM, modem replacement, or several options in dual TCP applications. For more WeOS functionality please see the WeOS datasheet.
Discover industrial automation
solutions appropriate to your needs, and easily inquire about the Westermo L105-S1 Managed Ethernet Switch through
our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman).
Specification
Interface | |
---|---|
Number of ports | 5 Ports |
10/100Mb RJ45 (Megabit) Ports | : 4 Ports |
10/100/1000Mb RJ45 (Gigabit) Ports | |
100Mb Fiber optic multi mode (Megabit) Ports | |
100Mb Fiber optic single mode (Megabit) Ports | |
1000Mb SFP Fiber optic (Gigabit) Ports | |
10/100Mb (Megabit) POE Prots | |
100Mb SFP Fiber optic (Megabit) Ports | |
10/100/1000Mb (Gigabit) POE Ports | |
Serial port | : 1 RJ-45 port with RS-232 standard |
USB | 1 USB 2.0 port |
Features and capabilities | |
Backup | STP/RSTP |
LED Indicators | |
LED Per Port | |
Power | |
Power Requirements | |
Maximum power consumption | 30W |
Power Consumption (Output Adapter) | 24V DC, 1.3A |
Power Input Plugin ( Redundant ) | |
General | |
Fan / Fanless | |
MTBF | 677,000 hour |
Switch specifications | |
Most forwarding speed | - |
Network working layers | Layer 2 |
Switch type | Managed |
Port Aggregation | IEEE 802.1AX/802.3ad |
Physical Characteristics | |
Dimensions | 52.5x100x101mm |
Housing | Metal |
Installation | Din-rail - Use in sea and rail areas |
Operating Temperature | -40 to 70 ° C |
Operation Humidity | 5% to 95% RH |
Standards and Certifications | EN 61000-6-1 , EN 61000-6-2 ,EN 61000-6-3, EN 61000-6-4 , EN 55022 +A1, EN 55024 +A1 + A2, FCC part 15 , EN 50121-4 , IEC 62236-4, DNV 2.4, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 61000-4-9, EN 61000-4-3, EN 61000-4-6, EN 55022, FCC Part 15, UL/IEC/EN 60950-1, IT equipment, EN 60950-1, IP 40 |
Storage Humidity | 5% to 95% RH |
Storage Temperature | -50 to 85 ° C |
Weight | 0.7Kg |
Standards and protocols | |
Protocols and work standards | IEEE std 802.3. 2005 Edition, IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1X Port Access Control |
Protocols and management standards | IGMPv2/v3 snooping, HTTP, HTTPS or CLI (SSHv2 or Telnet), SNMPv1/v2c/v3, SNTP (NTP client), PPPoE client, DHCP client, DDNS, DHCP client, DHCP server including option 82, DHCP relay agent including option 82 |
Package Checklist | |
Hardware installation guide | |
Power adapter | |
Power cable |
