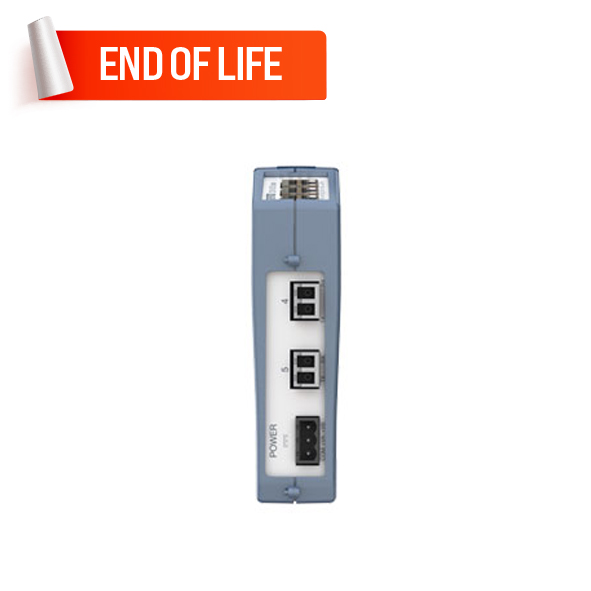

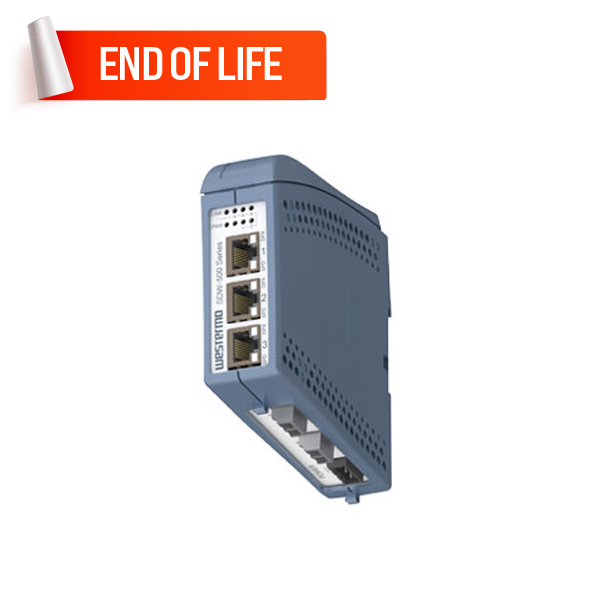

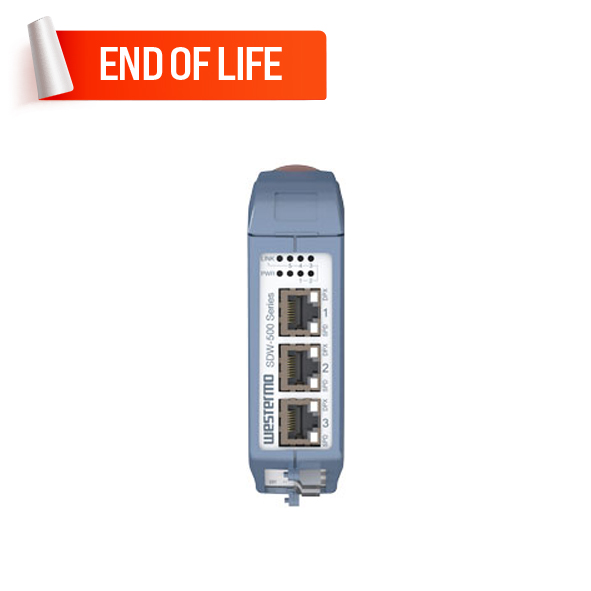

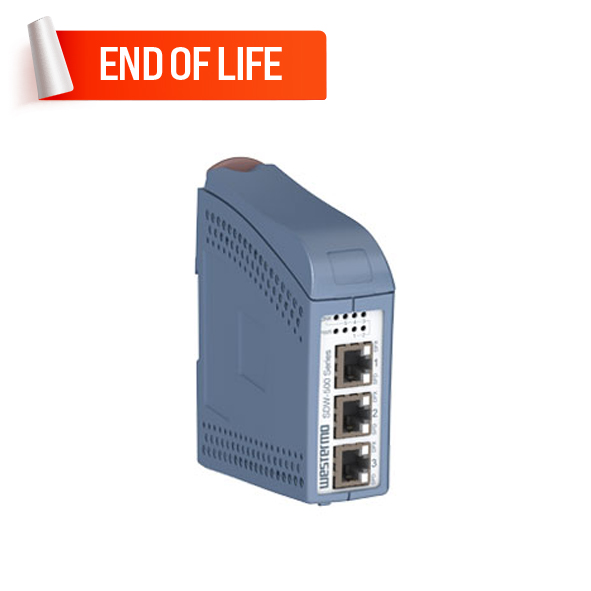

Westermo SDW-532-MM-LC2 Unmanaged Ethernet Switch

Westermo SDW-532-MM-LC2 Unmanaged Ethernet Switch
Westermo SDW-532-MM-LC2 Unmanaged Ethernet Switch
Westermo SDW-532-MM-LC2 Unmanaged Ethernet Switch
Westermo SDW-532-MM-LC2 Unmanaged Ethernet Switch
Westermo SDW-532-MM-LC2 Unmanaged Ethernet Switch
Westermo SDW-532-MM-LC2 Unmanaged Ethernet Switch
Westermo SDW-532-MM-LC2 Unmanaged Ethernet Switch
Westermo SDW-532-MM-LC2 Unmanaged Ethernet Switch
Westermo SDW-532-MM-LC2 Unmanaged Ethernet Switch

  • Industrial Ethernet 5-Port Switch
  • 3 x 10/100 Mbit/s Base T Ethernet ports (RJ-45)
  • 2 x 100Base-FX Ports (Multi-mode LC connector)
  • 2 KM Typical data transmission distance on fiber
  • Dual Redundant 10 - 57 VDC power inputs
    • Purpose-built DIN rail casing with integral clip
    • -25 to +70°C operating temperature range

    0 reviews • Write a review
    Datasheet User Manual
    • Operating Temperature (-25 to 70°C)
    • Relative Humidity (5% to 95% RH)
    • IP protection (IP21)
    • Marine
    $0.00
    Ex Tax: $0.00
    Buy Now ENQUIRE NOW
    Add to Wish List Compare this Product
    Westermo PII-2G PoE Injector
    Quickview
    Westermo PII-2G PoE Injector
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo PSI-010-FT2G-P8G PoE Switch
    Quickview
    Westermo PSI-010-FT2G-P8G PoE Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo PSI-1010G-24V Unmanaged Ethernet Switch
    Quickview
    Westermo PSI-1010G-24V Unmanaged Ethernet Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo PSI-1010G-48V Unmanaged Ethernet Switch
    Quickview
    Westermo PSI-1010G-48V Unmanaged Ethernet Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo PSI-660G-24V Unmanaged Ethernet Switch
    Quickview
    Westermo PSI-660G-24V Unmanaged Ethernet Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo SandCat-2305-F1-MM-T4-LV Unmanaged Ethernet Switch
    Quickview
    Westermo SandCat-2305-F1-MM-T4-LV Unmanaged Ethernet Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo SandCat-2305-F1-SM-T4-LV Unmanaged Ethernet Switch
    Quickview
    Westermo SandCat-2305-F1-SM-T4-LV Unmanaged Ethernet Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo SandCat-2305-T5-LV Unmanaged Ethernet Switch
    Quickview
    Westermo SandCat-2305-T5-LV Unmanaged Ethernet Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Tags: Industrial Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Data Communications , Marine Products , Ethernet Switches , Switches , Westermo SDW-532

    The SDW-532 is an unmanaged 5-port (3TX and 2FX) industrial Ethernet switch designed for easy use in heavy-duty industrial applications. The unit supports 802.1Q long packets, which allows all standard industrial Ethernet protocols to be used. Many standard fibre optic connection types are supported, including LC, SC, and ST.

    The SDW-532 is designed for use in industrial applications and so has dual power inputs for 10 to 57 VDC operation. Total galvanic isolation between each port is reinforced by the unique isolation provided between each chassis screen, helping to avoid ground loop currents. The IP21 rating ensures that the unit can be installed in locations where condensed water may occur. Only industrial-grade components are used, which gives the SDW-532 an MTBF of 760,000 hours and ensures a long service life. A wide operating temperature range of –25 to +70°C (–13 to +158°F) can be achieved with no moving parts.

    The SDW-532 has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments. Network diagnostics are simplified with the inclusion of port mirroring on one port, allowing data flow through the switch to be monitored using a network analyzer. All five ports can have data rate and flow control locked by a DIP switch, which can eliminate problems with old legacy Ethernet equipment that is unable to support auto-negotiation.


    End of Life Product - No Replacement

    Please note that the SDW-532 has been phased out. You can explore the SDI-862-MM-SC2, SDW-550-T5G, and SDW-541-F1G-T4G in the Unmanaged Ethernet Switches.


    Discover industrial automation solutions appropriate to your needs, and easily inquire about the Westermo SDW-532-MM-LC2 Unmanaged Ethernet Switch through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

    switch and hub : Interface
    Number of ports 5 Ports
    10/100Mb RJ45 (Megabit) Ports Yes : 3 Ports
    10/100/1000Mb RJ45 (Gigabit) Ports No
    100Mb Fiber optic multi mode (Megabit) Ports Yes : 2 LC Ports
    100Mb Fiber optic single mode (Megabit) Ports No
    100Mb SFP Fiber optic (Megabit) Ports No
    1000Mb SFP Fiber optic (Gigabit) Ports No
    10/100Mb (Megabit) POE Ports No
    10/100/1000Mb (Gigabit) POE Ports No
    Other ports No
    switch and hub : Features and capabilities
    Backup No
    switch and hub : LED Indicators
    LED Per Port Yes
    switch and hub : Power Requirements
    Input Current 450 mA @ 12VDC
    Power Input Plugin ( Redundant ) Yes
    Input Voltage 12 –48 VDC, polarity protected
    Operating Voltage 9.6 – 57.6 VDC
    Power Consumption -
    switch and hub : General
    Fan / Fanless Fanless
    MTBF MIL-HDBK-217F-N2: 1,347,000 hours
    switch and hub : Switch specifications
    Most forwarding speed -
    Network working layers Layer 1
    Switch type UnManaged
    Port Aggregation No
    switch and hub : Physical Characteristics
    Dimensions 34 x 123 x 121 mm (1.33 x 4.84 x 4.76 in)
    Housing Metal
    Installation DIN-rail mounting
    Operating Temperature -25 to +70ºC (-13 to +158ºF)
    Operation Humidity 5 to 95% (non-condensing)
    Standards and Certifications Ingress protection: IP21; MIL-HDBK-217F-N2; EMC: EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments; Marine: DNV rules for classification - Ships and offshore units
    Storage Temperature -25 to +70ºC (-13 to +158ºF)
    Weight 0.2Kg
    switch and hub : Standards and protocols
    Protocols and work standards 802.1Q
    Protocols and management standards -
    switch and hub : Package Checklist
    Hardware installation guide Yes
    Power adapter No
    Power cable No
