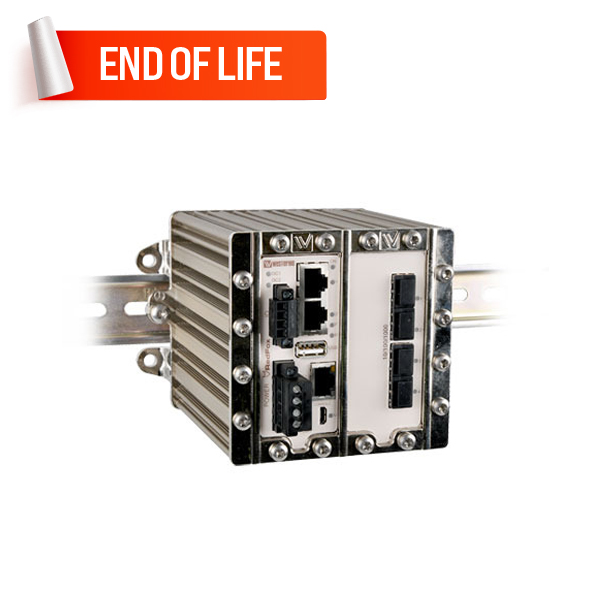

Westermo RFI-207-F4G-T3G Managed Ethernet Switch

Westermo RFI-207-F4G-T3G Managed Ethernet Switch
Westermo RFI-207-F4G-T3G Managed Ethernet Switch
Westermo RFI-207-F4G-T3G Managed Ethernet Switch
Westermo RFI-207-F4G-T3G Managed Ethernet Switch
Westermo RFI-207-F4G-T3G Managed Ethernet Switch

  • Layer 3 functionality switching and routing
  • 3 x 10/100/1000 Mbit/s Ethernet TX Ports (RJ-45)
  • 4 x 100/1000 Mbit/s Combo ports (Ethernet FX or TX SFP)
  • Dual Redundant 16 – 60 VDC Power input range
  • Ultra-robust IP40 aluminum housing
  • DIN-rail mount installation design
  • –40 to +70°C operating temperature range

0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (5% to 95% RH)
  • IP protection (IP40)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Hazardous Location (ATEX Zone 2 Ex nA nC IIC T4 Gc)
  • Oil & Gas
  • Railway Transportation
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Ethernet Switches , Industrial Data Communications , Managed Layer 3 Switches , Layer 3 Switches , Managed Layer 2 Switches , Layer 2 Switches , Oil & Gas Products , Marine Products , Railway Transportation Products , Managed Ethernet Switches , Ethernet Switches , Managed Switches , Switches , Routers , Westermo RFI-207-F4G-T3G

RedFox is a high-performance layer 3 industrial Ethernet switch designed for high network traffic applications. Various port configurations are available that can be further customised with SFP transceivers RedFox is powered by the Westermo WeOS network operating system.

The RedFox is designed for use in heavy-duty industrial applications in its robust aluminum housing. Its wide power range and I/O fault contact make it ideal for easy installation and monitoring in industrial applications.

Only industrial-grade components are used which gives the RedFox an MTBF of 388,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. RedFox has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.


End of Life Product - Replacement Available

Please note that the RFI-207-F4G-T3G has been phased out and replaced by the Lynx 5512-E-F4G-T8G-LV.


Inquire about the Westermo RFI-207-F4G-T3G Managed Ethernet Switch, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 7 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 3 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 4 x 100/1000 Mbit/s Combo ports (Ethernet FX or TX SFP), 1 x Console Port (USB Micro-B connector), 1 x USB 2.0 host interface, 1 x Digital I/O (4-ports detachable screw terminal)
switch and hub : Features and capabilities
Backup No
switch and hub : LED Indicators
LED Per Port Yes
switch and hub : Power Requirements
Input Current 0.55 (0.72*) A @ 20 VDC, 0.23 (0.29*) A @ 48 VDC
Power Input Plugin ( Redundant ) Yes
Input Voltage 20 to 48 VDC
Operating Voltage 16 to 60 VDC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF MIL-HDBK-217K: 388,000 hours
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 3
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 134 x 100 x 122 mm (5.25 x 3.93 x 4.80 in)
Housing Aluminium
Installation DIN-rail mounting
Operating Temperature –40 to +70ºC (–40 to +158ºF)
Operation Humidity 5-95% relative humidity
Standards and Certifications Ingress protection: IP40; MIL-HDBK-217K; EMC: EN 50121-4, Railway applications -Electromagnetic compatibility – Emission and immunity of the signalling and telecommunications apparatus, EN 61000-6-1, Electromagnetic compatibility – Immunity for residential, commercial and light-industrial environments, EN 61000-6-2, Electromagnetic compatibility – Immunity for industrial environments, EN 61000-6-3, Electromagnetic compatibility – Emission standards for residential, commercial and light industrial environments, EN 61000-6-4, Electromagnetic compatibility – Emission standard for industrial environments; Safety: UL/IEC/EN 60950-1, IT equipment; Marine: DNV GL rules for classification – Ships and offshore units; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6
Storage Temperature –40 to +85ºC (–40 to +185ºF)
Weight 1.5kg
switch and hub : Standards and protocols
Protocols and work standards -
Protocols and management standards -
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
