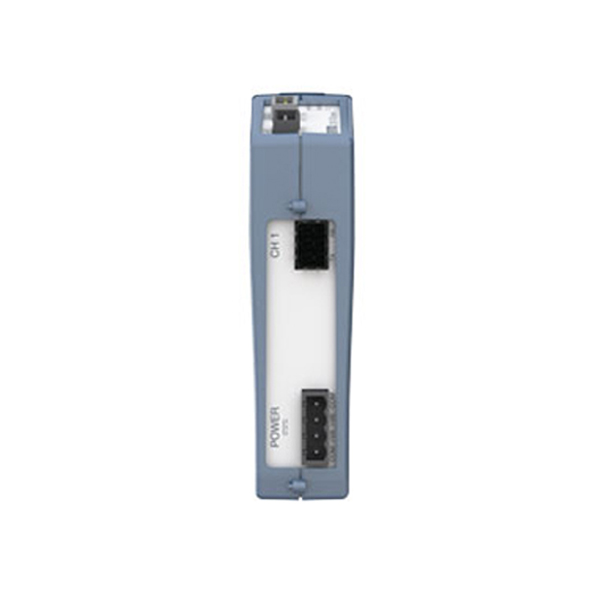

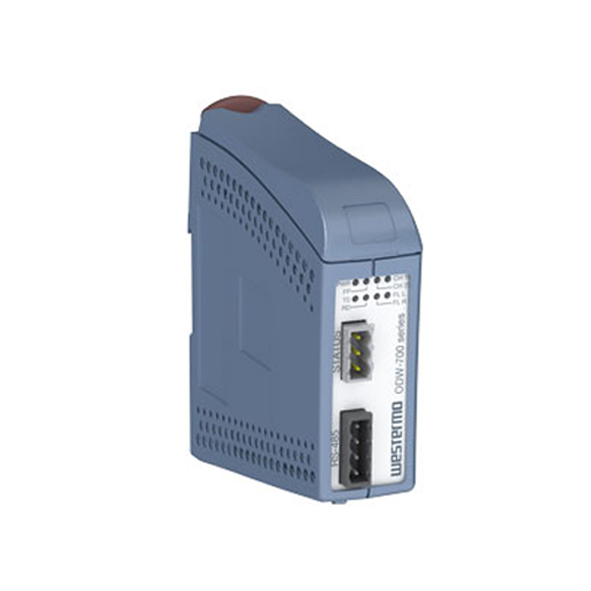

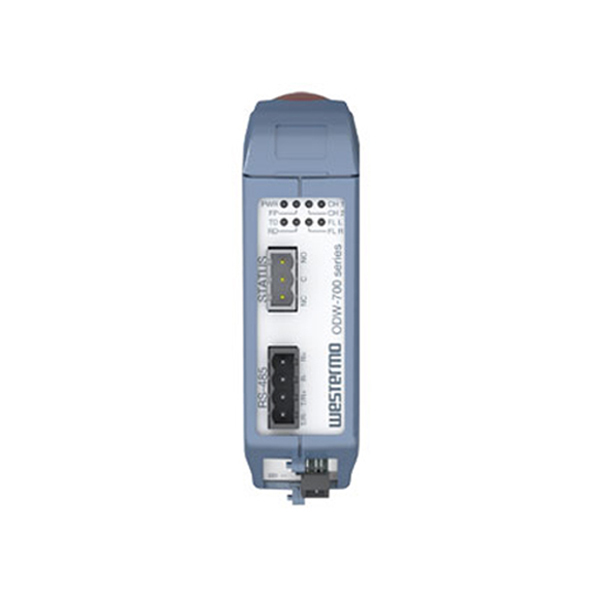

Westermo ODW-730-F1 Serial to Fiber Converter

Westermo ODW-730-F1 Serial to Fiber Converter
Westermo ODW-730-F1 Serial to Fiber Converter
Westermo ODW-730-F1 Serial to Fiber Converter
Westermo ODW-730-F1 Serial to Fiber Converter
Westermo ODW-730-F1 Serial to Fiber Converter
Westermo ODW-730-F1 Serial to Fiber Converter
Westermo ODW-730-F1 Serial to Fiber Converter

  • Point-to-Point Fibre Converter RS-422/485
  • 1 x RS-422/485 Port (300 bit/s – 1.5 Mbit/s)
  • 1 x 100 Mbit/s SFP Slot (LC connector)
  • Up to 120 KM Typical data transmission distance on fiber
  • Compact housing with integral DIN rail clip
  • IP21-rated PC/ABS body material design
  • Dual 10 V to 60 VDC power input
  • -40 to +70°C operating temperature range

0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (5% to 95% RH)
  • IP protection (IP21)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Railway Transportation
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Media Converters , Fibre Optic Modems , Fibre Modems , Modems , Converters , Industrial Data Communications , Industrial Modems , Railway Transportation Products , Marine Products , Westermo ODW-700 Series

The ODW-730-F1 has been designed to allow RS-422/485 protocols to be transmitted point-to-point over a fiber optic link. The design allows the use of a range of Westermo-verified SFP (Small Form Pluggable) transceivers, which can provide solutions with, for example, only a single fibre or distances up to 120 km. This unit has been designed for industrial use where the requirement is for a long and reliable service life in a harsh environment. To ensure this reliable operation, we manufacture using the highest quality components.

The ODW-730 draws on Westermo’s many years of knowledge of serial protocols and can be used on both synchronous and asynchronous data streams. The switch-selectable termination circuit saves the need for external terminating resistors. The ODW is simple to install, being small with a simple integral DIN rail clip. The unit is totally transparent to any data rate, so no configuration is needed. The comprehensive LEDs provide a quick and easy way of detecting any network problems that may be encountered.


You can also find the ODW-730-F2, ODW-710-F1, and ODW-720-F1 models in the Fiber Optic Modems.


Enjoy the ease of online inquiries for the Westermo ODW-730-F1 Serial to Fiber Converter. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

converter : Interface
100Mb Fiber optic single mode (Megabit) Ports No
100Mb Fiber optic multi mode (Megabit) Ports No
Serial port Yes : 1 x RS-422/485 port (4-position detachable screw terminal)
USB No
Other ports Yes : 1 x 100 Mbit/s SFP Slot (LC connector)
Isolation Yes : To power and status ports
converter : Converter specifications
Data transfer speed ( Baudrate ) 300 bit/s – 1.5 Mbit/s
Maximum data transmission distance Up to 120 km (depending on SFP module and fiber type)
Minimum output power converter -
Sensitivity to receiving information -
Wavelength -
Require cable diameter -
Flow Control -
Protocols Start-bit followed by 8-11 bits
converter : Serial Signals
RS-232 Signals -
RS-422 Signals -
RS-485-2w Signals -
RS-485-4w Signals -
converter : Power Requirements
Power Consumption (Output Adapter) -
Power Input Plugin ( Redundant ) Yes
Overload Current Protection Supported
Reverse Polarity Protection Supported
Input Voltage 12 to 48 VDC and 24 VAC
Input Current 300 mA @ 12 VDC, 150 mA @ 24 VDC, 75 mA @ 48 VDC
Connector Detachable screw terminal
converter : General
Fan / Fanless Fanless
MTBF MIL HDBK-217K: 500,000 hours
converter : Physical Characteristics
Dimensions 34 x 122 x 123 mm (1.34 x 4.80 x 4.84 inches)
Housing PC/ABS
Installation Din-rail mounting
Operating Temperature -40 to +70°C (-40 to +158°F)
Operation Humidity 5-95% relative humidity
Standards and Certifications EMC: EN/IEC 61000-6-1, Immunity residential environments, EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-3, Emission residential environments, EN/IEC 61000-6-4, Emission industrial environments; Trackside: EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus; Marine: DNV rules for classification - Ships and offshore units; Safety: UL/CSA 60950-1, IT equipment; IP21; MIL-HBDK-217F; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27
Storage Temperature -40 to +70°C (-40 to +158°F)
Weight 260 gr
converter : LED Indicators
LED Per Port Yes
Power Yes
