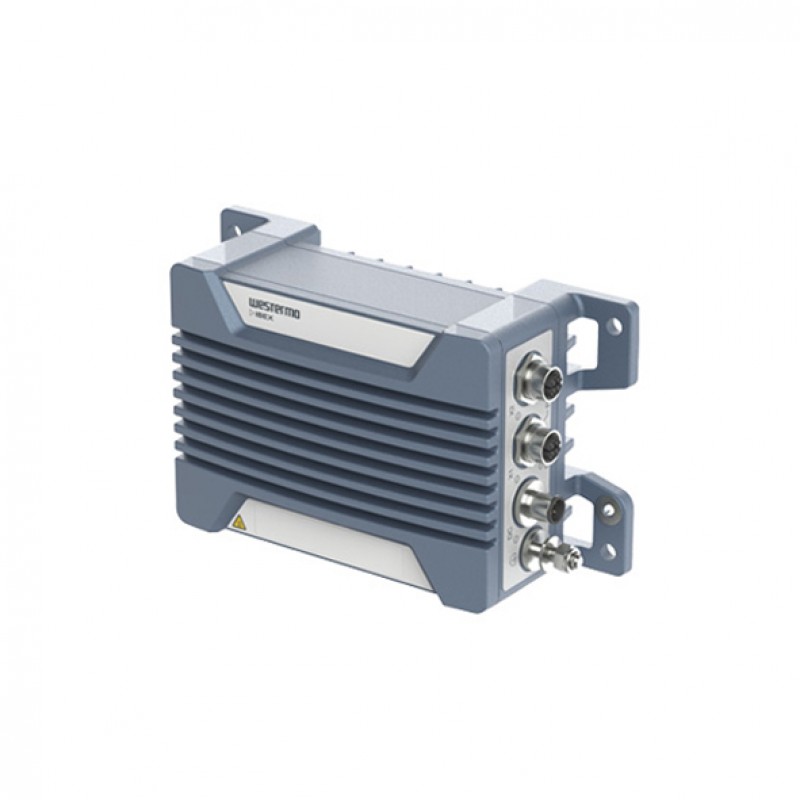

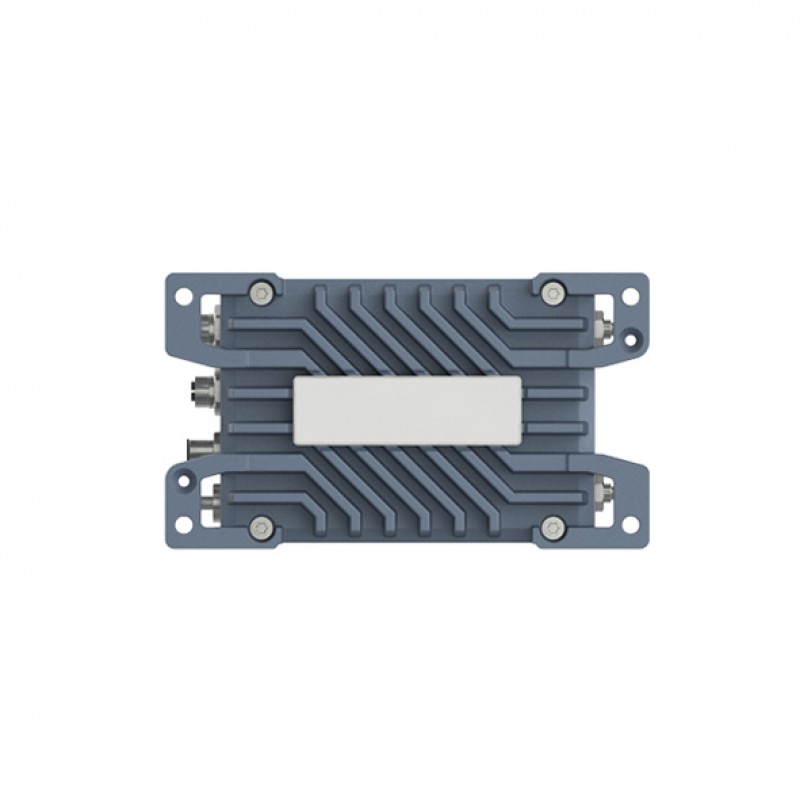

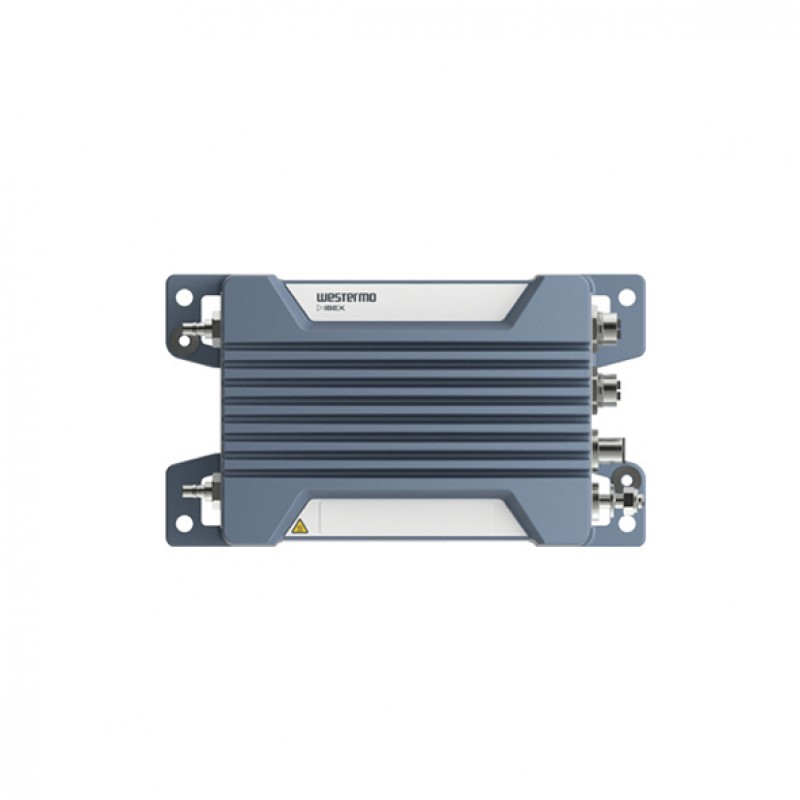

Westermo Ibex-1510-T2G2.5 NA Industrial Wi-Fi 6 Access Point
- Supports North America Frequency Bands
- Dual Wi-Fi 6 802.11ax WLAN interfaces
- 2 x 10/100/1000/2.5G Base-T Ethernet ports (M12 connector)
- IEEE 802.11ax support for maximum efficiency
- 24 to 110 VDC dual power inputs
- IP66-rated Metal body material
- Screw mount installation design
- -40 to +70°C operating temperature range
.png)
Description
The Ibex-1510 is a concurrent dual-band 802.11ax WLAN access
point and client product for onboard and stationary applications. It provides
reliable efficient high-speed data transfers and can be used for maintenance
access, as part of a TCMS network, or as a passenger hotspot. The Ibex-1510 is
designed to withstand the tough environment on-board trains, exposed to
constant vibration, extreme temperatures, humidity, and a demanding
electromagnetic environment.
A GORE-TEX® membrane prevents internal condensation.
High-level isolation between all interfaces enables direct connectivity to
vehicle auxiliary power and protects against overvoltage and spikes/surges. IP66
protection prevents the ingress of water and dust even at the quick-connect QMA
connectors.
An overall optimized design results in a compact form factor
in combination with very high MTBF for easy integration in space-restricted
installations and low lifecycle cost. Thorough type testing at independent labs
certifies compliance with a wide range of standards, including EN 50155 and
EN50121-4. Powered by the SW6 operating system, the Ibex-1510 is equipped with
the latest cybersecurity features and updates.
You can also find the Ibex-1510-T2G2.5 EU, Ibex-1510-T2G2.5-PoE EU, and Ibex-1510-T2G2.5-PoE NA models in the WLAN.
Easy World Automation offers the easiest way to buy the Westermo Ibex-1510-T2G2.5 NA Industrial Wi-Fi 6 Access Point in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| Interfaces | |
|---|---|
| 10/100/1000BaseT(X) Ports | : 2 x 10/100/1000/2.5G Base-T Ports, 2 x M12 X-coded connectors |
| Modulation Type | - |
| Frequency Band | 2.400 to 2.4835 GHz (2x2 MU-MIMO), 5.150 to 5.350 GHz, 5.470 to 5.725 GHz, 5.725 to 5.875 GHz (2x2 MU-MIMO) |
| PoE Ports | |
| 100BaseFX Ports | |
| Wireless Security | WPA2-Personal (CCMP), WPA2-Enterprise, WPA3-Personal (SAE/OWE), WPA3-Enterprise (Suite-B), 802.11w, 802.1X, SecureBoot (TPM), Security Log (persistent) |
| WLAN Antenna Connector | 2 x QMA compatible antenna connector for Wi-Fi 6 2.4 Ghz and 5 GHz (combiner) |
| Security | VPN: SSL Server/Client, IPsec, OpenVPN Client, Wireguard, GRE/GRETAP, VXLAN |
| WLAN Operation Mode | Access Point, Client, Bridge |
| WLAN Standards | IEEE 802.11g, 802.11a, 802.11n, 802.11ac, 802.11ax |
| 1000BaseSFP Slots | |
| Transmission Rates | 2.4 GHz: Up to 802.11ax 40 MHz 2SS BW HE11: 573 MBit/s, 5 GHz: Up to 802.11ax 80 MHz 2SS BW HE11: 1201 MBit/s |
| 10/100BaseT(X) Ports | |
| Digital Inputs | |
| Console Port | |
| Serial Ports | |
| M12 Connector | |
| Power Requirement | |
| Input Current | - |
| Connector | M12 A-coded male |
| Input Voltage | 24 to 110 VDC |
| Power Consumption | 14 W |
| Reverse Polarity Protection | Supported |
| Physical Characteristics | |
| Humidity | 5-95% relative humidity |
| Dimensions Packaged | 195 x 70 x 111 mm (7.68 x 2.76 x 4.37 inches) |
| Weight (PACKAGED) | 1.45 kg without antennas |
| Housing | Full metal |
| Installation | Screw mounting |
| Standards and Certifications | Ingress protection: IP66; Climate: EN 50155, class OT4 Railway applications - Electronic equipment used on rolling stock; EMC: EN 50155, Railway applications - Electronic equipment used on rolling stock, EN 50121-3-2, Railway applications – Electromagnetic compatibility, Part 3-2: Rolling stock – Apparatus, ETSI EN 301 489-1, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment and services - Part 1: Common technical requirements, ETSI EN 301 489-17, Electromagnetic compatibility (EMC) and Radio spectrum Matters (ERM) for radio equipment - Part 17: Specific conditions for Broadband Data Transmission Systems; Mechanical (Shock and vibration): EN 61373, category 1, class B; Insulation (Coordination and test): EN 50155, Railway applications - Electronic equipment used on rolling stock; Radio communication: ETSI EN 300 328, Wideband transmission systems; Data transmission equipment operating in the 2.4 GHz ISM band and using wide band modulation techniques, ETSI EN 301 893, 5 GHz RLAN, ETSI EN 300 440, 5.8GHz, Short Range Devices, IEEE802.11, Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications; Safety: EN/IEC 61010-1, Safety requirements for electrical equipment for measurement, control, and laboratory use, EN 45545-2, Fire protection on railway vehicles; Shock: IEC 60068-2-27, IEC 61373, MIL-STD-810G; Vibration: IEC 60068-2-64, IEC 61373 |
| Operating Temperature | -40 to +70°C (-40 to +158°F) |
| Storage Temperature | -55 to +85°C (-67 to +185°F) |
| General | |
| Management | SNMP v2c/v3 with USM authentication and encryption support, HTTP/HTTPS web interface and WebAPI with user authentication (local or LDAP), CLI (SSH and Telnet), Certificate Management (SCEP), Dual Firmware Primary/Backup |
| LED Indicators | : DC, ON, X1, X2 |
| MTBF | 424,000 hours |
| Time Management | - |
