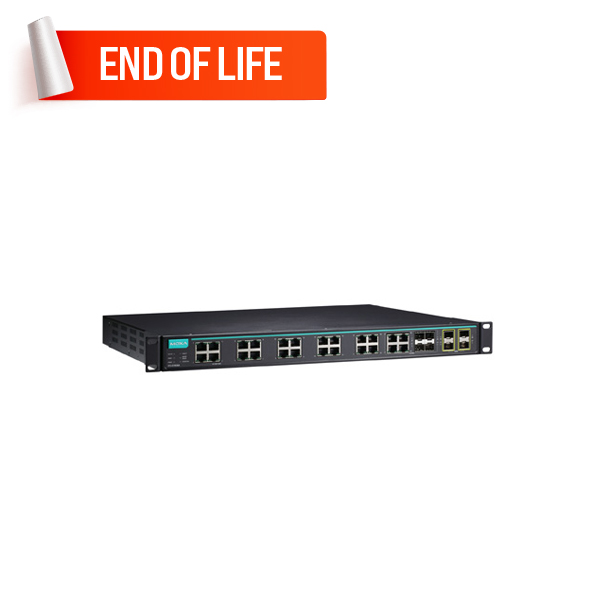

MOXA ICS-G7828A-4GTXSFP-4XG-HV-HV Rackmount Ethernet Switches

MOXA ICS-G7828A-4GTXSFP-4XG-HV-HV Rackmount Ethernet Switches
MOXA ICS-G7828A-4GTXSFP-4XG-HV-HV Rackmount Ethernet Switches
MOXA ICS-G7828A-4GTXSFP-4XG-HV-HV Rackmount Ethernet Switches
MOXA ICS-G7828A-4GTXSFP-4XG-HV-HV Rackmount Ethernet Switches
MOXA ICS-G7828A-4GTXSFP-4XG-HV-HV Rackmount Ethernet Switches
  • Layer 3 switching functionality
  • 20 x 10/100/1000BaseT(X) Ports
  • 4 Gigabit Combo ports, 4 x 10Gb SFP+ slots
  • Rackmount installation design
  • 100 to 240 VAC dual power inputs
  • IP30-rated Metal body design
  • -40 to 75°C operating temperature
  • Brand: MOXA
  • Model: ICS-G7828A-4GTXSFP-4XG-HV-HV
0 reviews • Write a review
Datasheet
  • Operating Temperature (-10 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
  • IP protection (IP30)
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 3 Managed Switches , Layer 3 Switches , Managed Switches , Rackmount Switches , Rackmount Ethernet Switches , Industrial Ethernet Switches , Industrial Data Communications , Railway Transportation Products , Switches , MOXA ICS-G7828A Series

Process and transportation automation applications combine data, voice, and video, consequently requiring high performance and reliability. The ICS-G7828A Series has 24 Gigabit Ethernet ports plus up to 4 10 Gigabit Ethernet ports. It supports Layer 3 routing functionality to facilitate the deployment of applications across networks, making them ideal for large-scale industrial networks.

The ICS-G7828A’s full Gigabit capability increases bandwidth to provide high performance and the ability to quickly transfer large amounts of video, voice, and data across a network. The fanless switches support the Turbo Ring, Turbo Chain, and RSTP/STP redundancy technologies, and come with an isolated redundant power supply to increase system reliability and the availability of your network backbone.


You can also find the ICS-G7828A-20GSFP-4XG-HV-HV-T, ICS-G7828A-8GSFP-4XG-HV-HV-T, and ICS-G7828A-4XG-HV-HV-T models in the Rackmount Ethernet Switches.


Inquire about the MOXA ICS-G7828A-4GTXSFP-4XG-HV-HV Rackmount Ethernet Switches, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports 28 Ports
10/100Mb RJ45 (Megabit) Ports No
10/100/1000Mb RJ45 (Gigabit) Ports Yes : 20 Ports
100Mb Fiber optic multi mode (Megabit) Ports No
100Mb Fiber optic single mode (Megabit) Ports No
100Mb SFP Fiber optic (Megabit) Ports No
1000Mb SFP Fiber optic (Gigabit) Ports No
10/100Mb (Megabit) POE Ports No
10/100/1000Mb (Gigabit) POE Ports No
Other ports Yes : 4 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+), 4 x 10Gb SFP+ slots, 1 x USB Port (Type A connector), 1 x Console Port (Type B connector), 1 x Alarm Contact Channel, 1 x Digital Input (+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA)
switch and hub : Features and capabilities
Backup Yes
switch and hub : LED Indicators
LED Per Port No
switch and hub : Power Requirements
Input Current 0.99/0.65 A @ 110/220 VAC
Power Input Plugin ( Redundant ) Yes
Input Voltage 100 to 240 VAC
Operating Voltage 85 to 264 VAC
Power Consumption -
switch and hub : General
Fan / Fanless Fanless
MTBF 411,819 hrs
switch and hub : Switch specifications
Most forwarding speed -
Network working layers Layer 3
Switch type Managed
Port Aggregation Yes
switch and hub : Physical Characteristics
Dimensions 440 x 44 x 386.9 mm (17.32 x 1.73 x 15.23 in)
Housing Metal
Installation Rack mounting
Operating Temperature -10 to 60°C (14 to 140°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications Safety: EN 60950-1, UL 60950-1; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 5500 g (12.14 lb)
switch and hub : Standards and protocols
Protocols and work standards Link Aggregation, MSTP, RSTP, Turbo Chain, Turbo Ring v1/v2, V-ON, EtherNet/IP, Modbus TCP, PROFINET
Protocols and management standards ARP, Back Pressure Flow Control, BOOTP, DDM, DHCP Option 66/67/82, DHCP Server/Client, IPv4, LLDP, Port Mirror, RMON, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, SMTP, RARP, Flow control, 802.1Q, GMRP, GVRP, IGMP v1/v2/v3, QinQ VLAN
switch and hub : Package Checklist
Hardware installation guide Yes
Power adapter No
Power cable No
